Ignition System for 1GR-FE: Notes

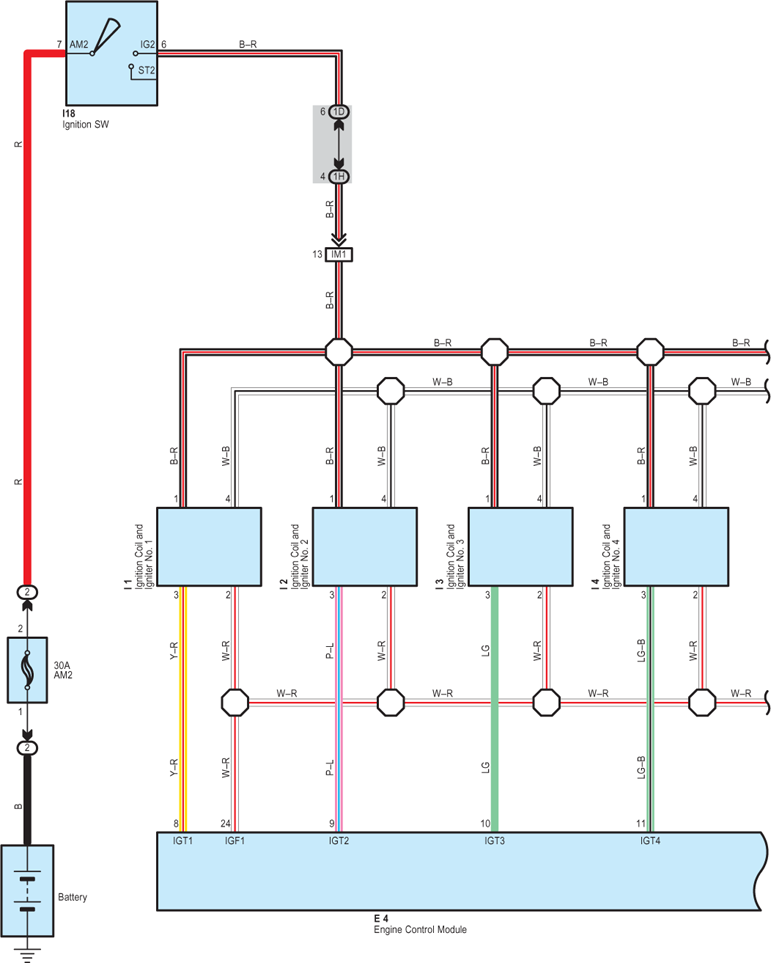

Fig 1: Ignition For 1GR-FE - Circuit Diagram (1 Of 2)
G07623292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

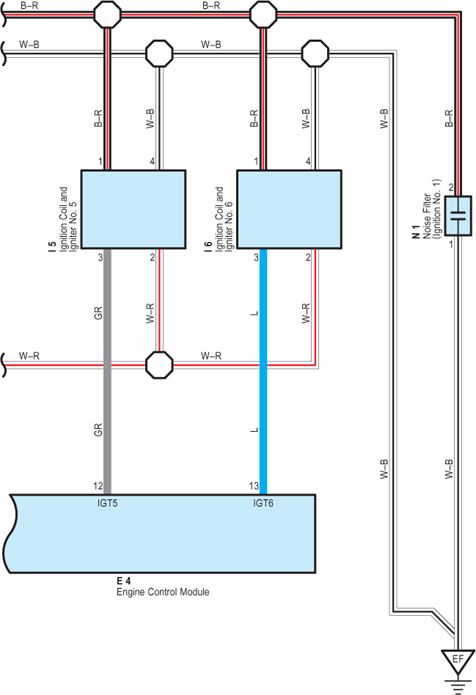

Fig 2: Ignition For 1GR-FE - Circuit Diagram (2 Of 2)
G07623293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
