Automatic Light Control System: Notes

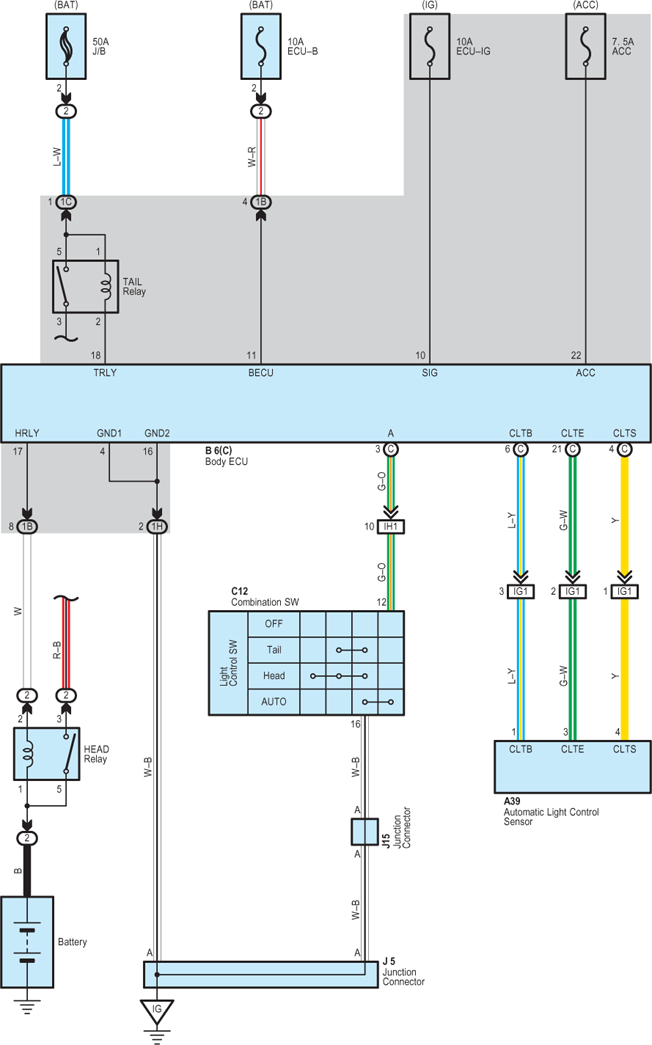

Fig 1: Automatic Light Control - Circuit Diagram

G07623346

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
