LEMON Manuals
: Even more car manuals for everyone
Home
>>
Toyota
>>
2008
>>
4Runner Sport, 4.7 T, RWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Windshield/Window Glass
>>
Window Defogger System
>>
Parts Location
Parts Location

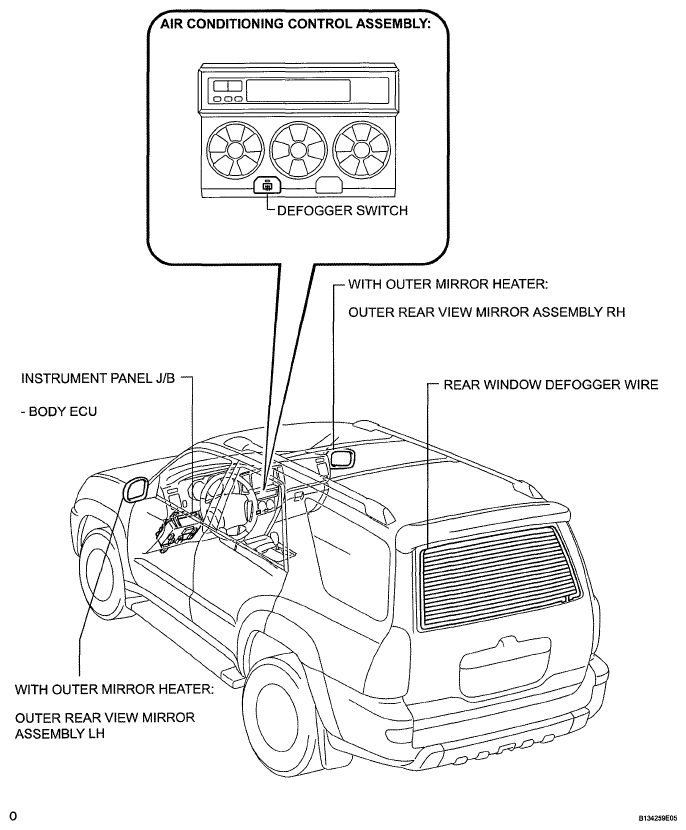

Fig 1: Identifying Window Defogger System Parts Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

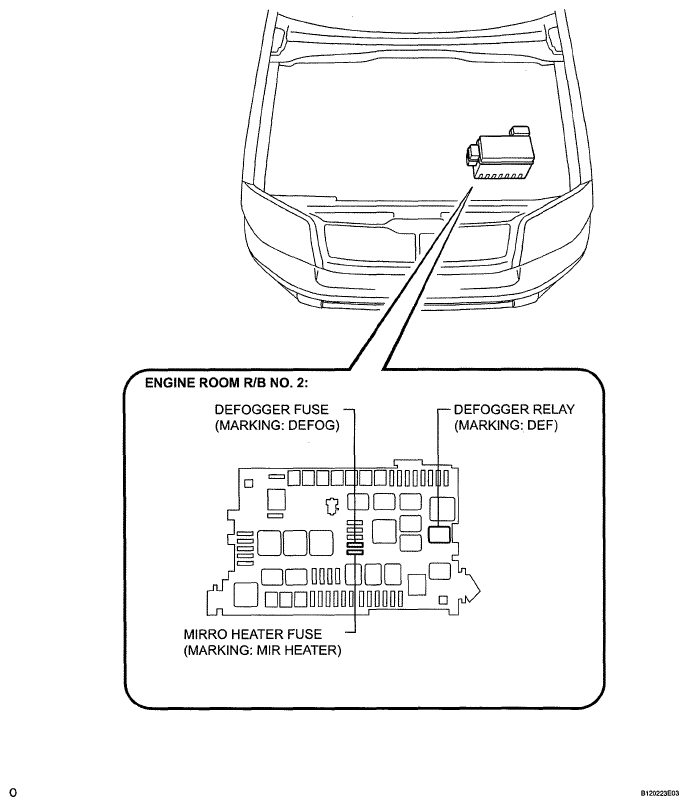

Fig 2: Identifying Window Defogger System Parts Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
