Rear Lower Control Arm: Installation

INSTALL LOWER CONTROL ARM ASSEMBLY LH
1. Install the lower control arm assembly, temporarily tighten the nut, washer and bolt.
2. Install the rear axle housing, temporarily tighten the bolt, washer and nut.

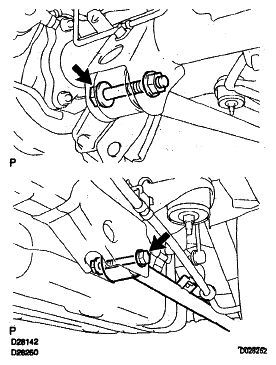

  Fig 1: Locating Rear Axle Housing Bolt, Nut And Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT PARKING BRAKE CABLE ASSEMBLY NO. 3
1. Connect the parking brake cable assembly No. 3 with the bolt.
  Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)
INSTALL REAR WHEEL
Torque: 112 N*m (1, 137 kgf*cm, 83 ft.*lbf)
STABILIZE SUSPENSION (See INSTALLATION )
FULLY TIGHTEN LOWER CONTROL ARM ASSEMBLY LH
1. Fully tighten the 2 bolts.
  Torque: 130 N*m (1, 326 kgf*cm, 96 ft.*lbf)

  HINT:

  While fixing the nut, turn and remove the bolt.

  Fig 2: Locating Lower Control Arm Assembly LH Bolts And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
