Rear Lower Control Arm: Components

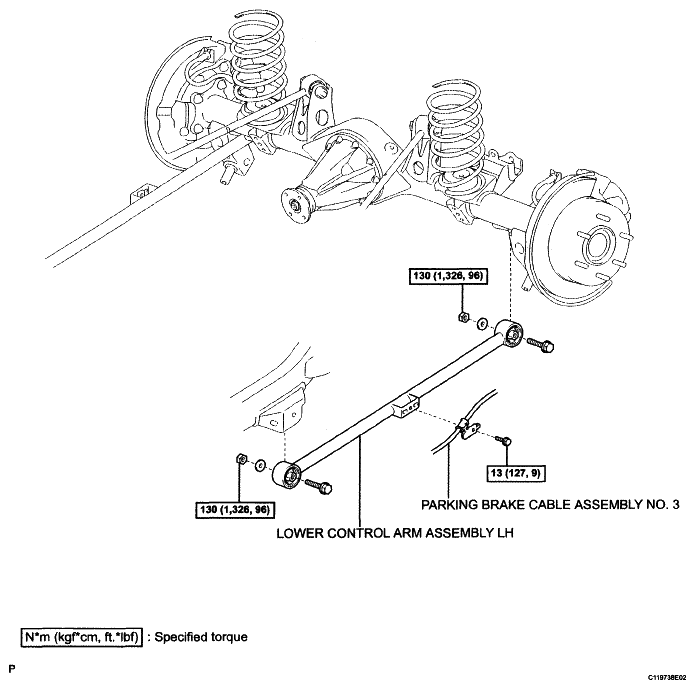

Fig 1: Rear Lower Control Arm Replacement Components With Torque Specifications

G04964660

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
