Rear Lateral Control Rod: Components

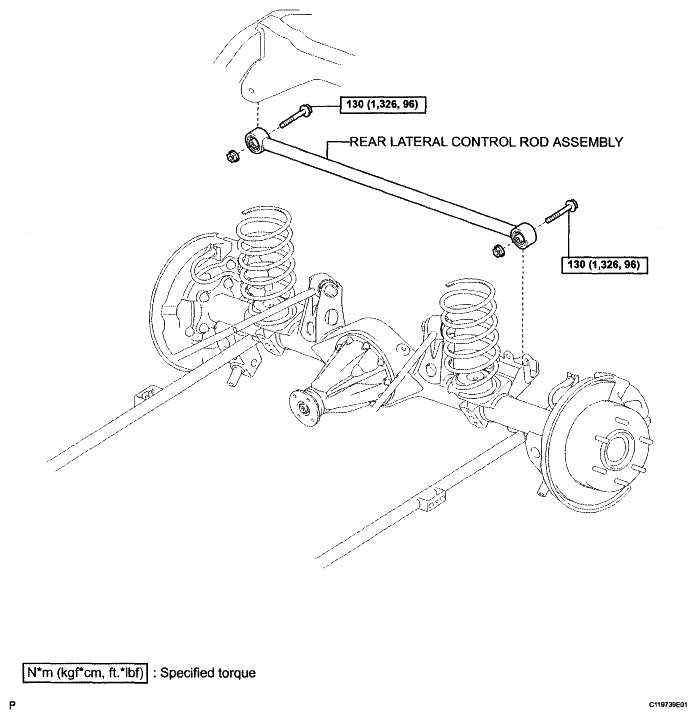

Fig 1: Locating Rear Lateral Control Rod Components With Torque Specifications

G04964665

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
