Home >> Toyota >> 2008 >> 4Runner Sport, 4.7 T, AWD >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Suspension System >> Rear Coil Spring >> Components

Rear Coil Spring: Components

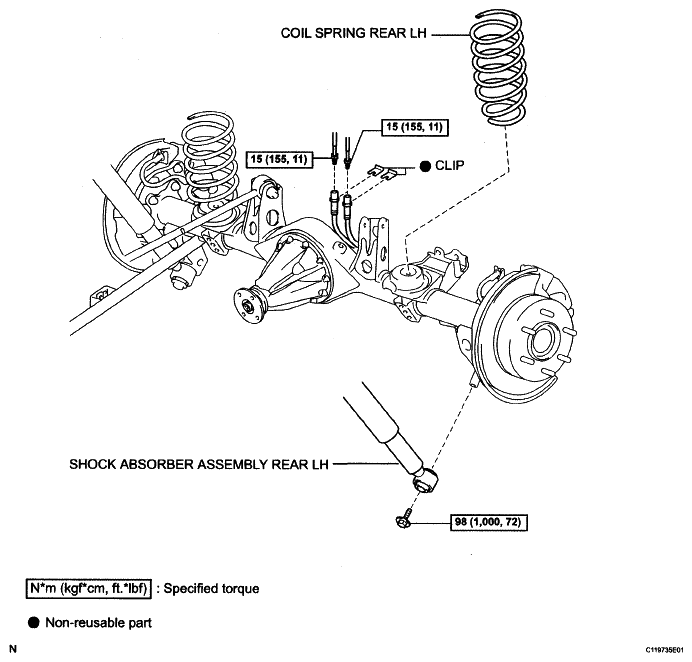

Fig 1: Rear Coil Spring Replacement Components With Torque Specifications

G04964623

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
