Front Seat Inner Belt Assembly: Components

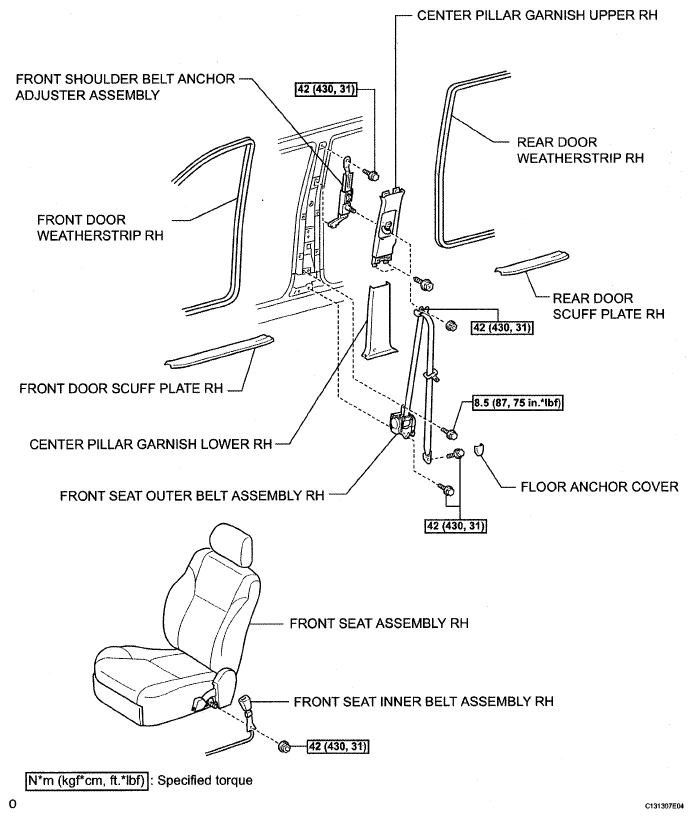

Fig 1: Front Seat Inner Belt Assembly Replacement Components With Torque Specifications

G04966148

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
