Inspection Procedure

NOTE: When replacing the master cylinder solenoid, perform zero point calibration (See CALIBRATION ).

INSPECT VSC OFF INDICATOR LIGHT
1. Disconnect the skid control ECU connector.
2. Ground terminal WT of the skid control ECU.
3. Turn the ignition switch to the ON position.
4. Check that the VSC OFF indicator light comes on.
  OK: VSC OFF indicator light comes on.
OK: REPLACE MASTER CYLINDER SOLENOID (See DISASSEMBLY )

NG: Go To Next Step
CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - 4WD CONTROL ECU TRANSFER SHIFT ACTUATOR) (See DTC C1380/64: STOP LIGHT CONTROL RELAY MALFUNCTION )
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go To Next Step
CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - VSC OFF SWITCH) (See VSC OFF INDICATOR LIGHT DOES NOT COME ON )
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go To Next Step
INSPECT VSC OFF SWITCH (See VSC OFF INDICATOR LIGHT DOES NOT COME ON )
NG: REPLACE VSC OFF SWITCH (See REMOVAL )

OK: Go To Next Step

CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - COMBINATION METER)

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION AND SPECIFIED CONDITION TABLE

Tester Connection	Condition	Specified Condition
S28-36(VSCW) - C10-17	Always	Below 1 Ω
S28-36 (VSCW) - Body ground	Always	10 kΩ or higher

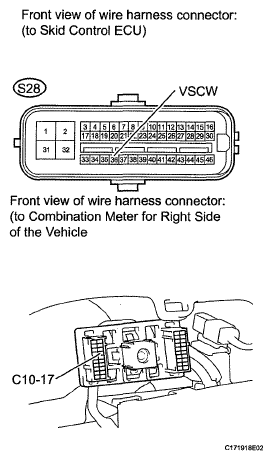

Fig 1: Identifying Harness Connector (Skid Control ECU - Combination Meter)

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go To Next Step

INSPECT COMBINATION METER ASSEMBLY
1. Check the combination meter system (See HOW TO PROCEED WITH TROUBLESHOOTING ).
NG: REPLACE COMBINATION METER ASSEMBLY

OK: CHECK FOR INTERMITTENT PROBLEMS (See CHECK FOR INTERMITTENT PROBLEMS )
