Steering Angle Sensor: Components

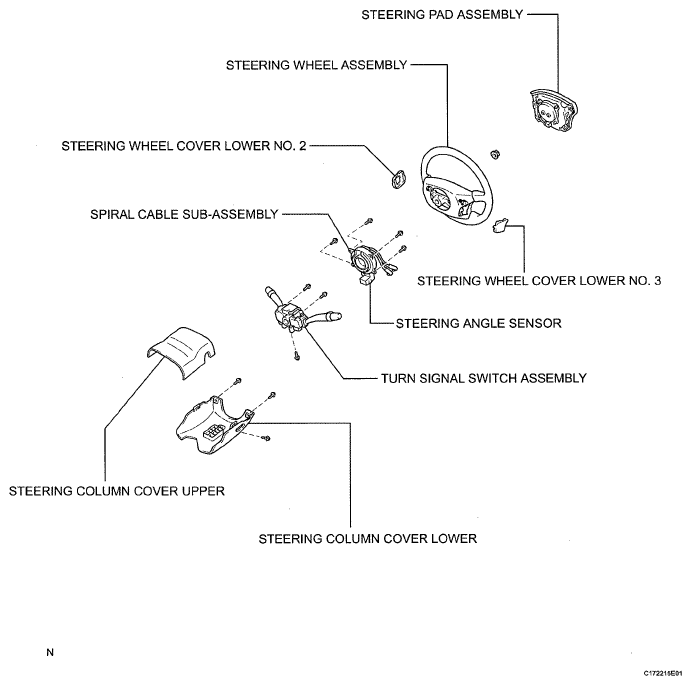

Fig 1: Identifying Steering Angle Sensor Components

G05556639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
