Power Windows do not Operate at All: Wiring Diagram

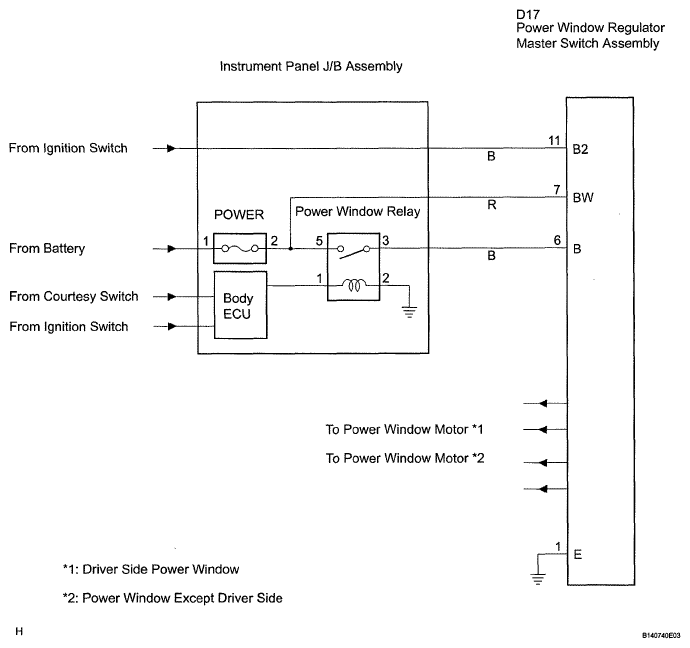

Fig 1: Identifying Power Windows Do Not Operate At All - Wiring Diagram

G05557512

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
