Manual Up / Down Function Via Back Door Lock Key Cylinder does not Operate: Wiring Diagram

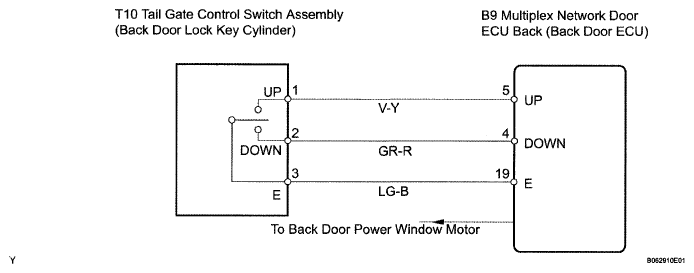

Fig 1: Identifying Tail Gate Control Switch Assembly Wiring Diagram
G04967145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
