DTC B2221 Jam Protection Pulse Sensor Circuit on Back Door: Wiring Diagram

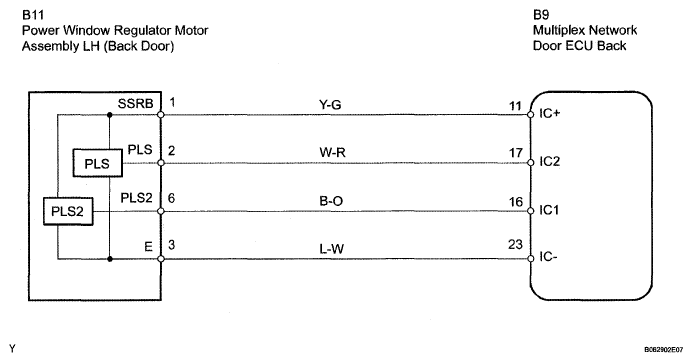

Fig 1: Identifying Power Window Regulator Motor Assembly LH (Back Door) Wiring Diagram
G04967111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
