Rear Stabilizer Bar: Components

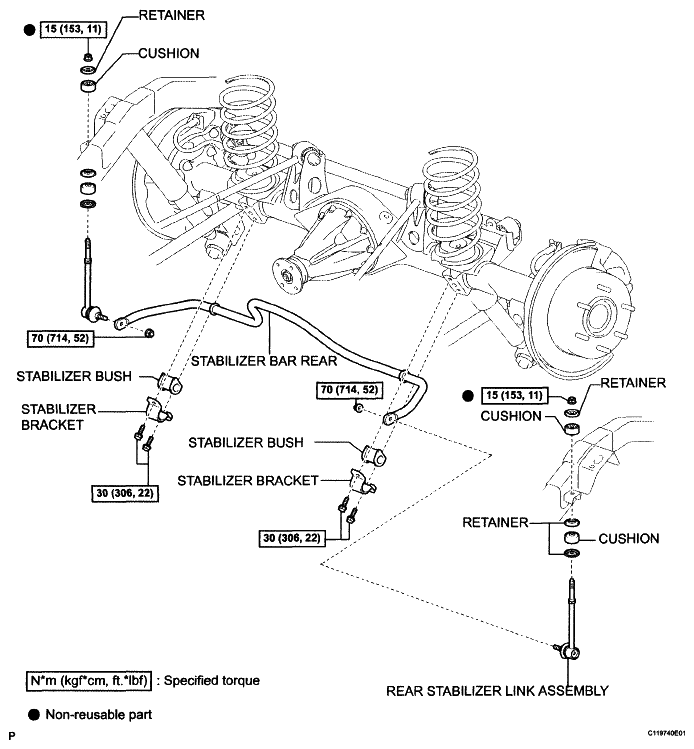

Fig 1: Rear Stabilizer Bar Replacement Components With Torque Specifications

G04964671

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
