ECM Power Source Circuit: Wiring Diagram

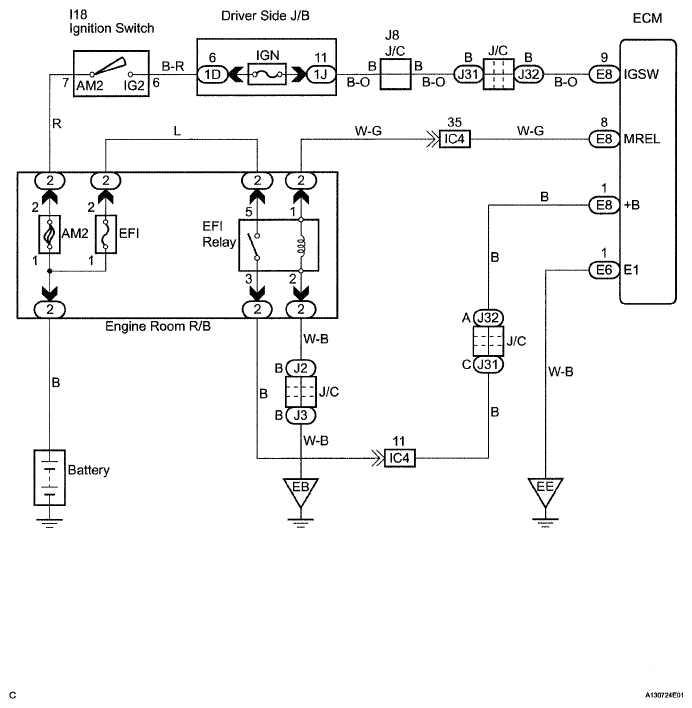

Fig 1: Identifying Ignition Switch Wiring Diagram
G04968169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
