Fuel Tank: Components

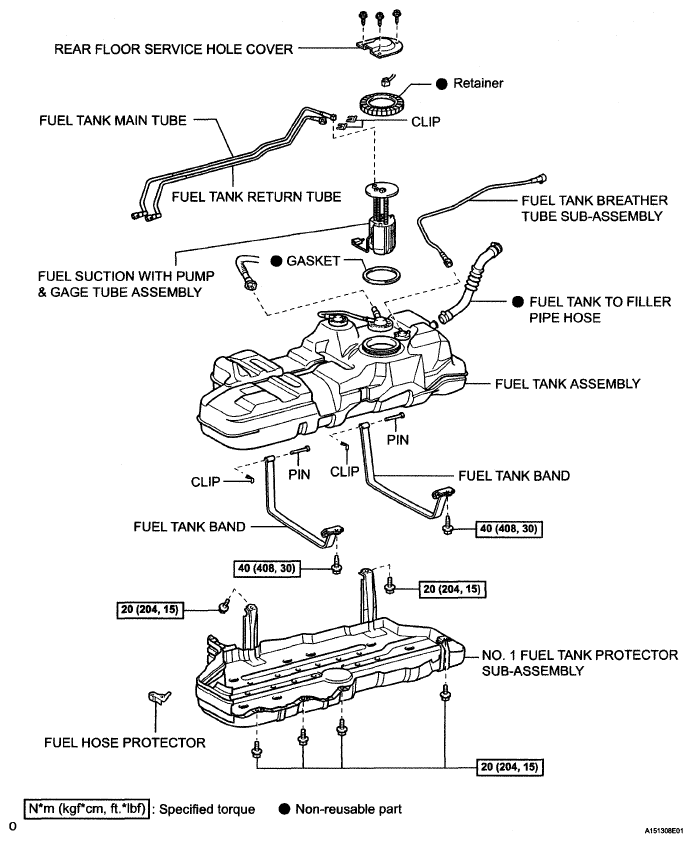

Fig 1: Fuel Tank Replacement Components With Torque Specifications

G04962582

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
