Turn Signal and Hazard Warning Light System without DRL: Notes

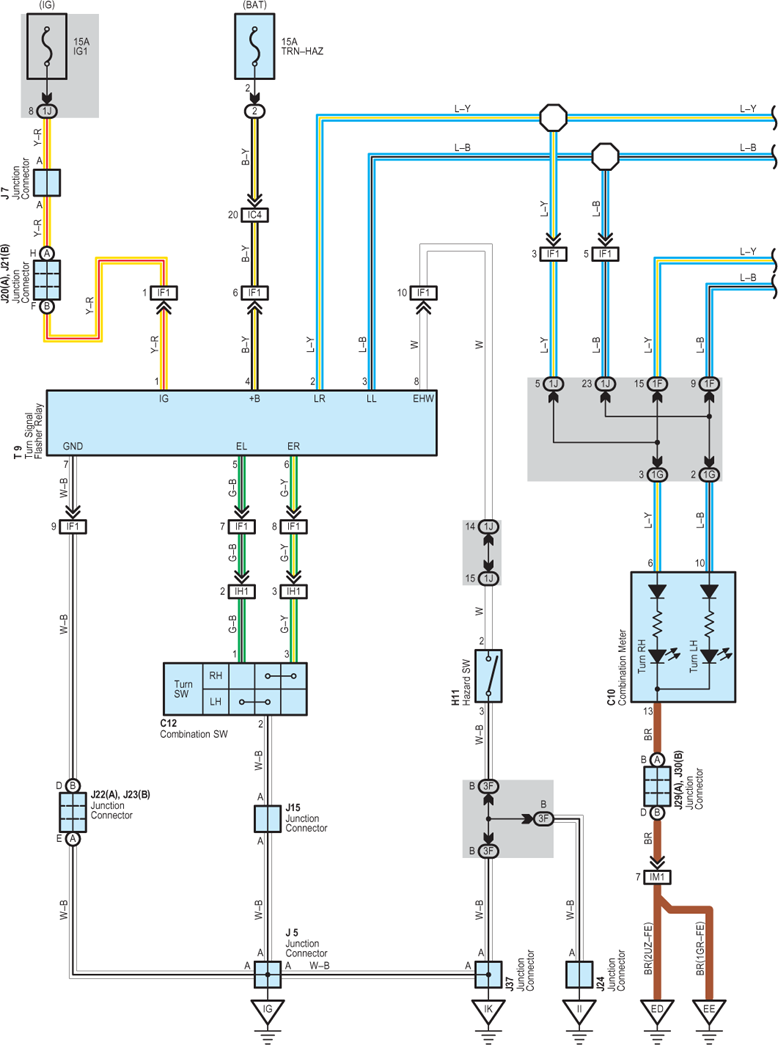

Fig 1: Turn Signal And Hazard Warning Light Without DRL - Circuit Diagram (1 Of 2)
G07623351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

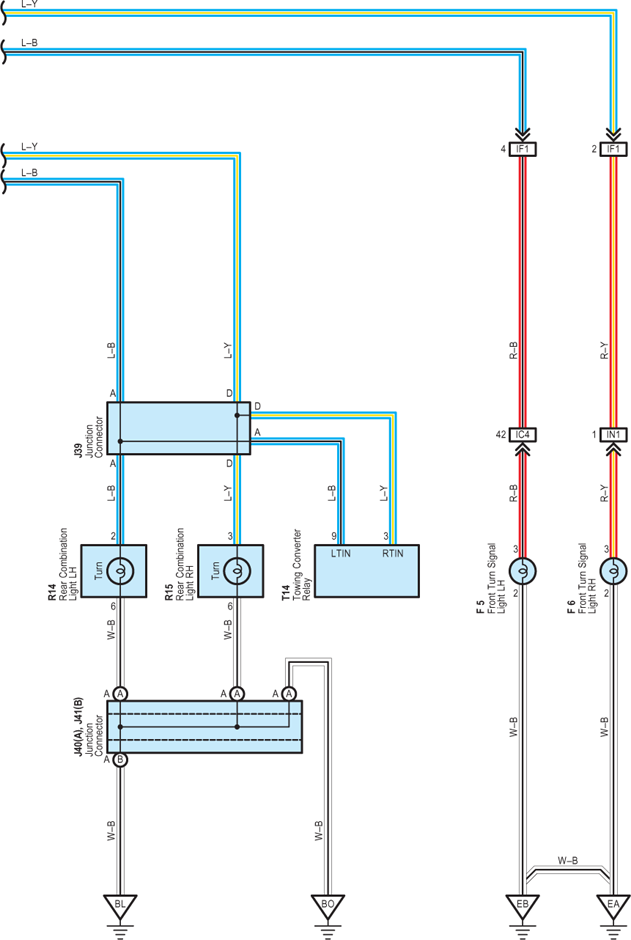

Fig 2: Turn Signal And Hazard Warning Light Without DRL - Circuit Diagram (2 Of 2)
G07623352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
