Seat Belt Warning System: Notes

Fig 1: Seat Belt Warning - Circuit Diagram (1 Of 2)
G07623367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

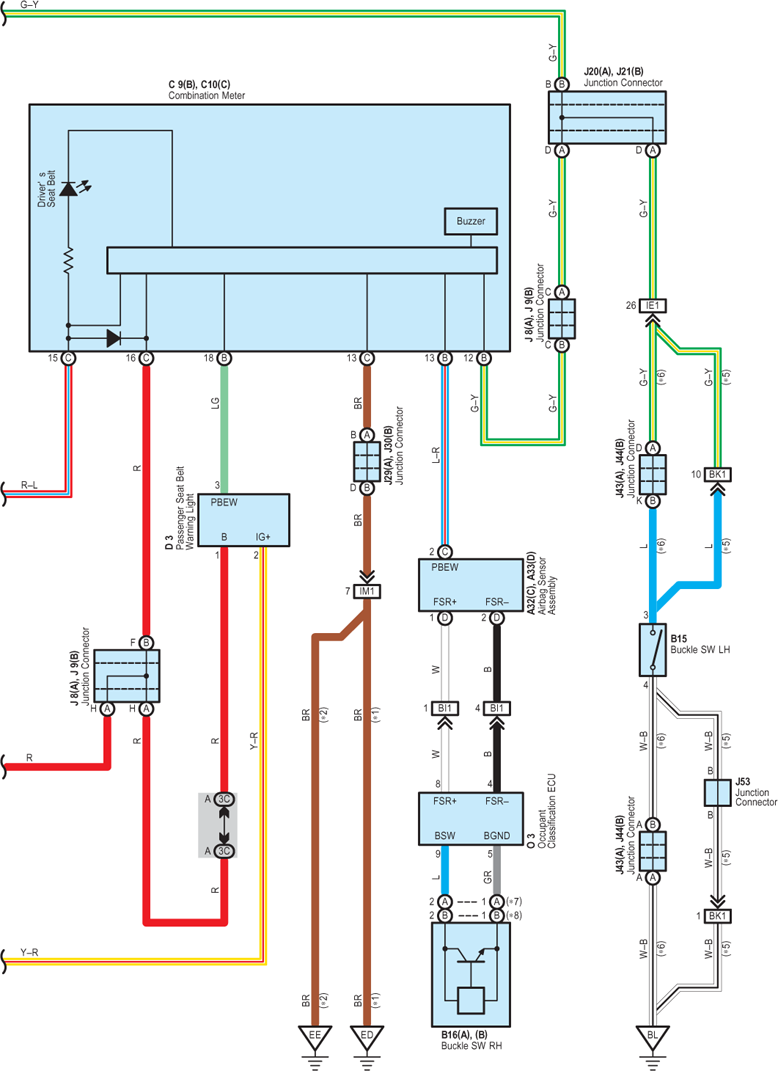

Fig 2: Seat Belt Warning - Circuit Diagram (2 Of 2)
G07623368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
