Audio System with 10 Speaker: Notes

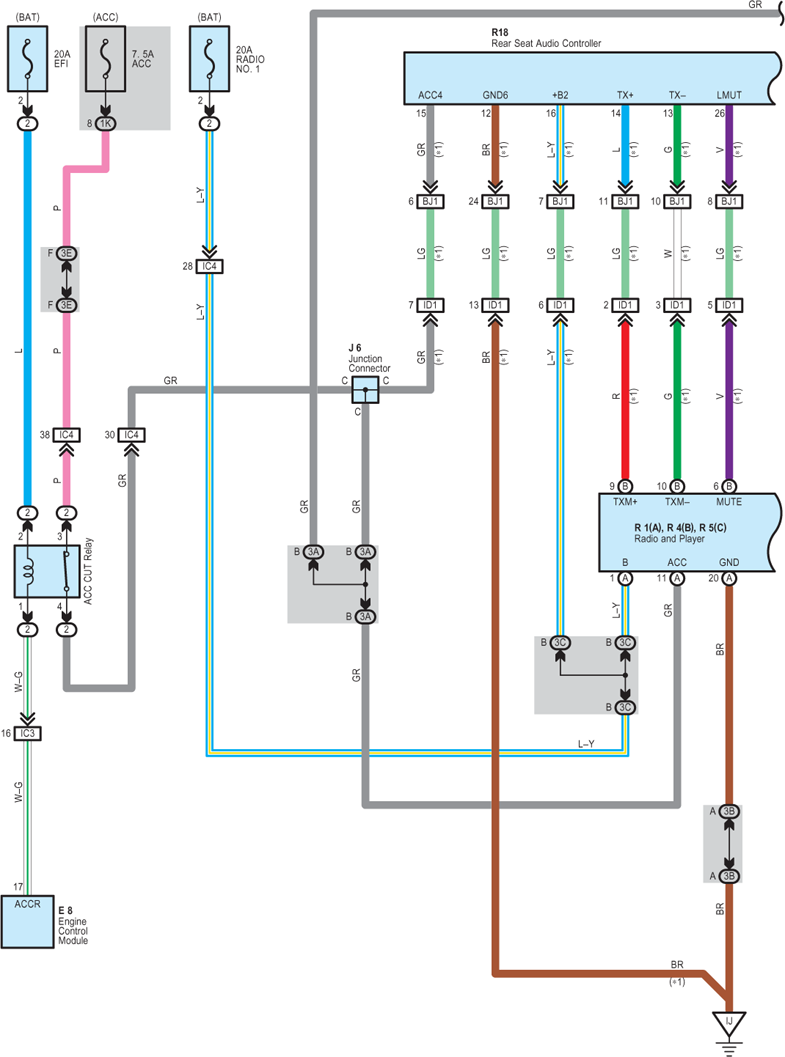

Fig 1: Audio System With 10 Speaker - Circuit Diagram (1 Of 5)
G07623472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

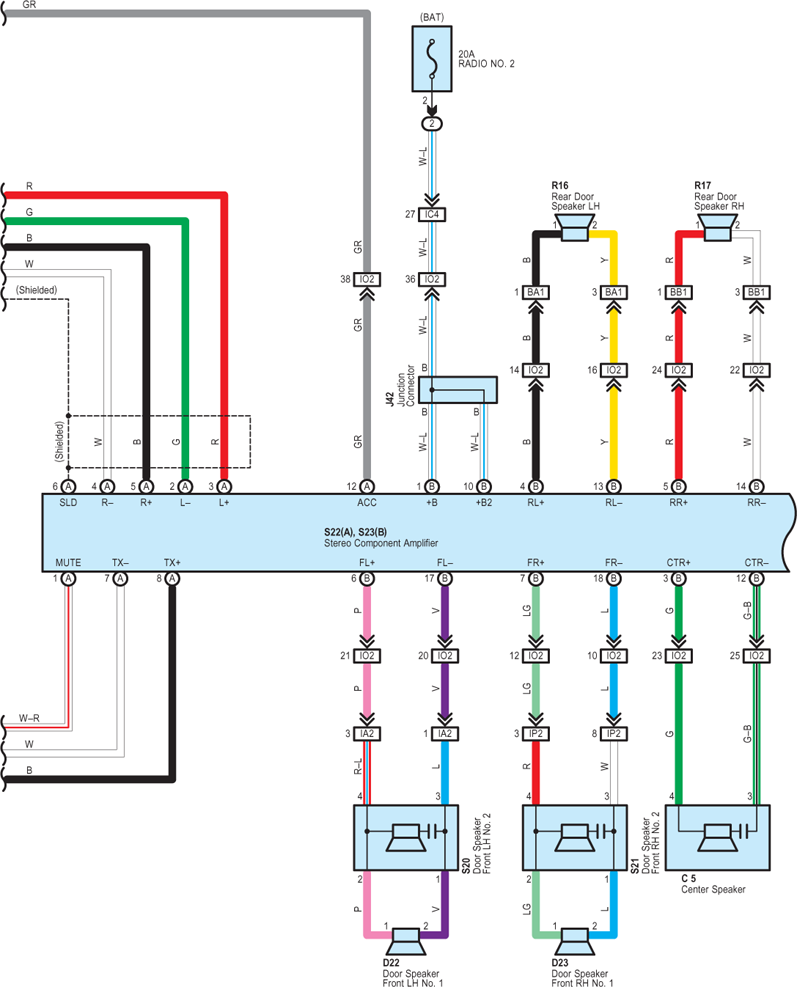

Fig 2: Audio System With 10 Speaker - Circuit Diagram (2 Of 5)
G07623473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

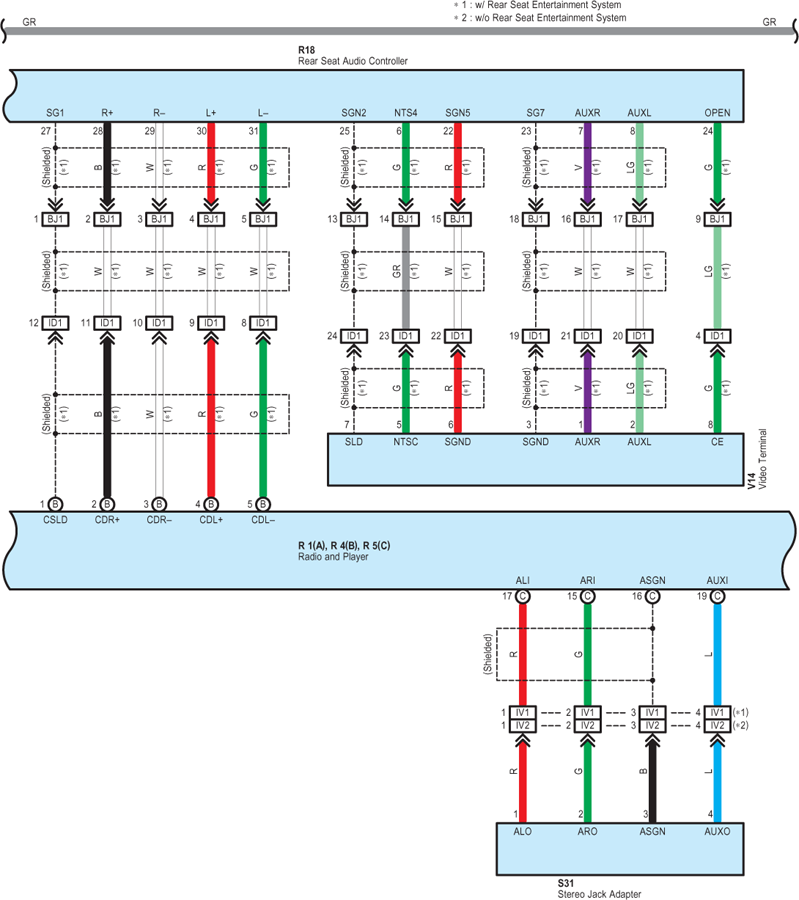

Fig 3: Audio System With 10 Speaker - Circuit Diagram (3 Of 5)
G07623474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

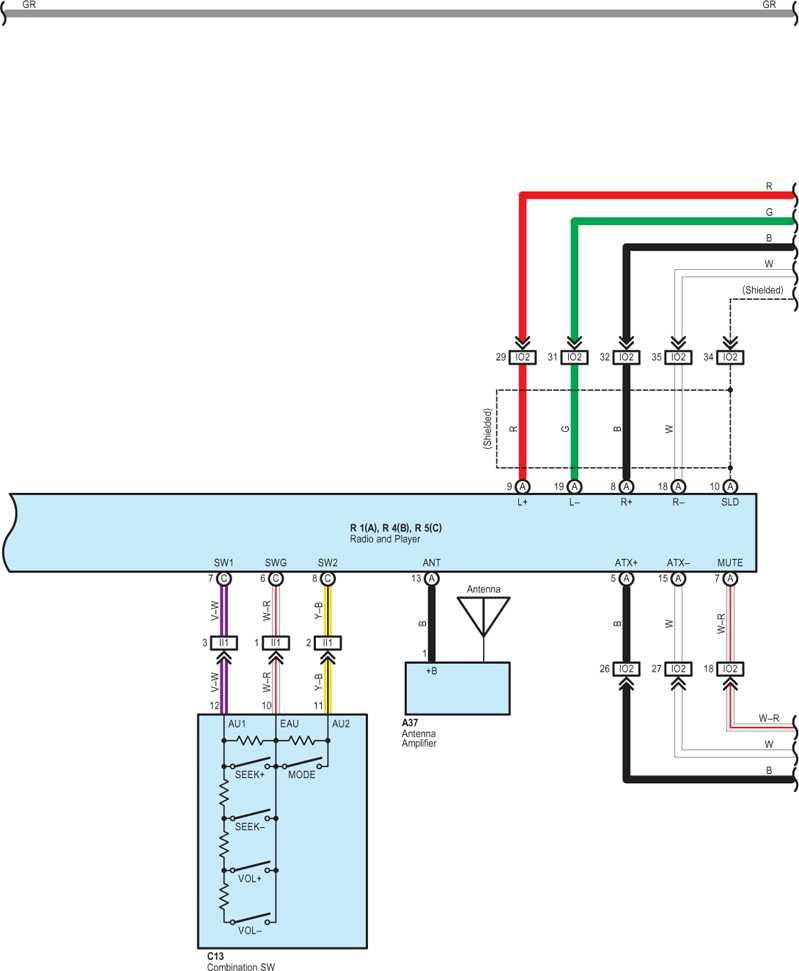

Fig 4: Audio System With 10 Speaker - Circuit Diagram (4 Of 5)
G07623475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

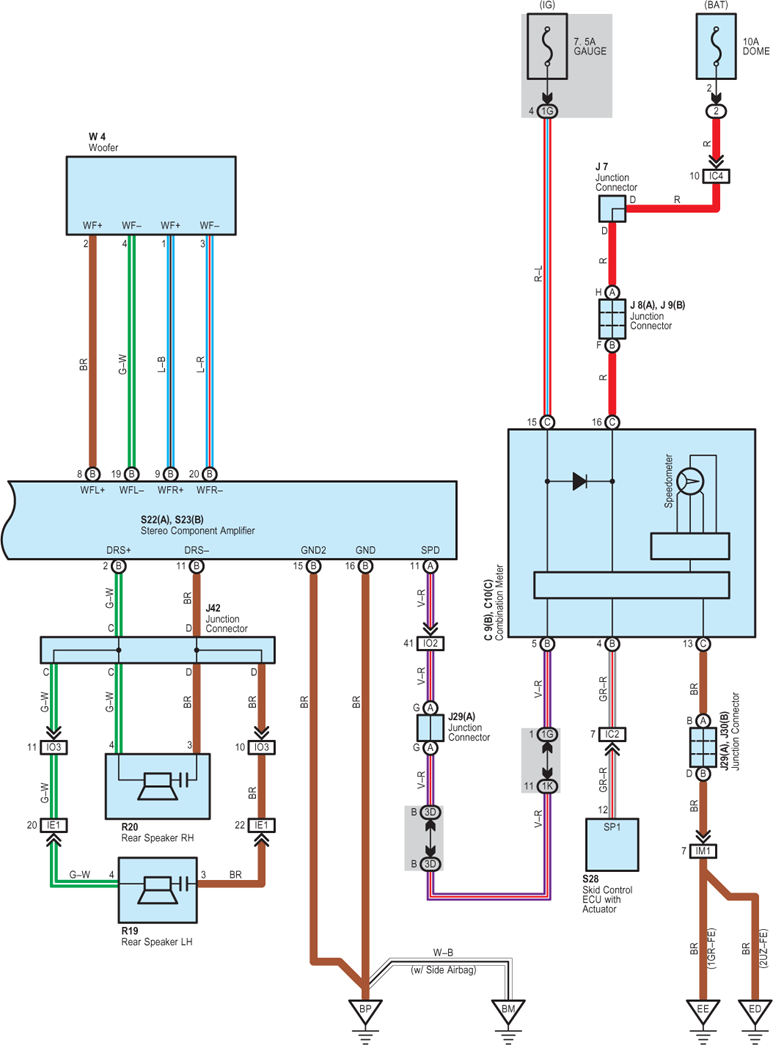

Fig 5: Audio System With 10 Speaker - Circuit Diagram (5 Of 5)
G07623476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
