Inspection Procedure

NOTE: When replacing the master cylinder solenoid, perform zero point calibration (See CALIBRATION  ).
  1. INSPECT IF SKID CONTROL ECU CONNECTOR IS SECURELY CONNECTED
    1. Check the skid control ECU connector's connecting condition.

      OK: The connector should be securely connected.

    NG: CONNECT CONNECTOR TO ECU

    OK: Go To Next Step

  2. INSPECT BATTERY
    1. Check the battery voltage.

      Standard voltage: 11 to 14 V

    NG: INSPECT CHARGING SYSTEM

    OK: Go To Next Step

  3. INSPECT SKID CONTROL ECU (IG1 TERMINAL)
    1. Disconnect the skid control ECU connector.
    2. Turn the ignition switch to the ON position.
    3. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      TESTER CONNECTION AND SPECIFIED CONDITION TABLE

      Tester Connection Condition Specified Condition
      S28-46 (IG1) - Body ground Always 10 to 14 V
      Fig 1: Identifying Skid Control ECU (IG1 Terminal)
      G05556521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (IG1 CIRCUIT)

    OK: Go to Next Step

  4. INSPECT SKID CONTROL ECU (GND TERMINAL)
    1. Disconnect the skid control ECU (S29) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION TABLE

      Tester Connection Condition Specified Condition
      S28-1 (GND1) - Body ground Always Below 1 Ω
      S28-32 (GND2) - Body ground Always Below 1 Ω
      S29-4 (GND3) - Body ground Always Below 1 Ω
      Fig 2: Identifying Skid Control ECU (S29) Connector
      G05556573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (GND CIRCUIT)

    OK: Go To Next Step

  5. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - COMBINATION METER)
    1. Disconnect the combination meter connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION TABLE

      Tester Connection Condition Specified Condition
      S28-29 (WA) - C11-4 Always Below 1 Ω
      S28-29 (WA) - Body ground Always 10 kΩ or higher

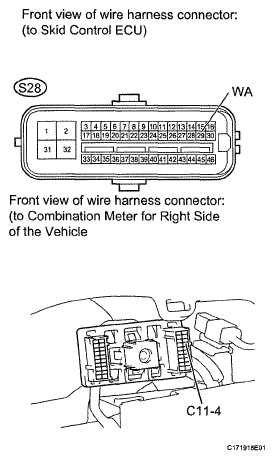

      Fig 3: Identifying Harness Connector (Skid Control ECU - Combination Meter)
      G05556574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go To Next Step

  6. INSPECT COMBINATION METER ASSEMBLY
    1. Check the combination meter system (See HOW TO PROCEED WITH TROUBLESHOOTING ).

    NG: REPLACE COMBINATION METER ASSEMBLY

    OK: REPLACE MASTER CYLINDER SOLENOID  (See DISASSEMBLY )
