Manual Up / Down Function does not Operate on Passenger Side Only: Wiring Diagram

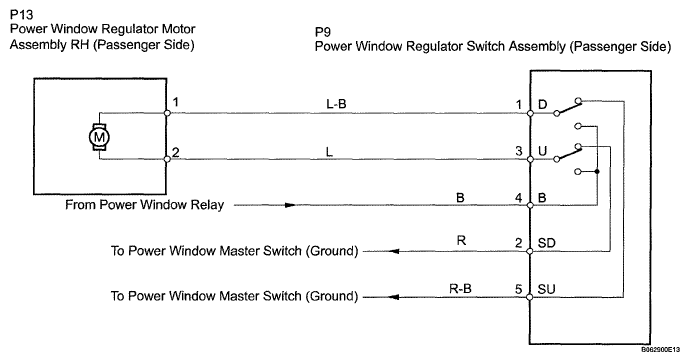

Fig 1: Identifying Manual Up / Down Function Does Not Operate On Passenger Side Only - Wiring Diagram
G05557497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
