Manual Up / Down Function does not Operate on Back Door Only: Wiring Diagram

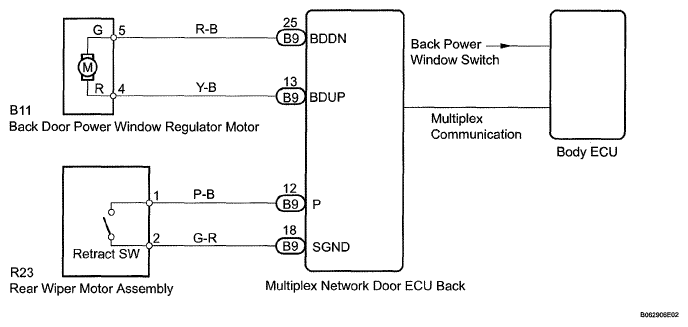

Fig 1: Identifying Manual Up / Down Function Does Not Operate On Back Door Only - Wiring Diagram
G05557492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
