Outer Rear View Mirror: Components

Fig 1: Identifying Outer Rear View Mirror Components (1 Of 2)
G04967191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

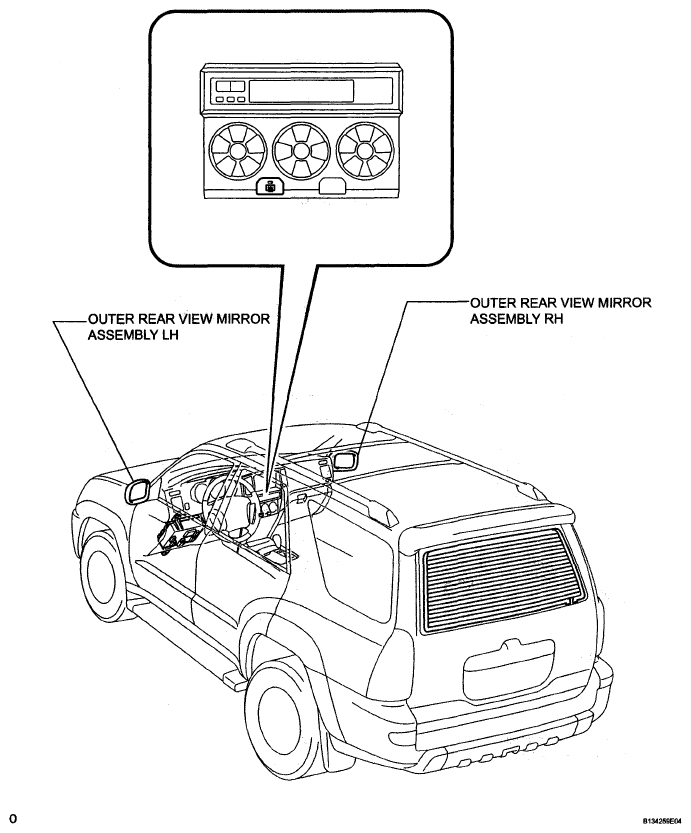

Fig 2: Identifying Outer Rear View Mirror Components (2 Of 2)
G04967192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
