Steering Pad Switch: Components

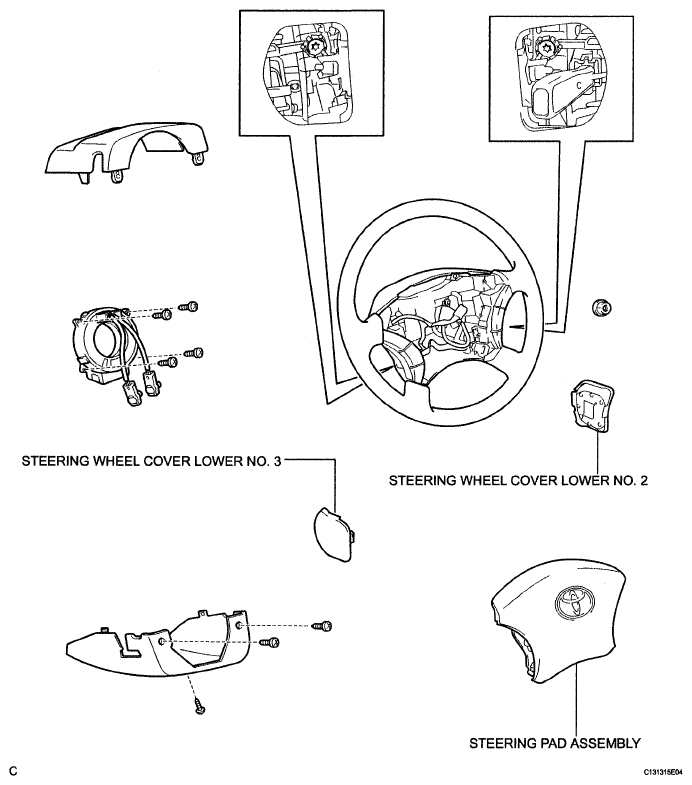

Fig 1: Identifying Steering Pad Switch Components (1 Of 2)
G04966775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

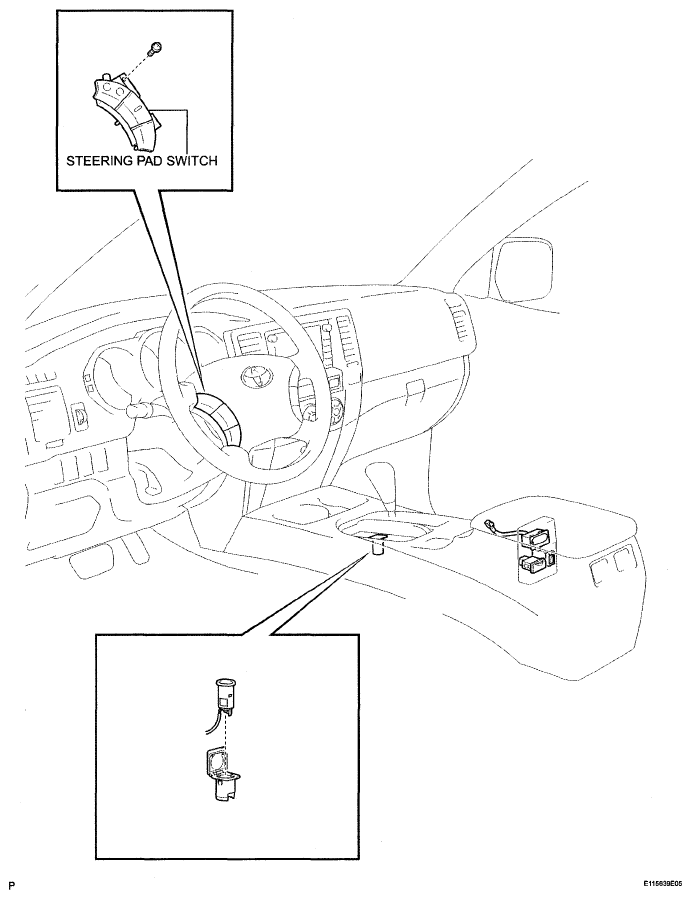

Fig 2: Identifying Steering Pad Switch Components (2 Of 2)
G04966776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
