System Diagram

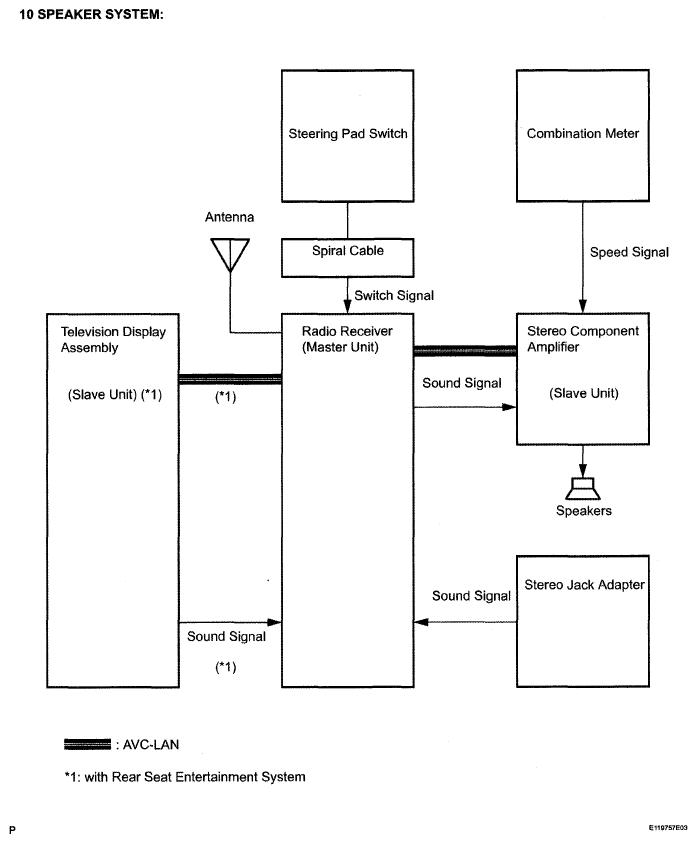

Fig 1: Identifying Audio And Visual System Diagram (1 Of 2)
G04966633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

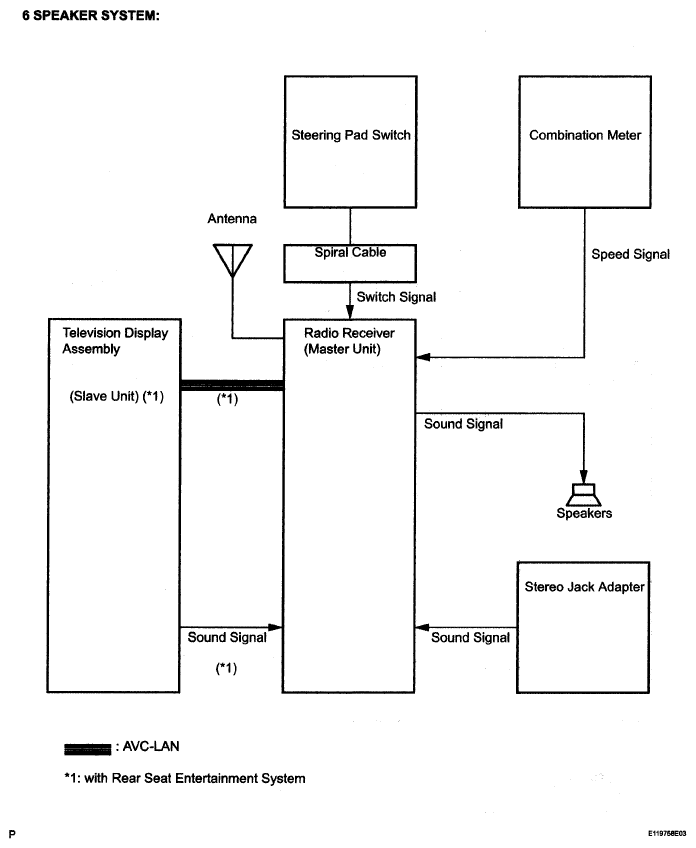

Fig 2: Identifying Audio And Visual System Diagram (2 Of 2)
G04966634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
