Transmission Control Cable: Components

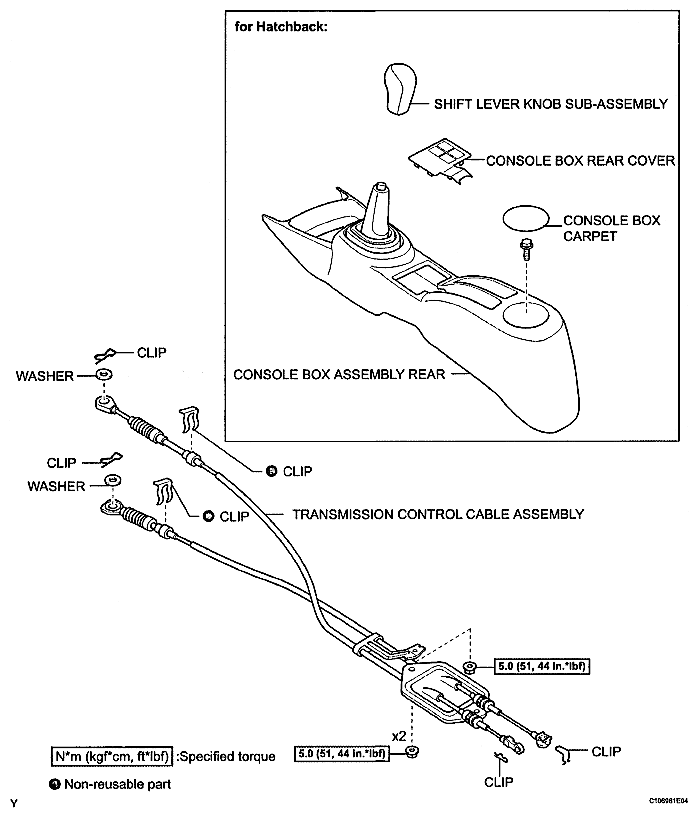

Fig 1: Transmission Control Cable Replacement Components (1 Of 3) With Torque Specifications
G04831640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Transmission Control Cable Components (2 Of 3)
G04831633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Transmission Control Cable Replacement Components (3 Of 3) With Torque Specifications
G04831642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
