Floor Shift Lever Assembly: Components

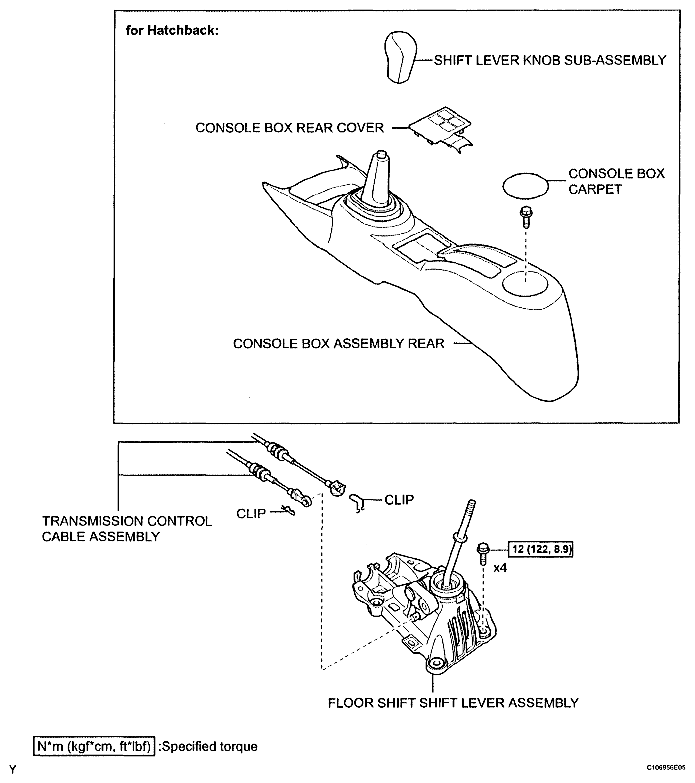

Fig 1: Floor Shift Lever Assembly Replacement Components (1 Of 2) With Torque Specifications
G04831632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

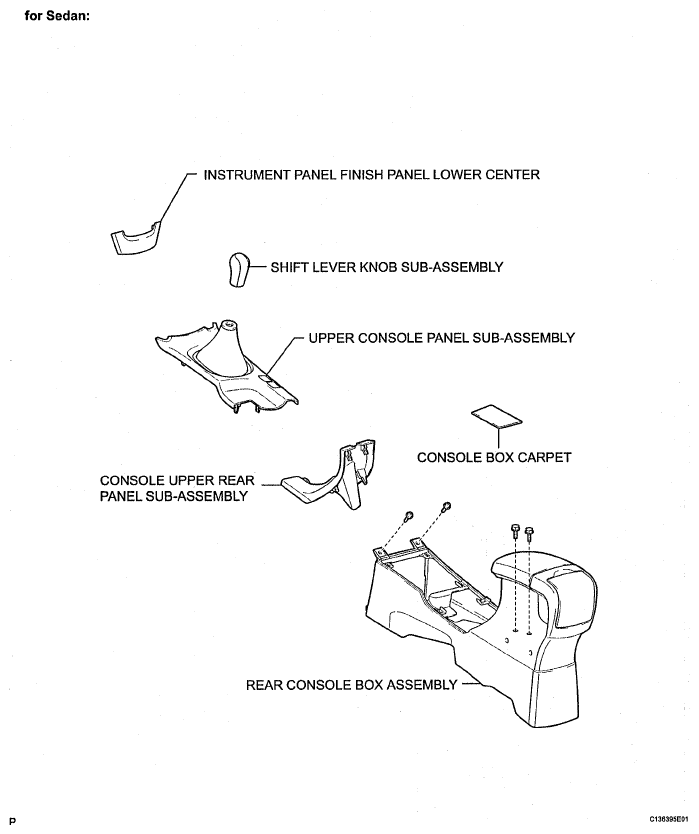

Fig 2: Identifying Floor Shift Lever Assembly Components (2 Of 2)
G04831633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
