Rear Axle Beam: Components

Fig 1: Rear Coil Spring Replacement Components (1 Of 3) With Torque Specifications
G04832102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

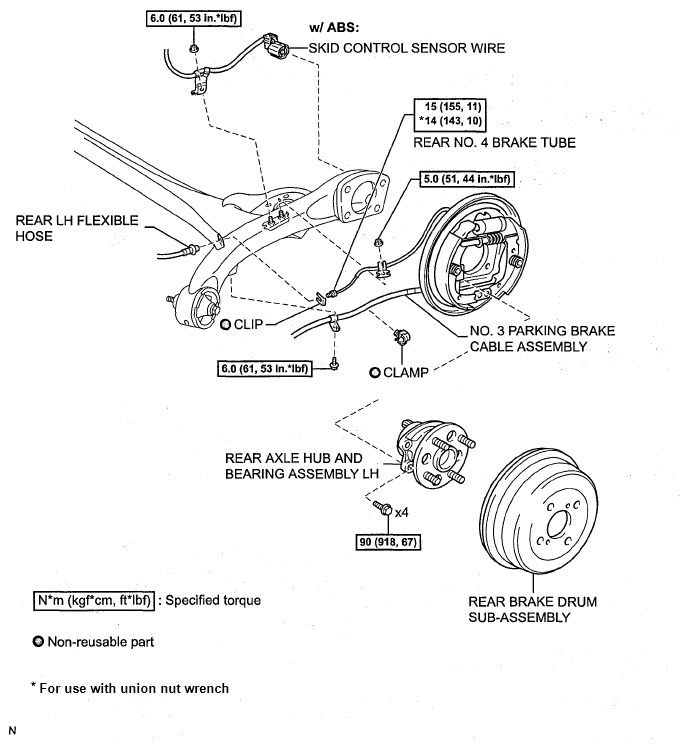

Fig 2: Rear Axle Beam Replacement Components (2 Of 5) With Torque Specifications
G04832124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

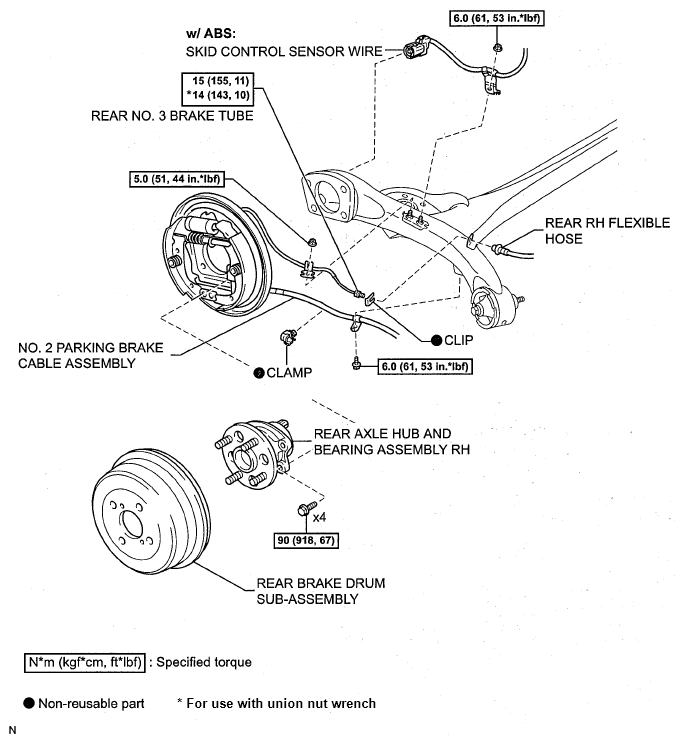

Fig 3: Rear Axle Beam Replacement Components (3 Of 5) With Torque Specifications
G04832125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Rear Coil Spring Replacement Components (3 Of 3) With Torque Specifications
G04832104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

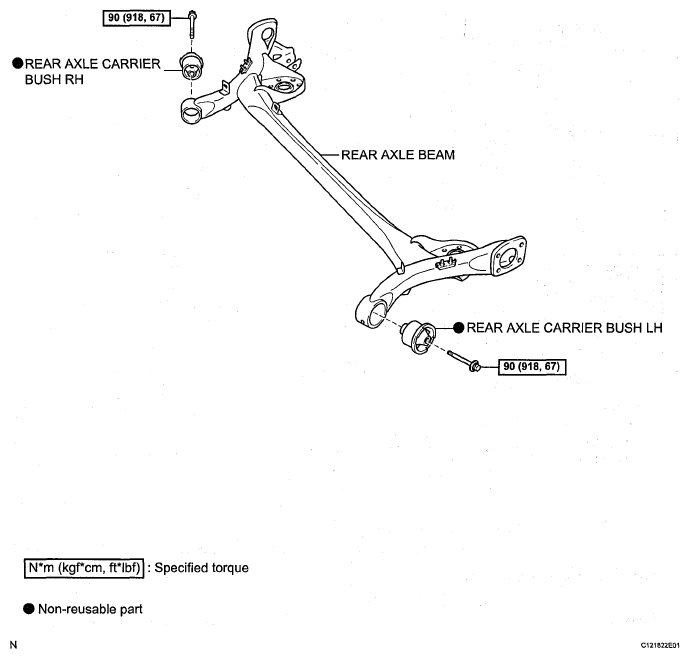

Fig 5: Rear Axle Beam Replacement Components (5 Of 5) With Torque Specifications
G04832127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
