Cranking Holding Function Circuit: Wiring Diagram

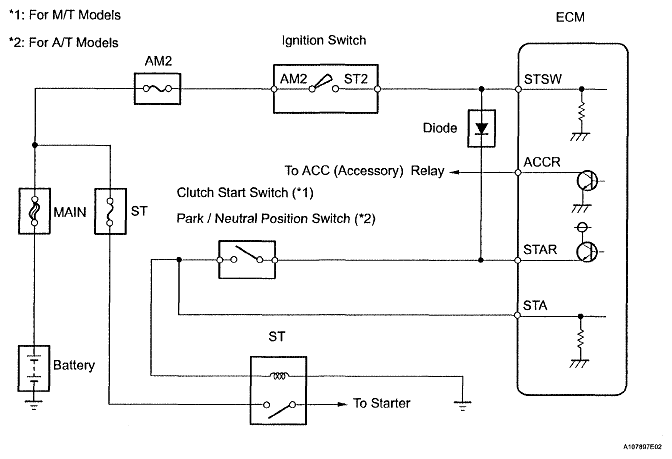

Fig 1: Identifying Cranking Holding Function Circuit Wiring Diagram

G04828347

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
