Home >> Toyota >> 2007 >> Yaris Base, 2D Hatchback, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Auxiliary Emission Control Systems >> Emission Control System >> Canister >> Components

Emission Control System: Canister: Components

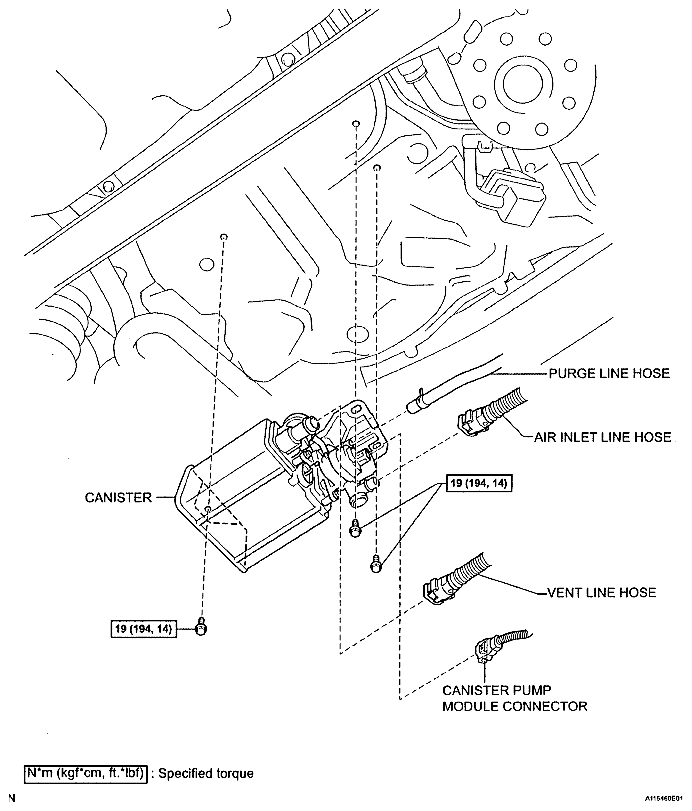

Fig 1: Canister Replacement Components With Torque Specifications

G04829128

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
