Home >> Toyota >> 2007 >> Yaris Base, 2D Hatchback, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> ECT and A/T Indicator >> Notes

ECT and A/T Indicator: Notes

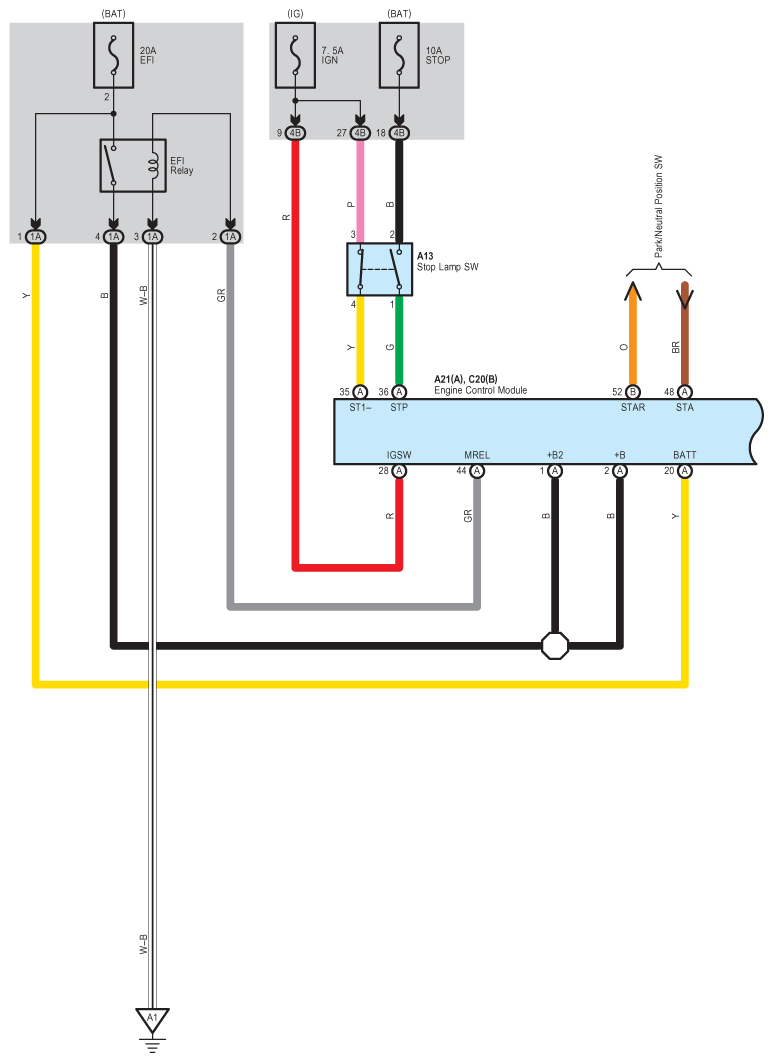

Fig 1: ECT And A/T Indicator System Wiring Diagram (1 Of 5)
G08791688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

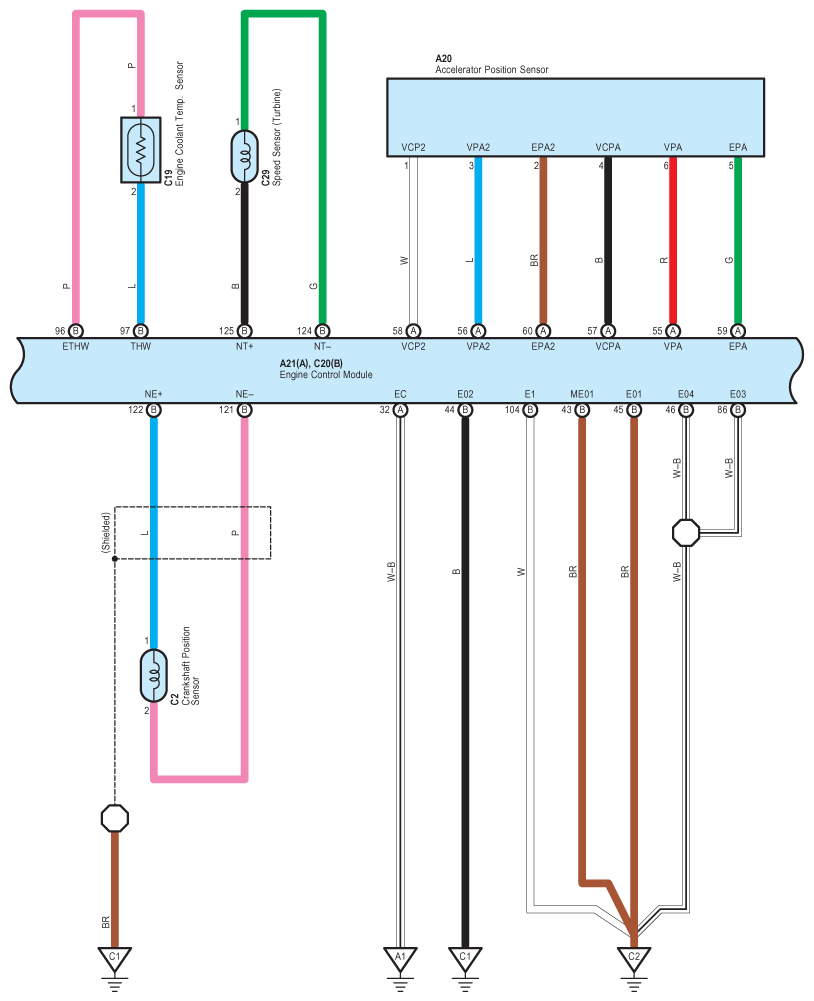

Fig 2: ECT And A/T Indicator System Wiring Diagram (2 Of 5)
G08791689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

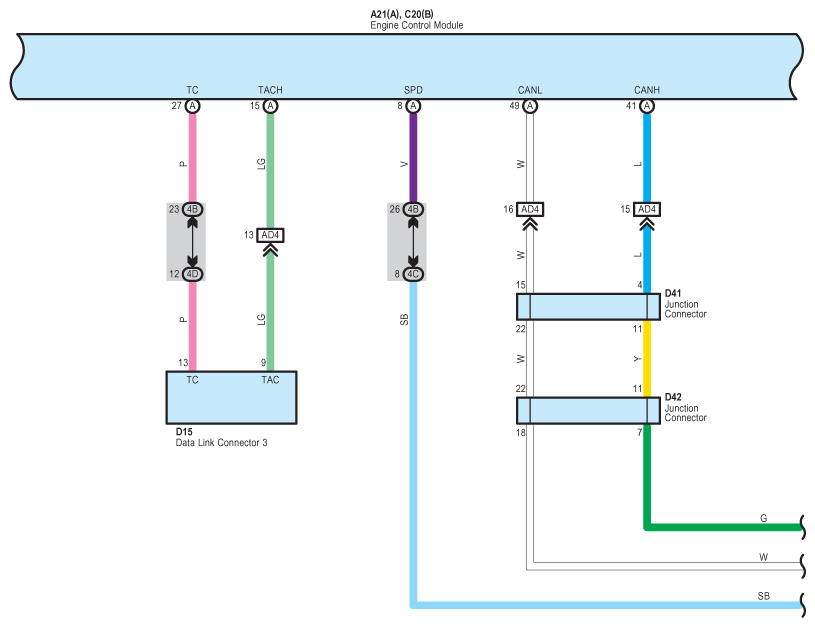

Fig 3: ECT And A/T Indicator System Wiring Diagram (3 Of 5)
G08791690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

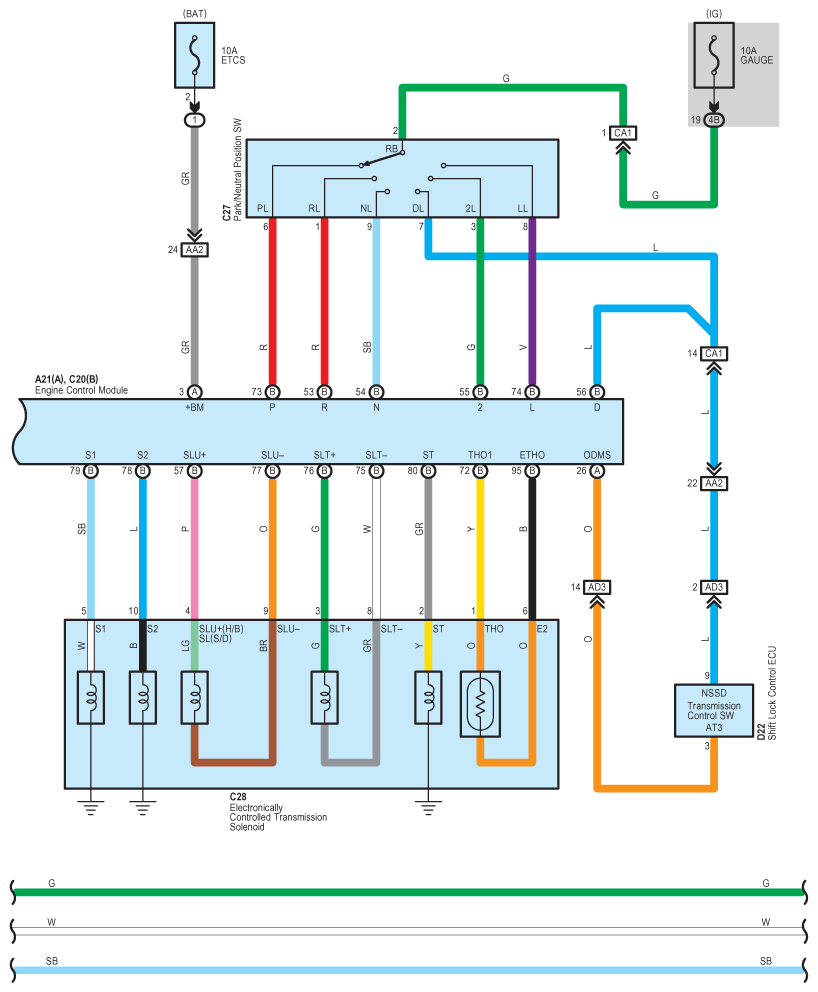

Fig 4: ECT And A/T Indicator System Wiring Diagram (4 Of 5)
G08791691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

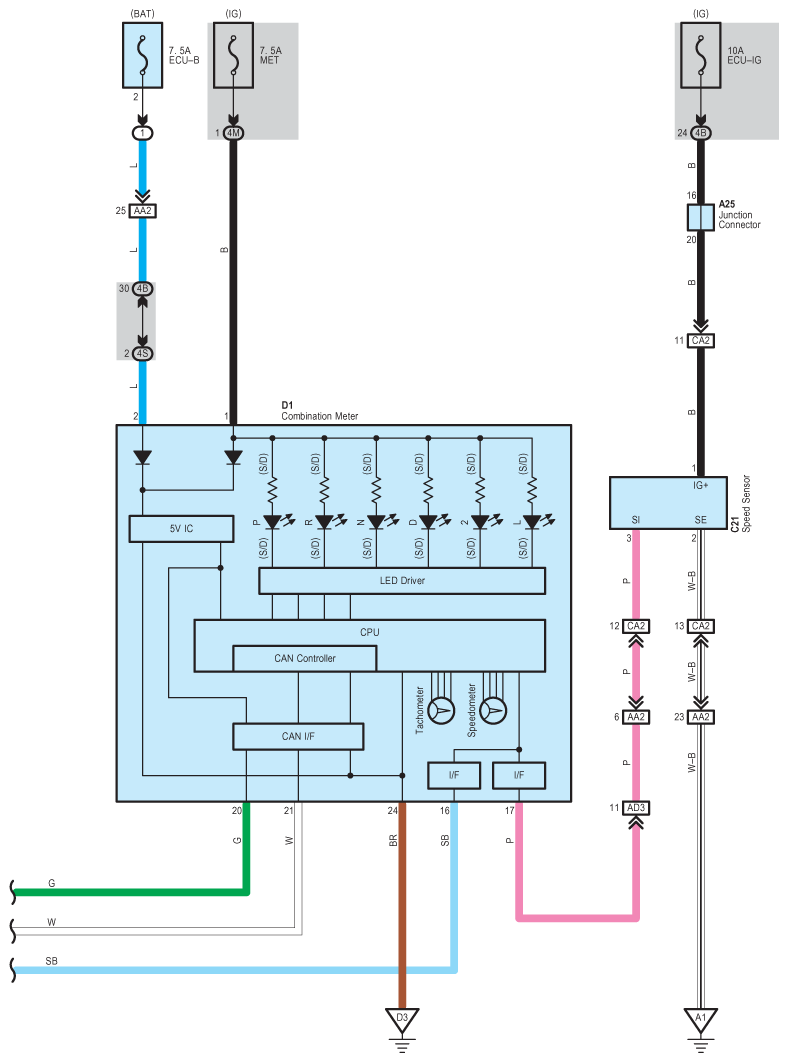

Fig 5: ECT And A/T Indicator System Wiring Diagram (5 Of 5)
G08791692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
