Cigarette Lighter/Power Outlet: Notes

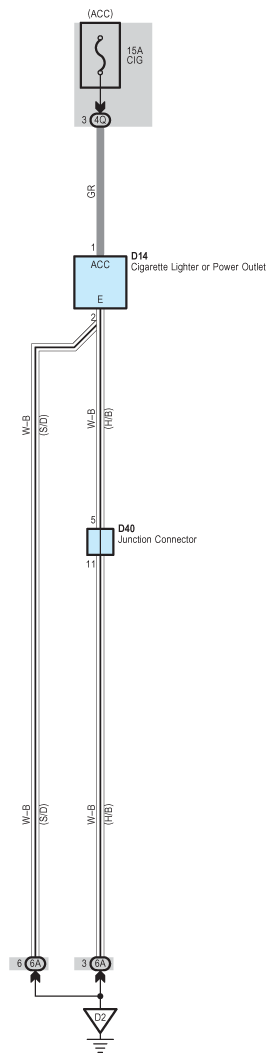

Fig 1: Cigarette Lighter/Power Outlet System Wiring Diagram
G08791764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
