OEM System Circuits: Abs: Notes

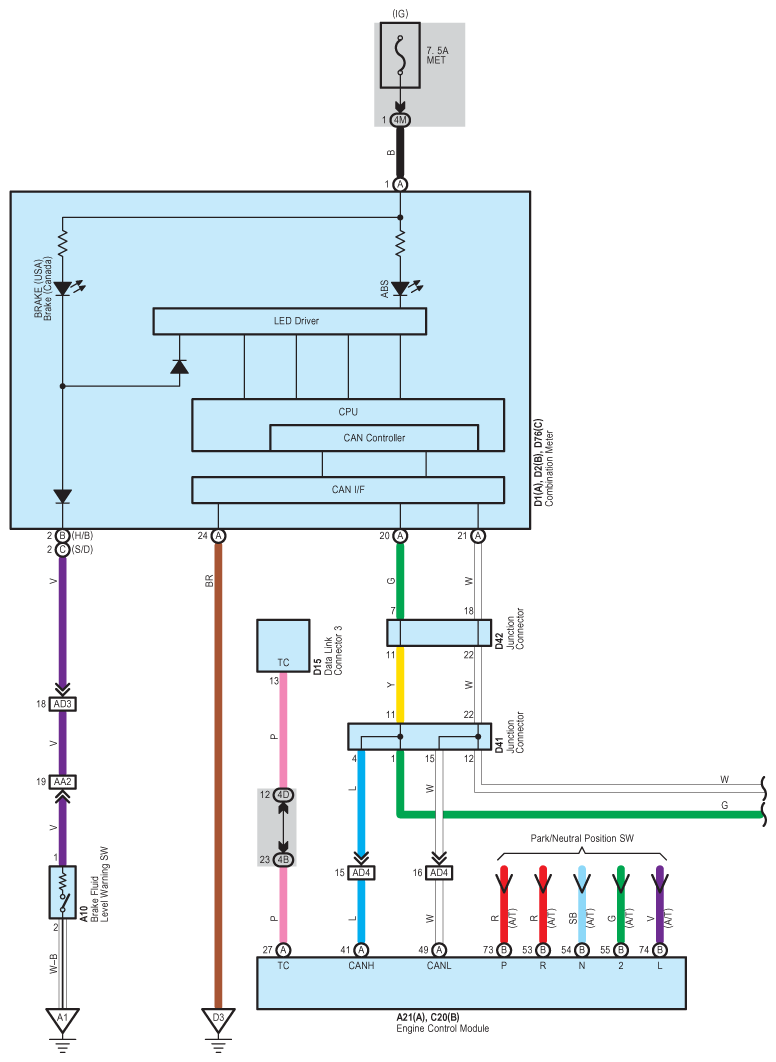

Fig 1: ABS System Wiring Diagram (1 Of 2)
G08791724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

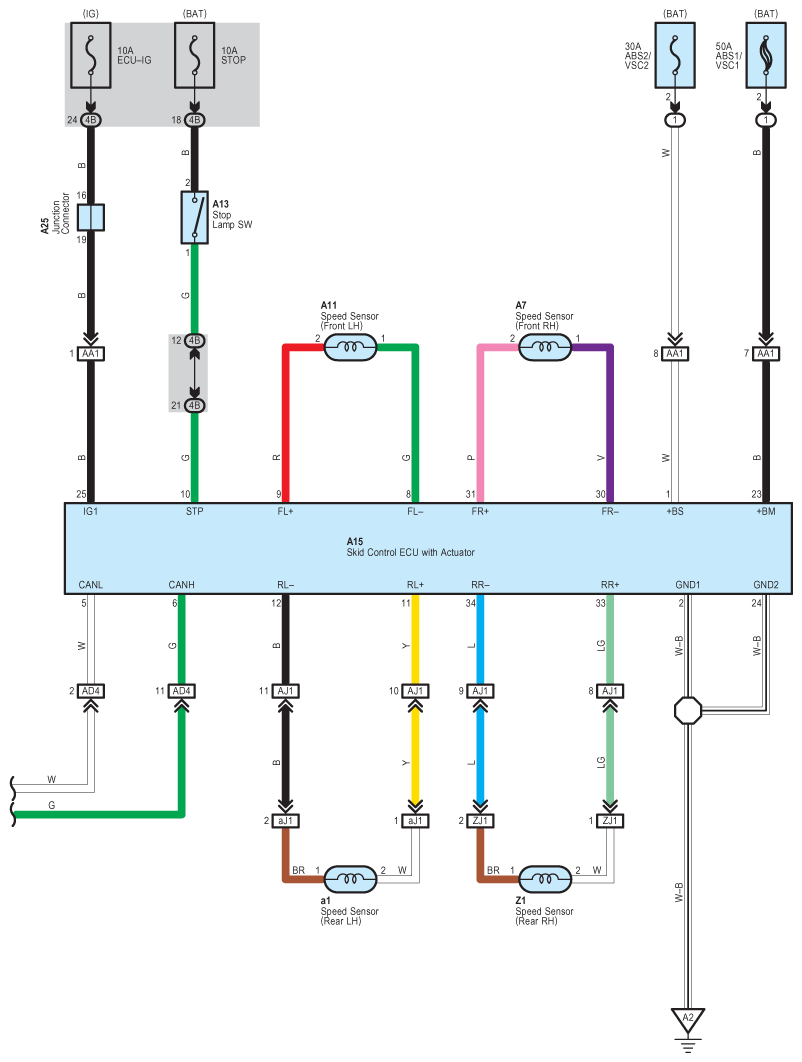

Fig 2: ABS System Wiring Diagram (2 Of 2)
G08791725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
