WINDSHIELD GLASS (for Hatchback): Components

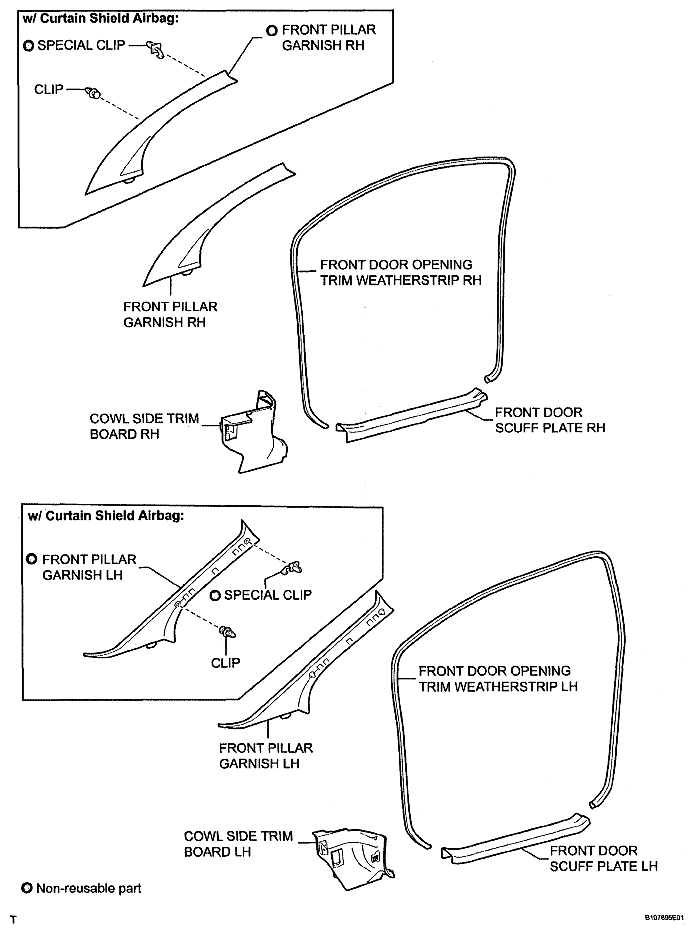

Fig 1: Identifying Windshield Glass Components - For Hatchback (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

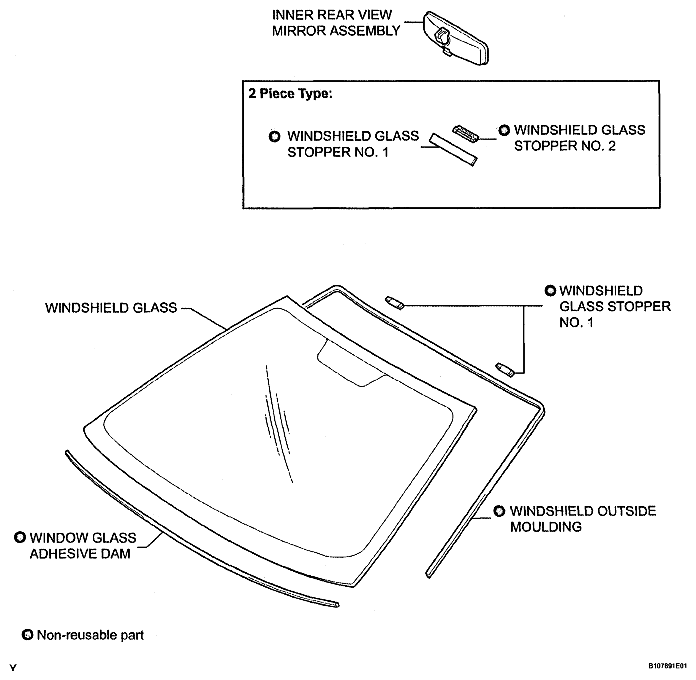

Fig 2: Identifying Windshield Glass Components - For Hatchback (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

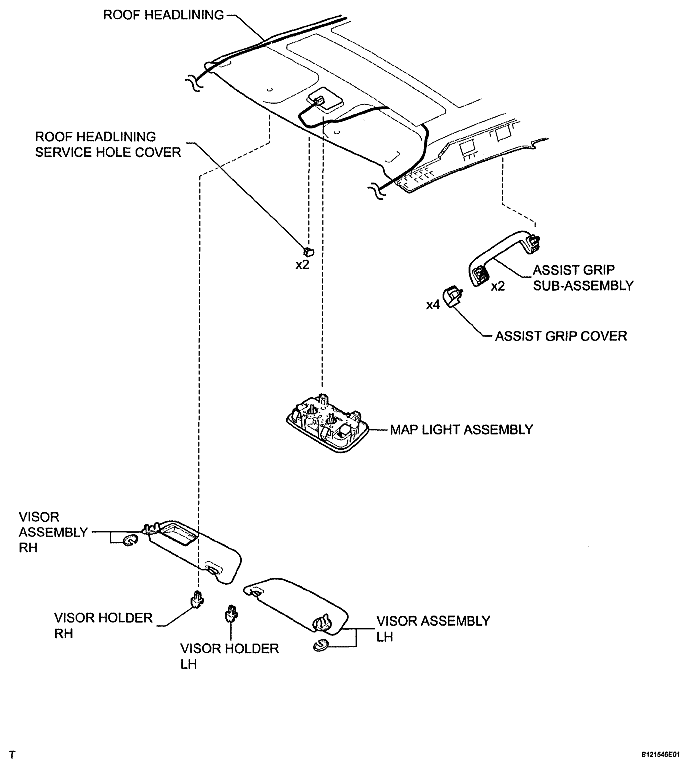

Fig 3: Identifying Windshield Glass Components - For Hatchback (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

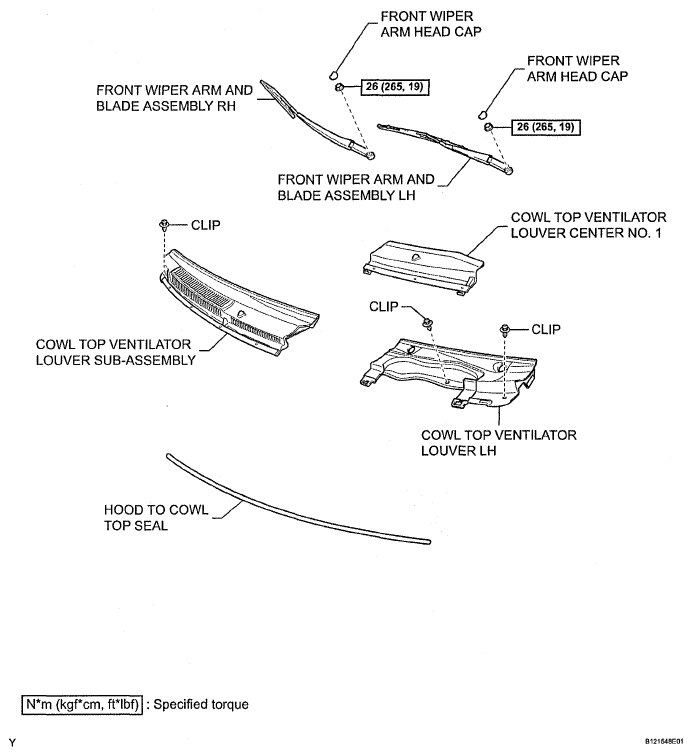

Fig 4: Identifying Windshield Glass Components - For Hatchback (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
