BACK DOOR GLASS (for Hatchback): Components

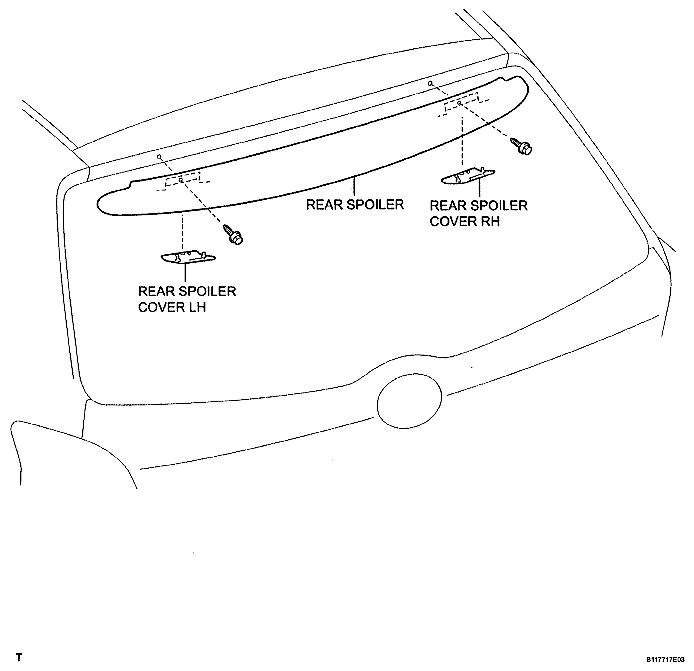

Fig 1: Identifying Back Door Components - For Hatchback (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

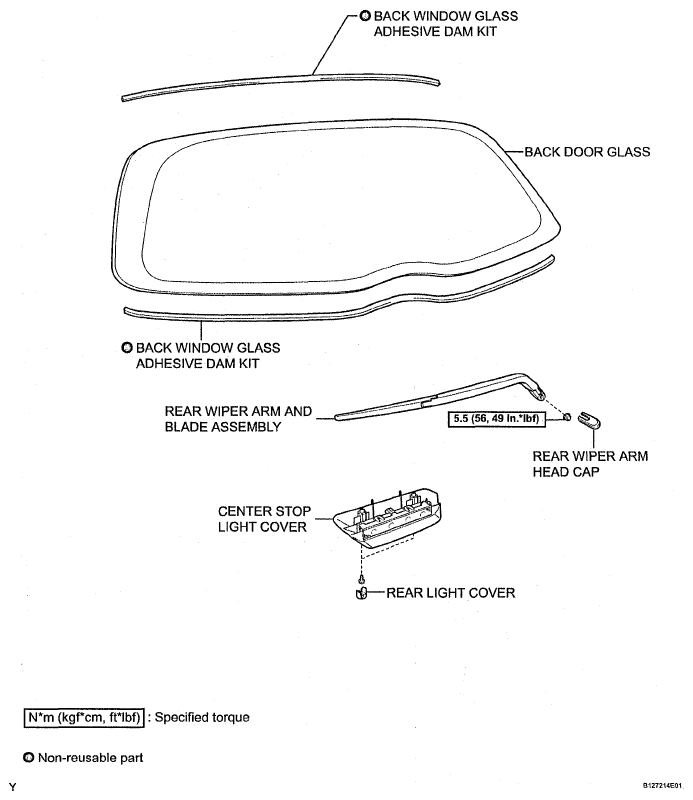

Fig 2: Identifying Back Door Glass Components - For Hatchback (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
