Power Mirror Control System
>>
System Diagram
System Diagram

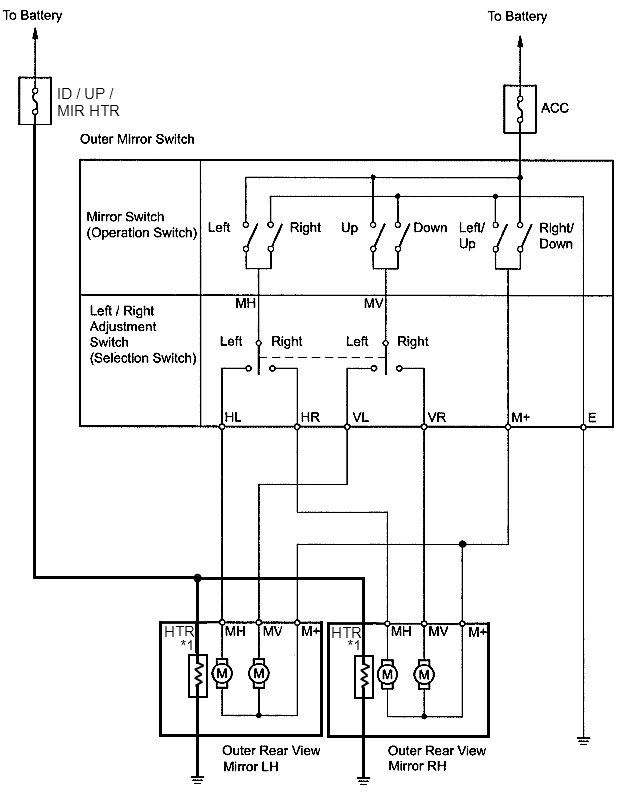

Fig 1: Identifying Power Mirror Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
