Cruise Control Main Switch: Inspection

  1. INSPECT CRUISE CONTROL MAIN SWITCH

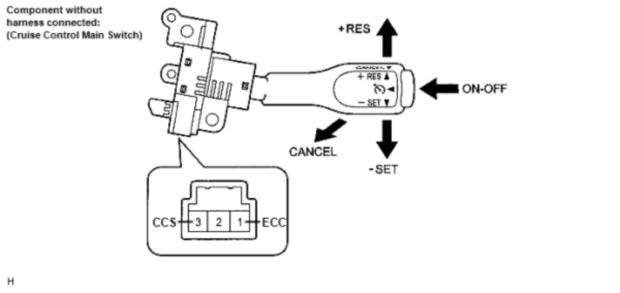

    Fig 1: Inspecting Cruise Control Main Switch
    G04831005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance and check the results in accordance the value(s) in the table below.

      Standard resistance

      CRUISE CONTROL MAIN SWITCH

      Tester Connection Switch Condition Specified Condition
      1(ECC) - 3(CCS) Neutral 10 kΩ or higher
      1(ECC) - 3(CCS) + /RES 216 to 264Ω
      1(ECC) - 3(CCS) - /SET 567 to 693Ω
      1(ECC) - 3(CCS) CANCEL 1,386 to 1,694Ω
      1(ECC) - 3(CCS) Main Switch off 10kΩ or higher
      1(ECC) - 3(CCS) Main Switch on Below 1 Ω

      If the result is not as specified, replace the cruise control main switch.
