ACIS Control Circuit: Description

This circuit opens and closes the Intake Air Control Valve (IACV) in response to the engine load in order to increase the intake efficiency (ACIS: Acoustic Control Induction System).

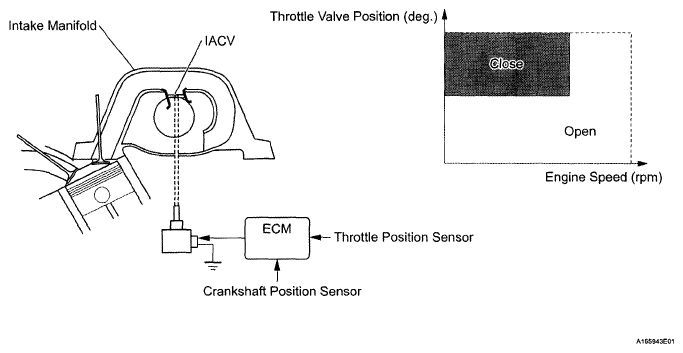

Fig 1: Identifying Intake Air Control Valve Open And Close Position
G05149986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
