Front Seat Inner Belt Assembly: Components

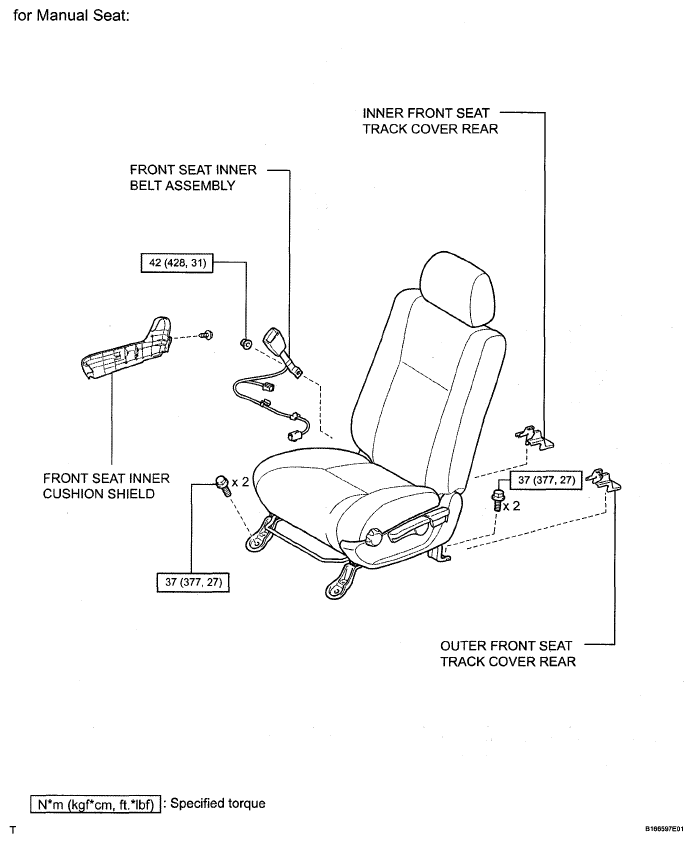

Fig 1: Identifying Front Seat Inner Belt Assembly Replacement Components And Torque Specifications (1 Of 2)
G05160422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

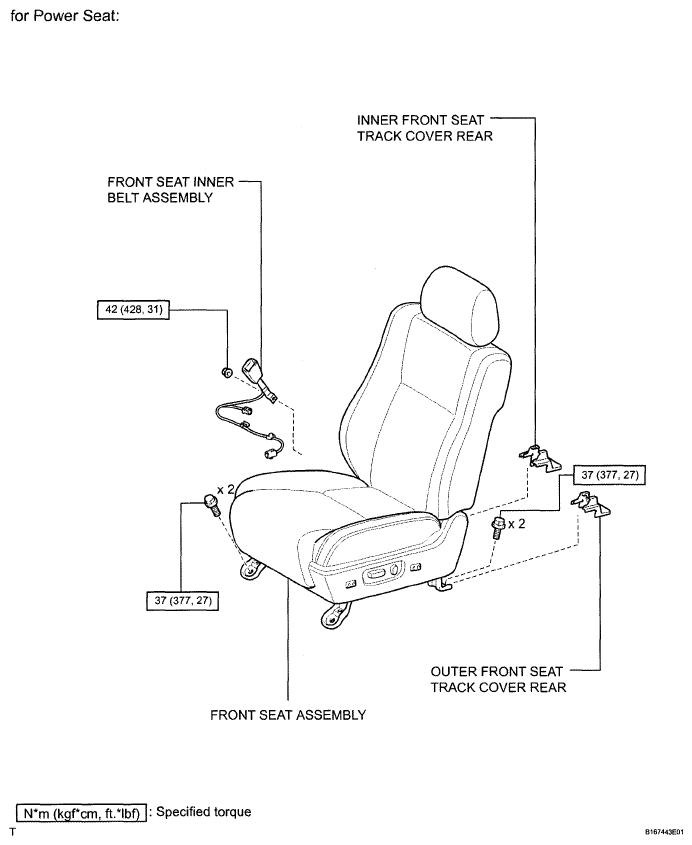

Fig 2: Identifying Front Seat Inner Belt Assembly Replacement Components And Torque Specifications (2 Of 2)
G05160423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
