Cruise Control for 3UR-FE: Notes

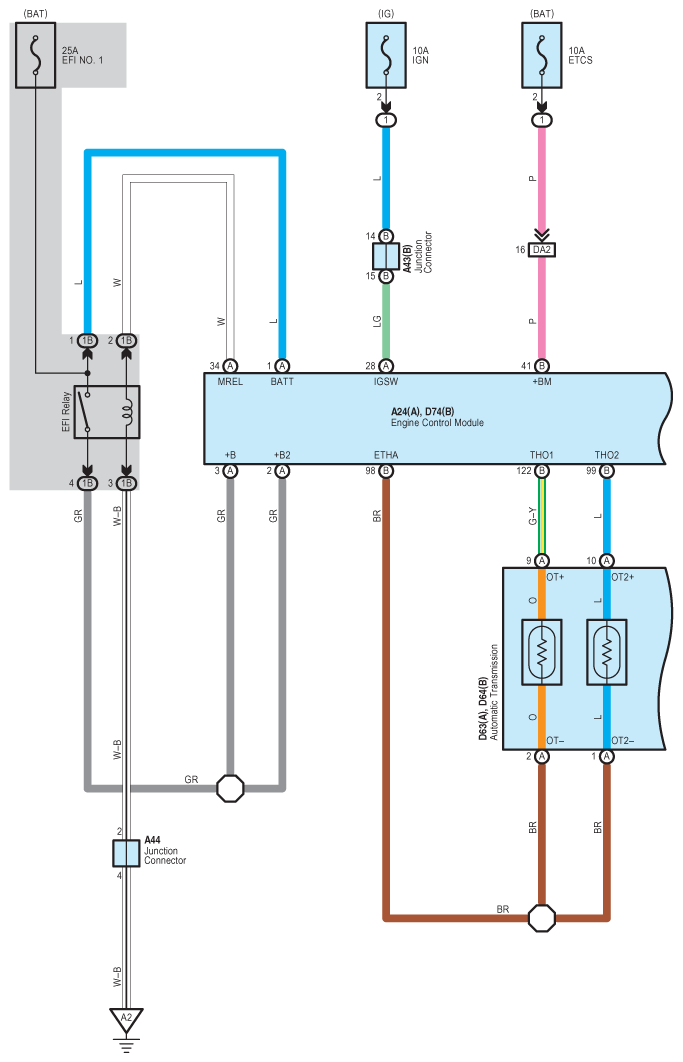

Fig 1: Cruise Control System Wiring Diagram (3UR-FE; 1 Of 7)
G08790950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

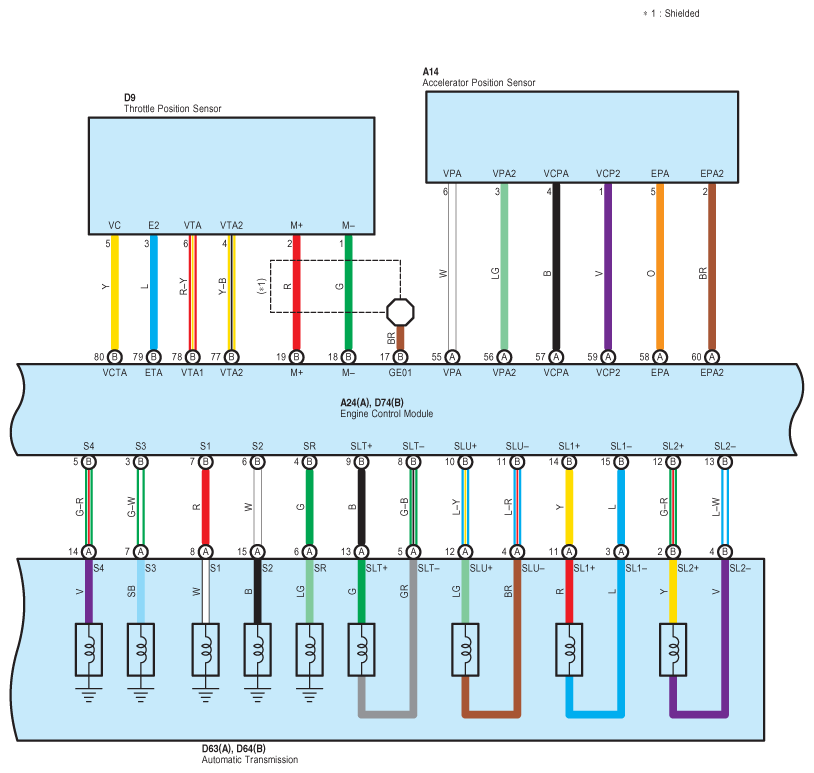

Fig 2: Cruise Control System Wiring Diagram (3UR-FE; 2 Of 7)
G08790951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

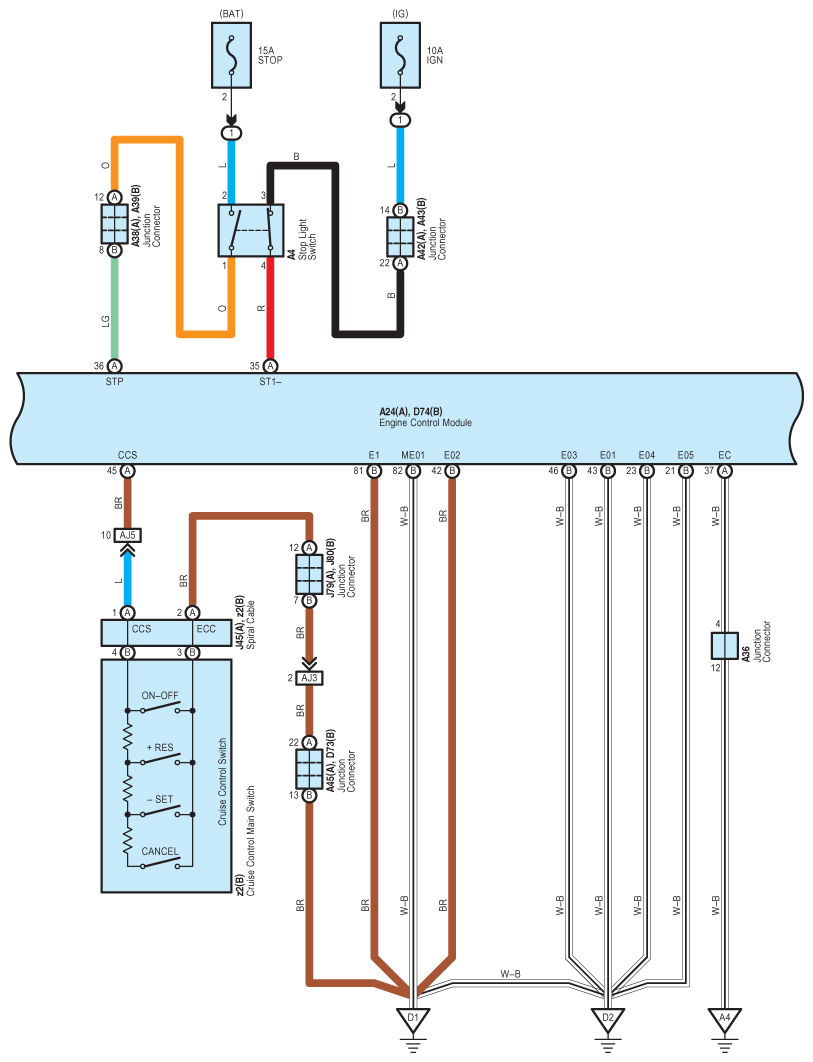

Fig 3: Cruise Control System Wiring Diagram (3UR-FE; 3 Of 7)
G08790952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

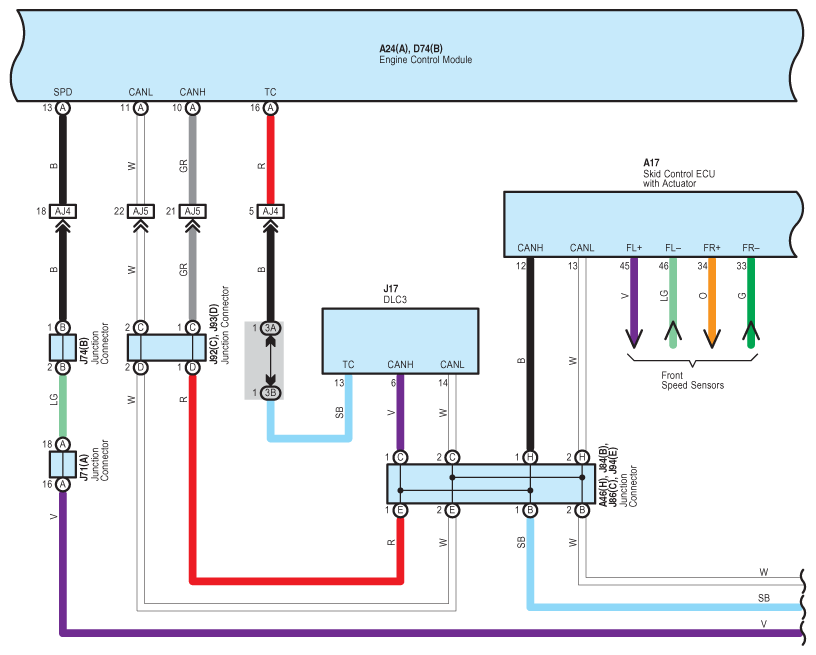

Fig 4: Cruise Control System Wiring Diagram (3UR-FE; 4 Of 7)
G08790953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

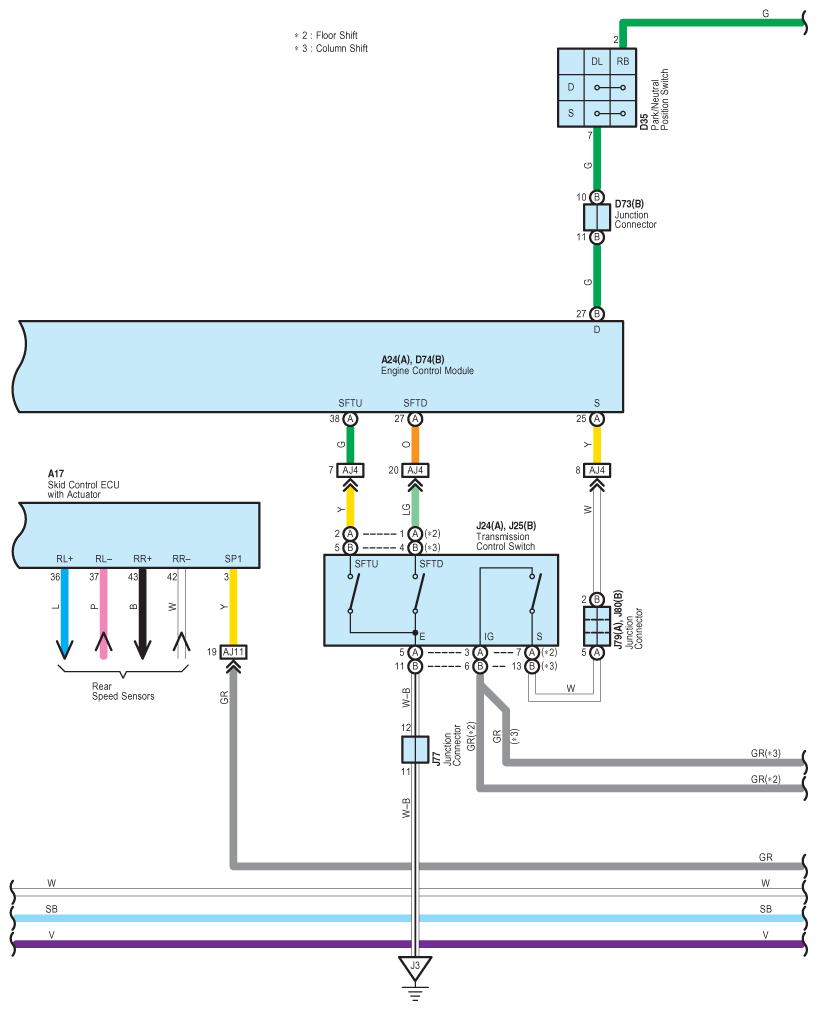

Fig 5: Cruise Control System Wiring Diagram (3UR-FE; 5 Of 7)
G08790954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

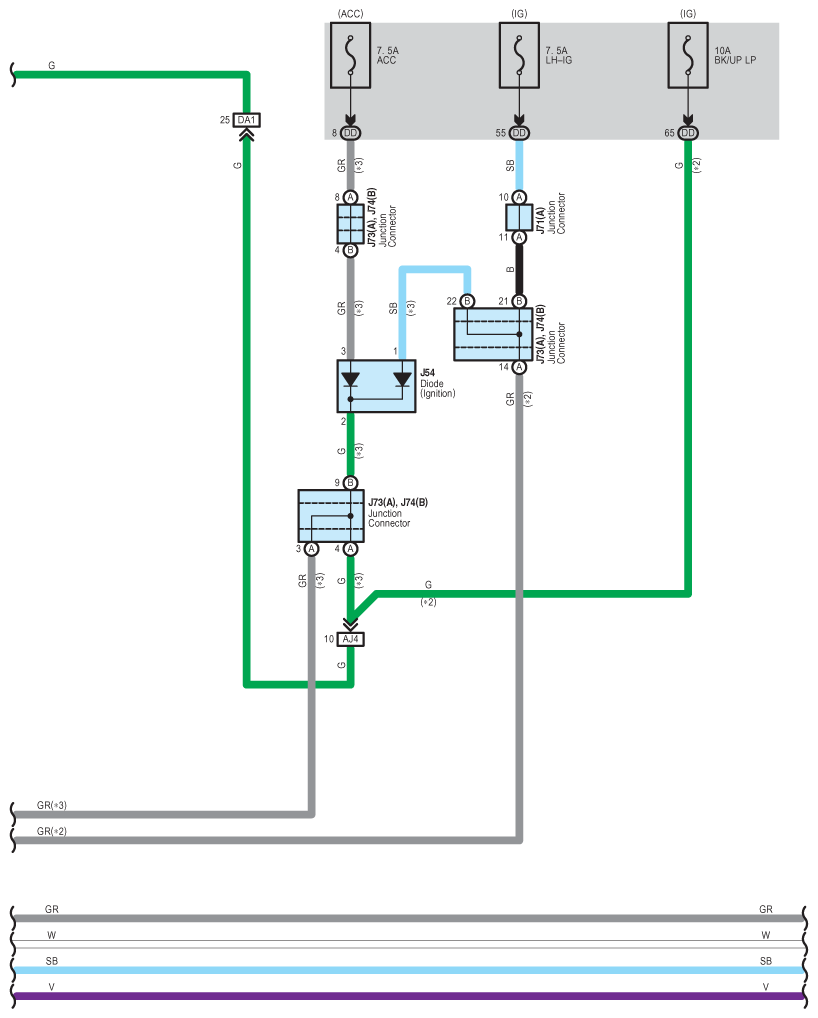

Fig 6: Cruise Control System Wiring Diagram (3UR-FE; 6 Of 7)
G08790955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

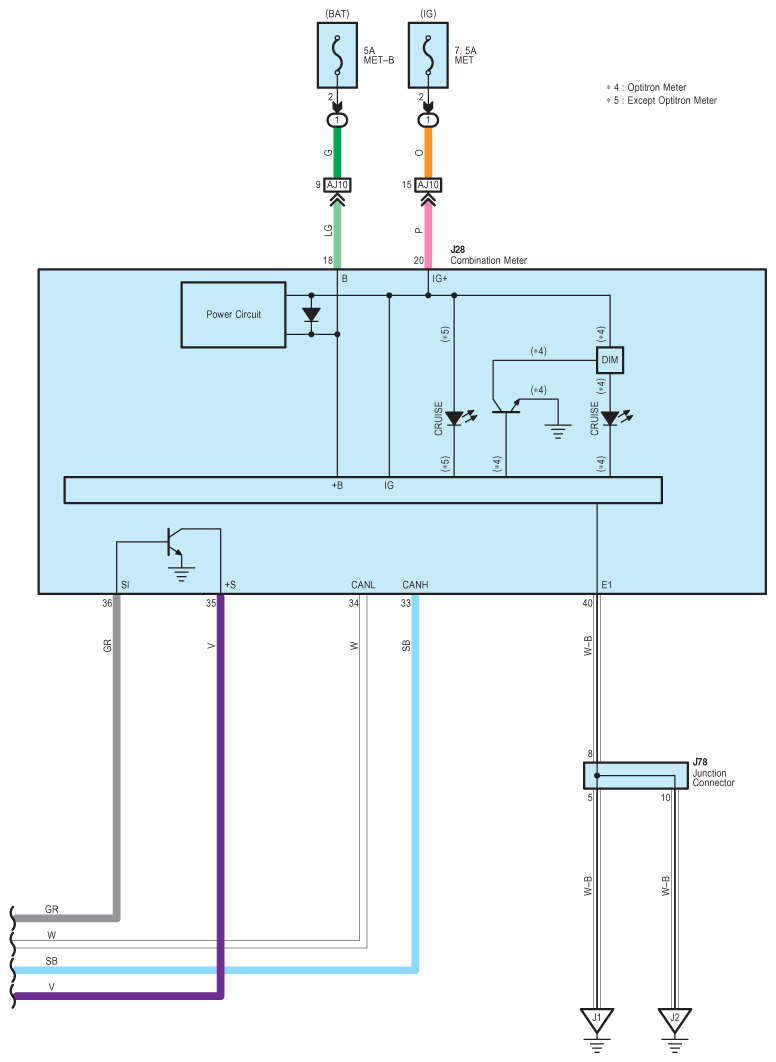

Fig 7: Cruise Control System Wiring Diagram (3UR-FE; 7 Of 7)
G08790956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
