ABS, TRAC, VSC and Auto LSD: Notes

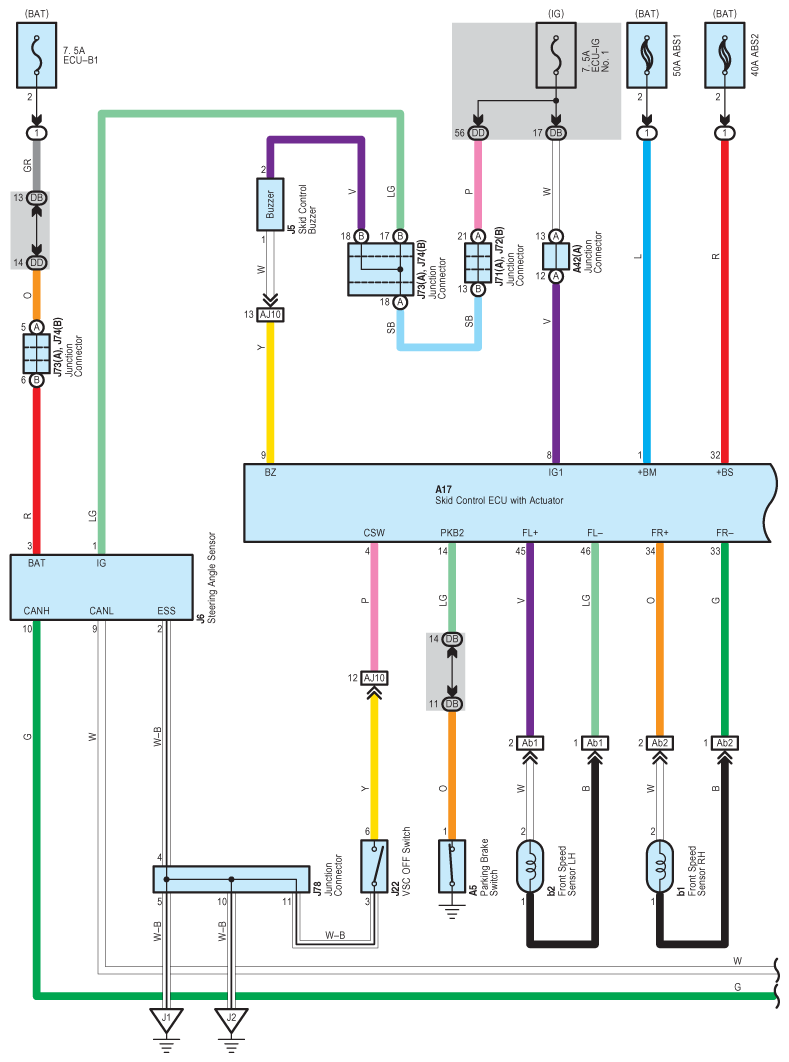

Fig 1: ABS, TRAC, VSC And Auto LSD System Wiring Diagram (1 Of 4)
G08790945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

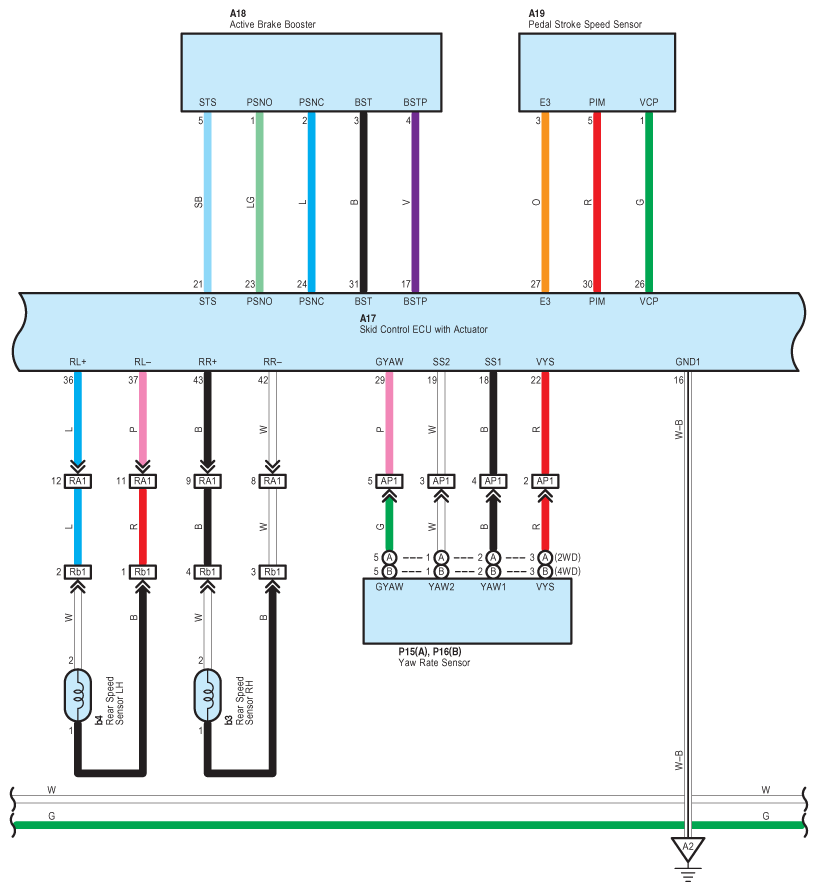

Fig 2: ABS, TRAC, VSC And Auto LSD System Wiring Diagram (2 Of 4)
G08790946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

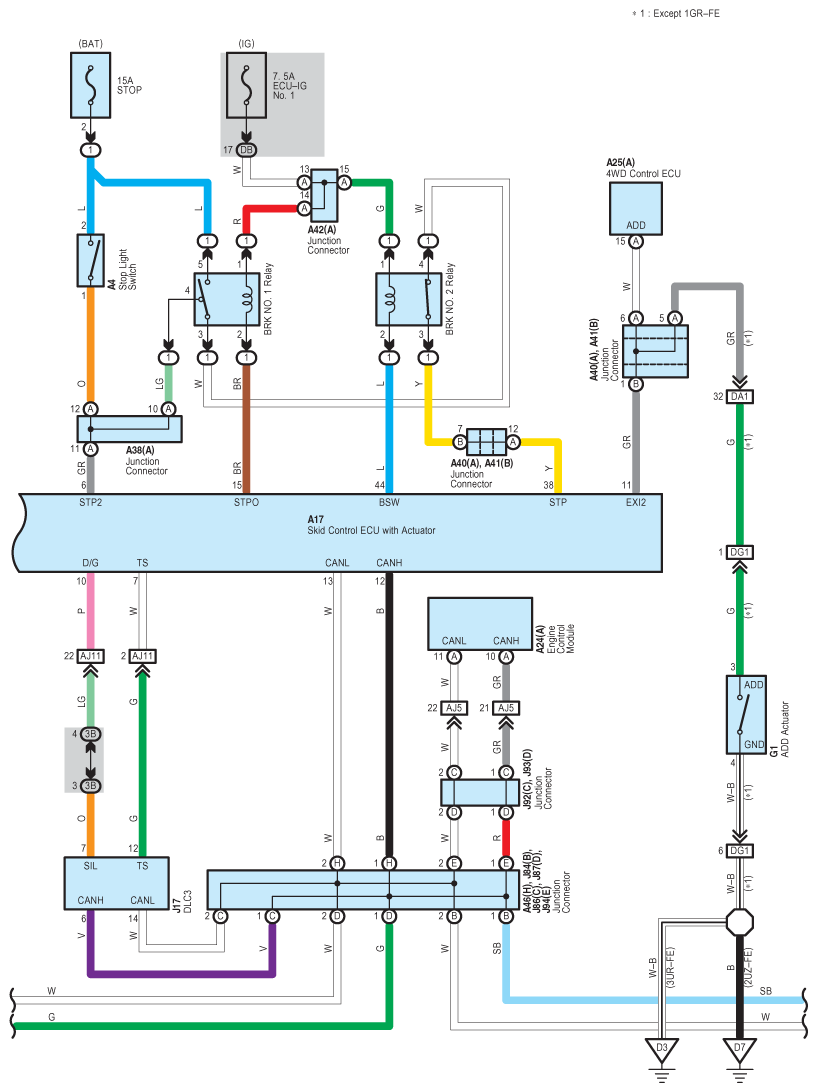

Fig 3: ABS, TRAC, VSC And Auto LSD System Wiring Diagram (3 Of 4)
G08790947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

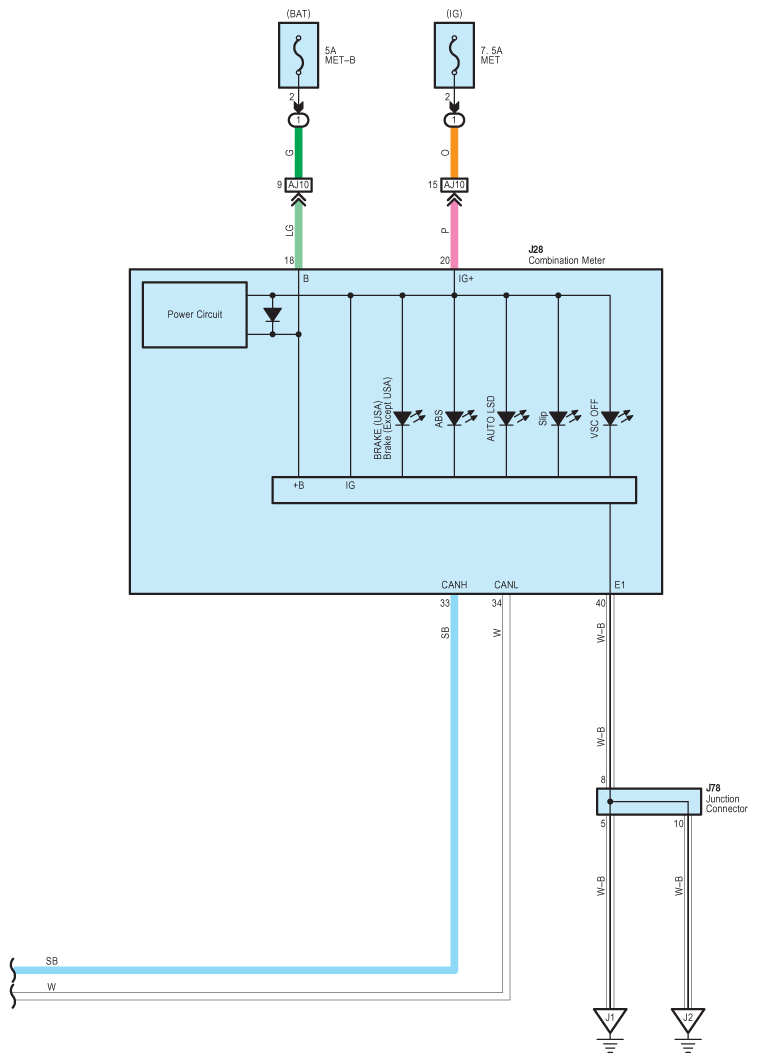

Fig 4: ABS, TRAC, VSC And Auto LSD System Wiring Diagram (4 Of 4)
G08790948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
