Rear Leaf Spring: Components

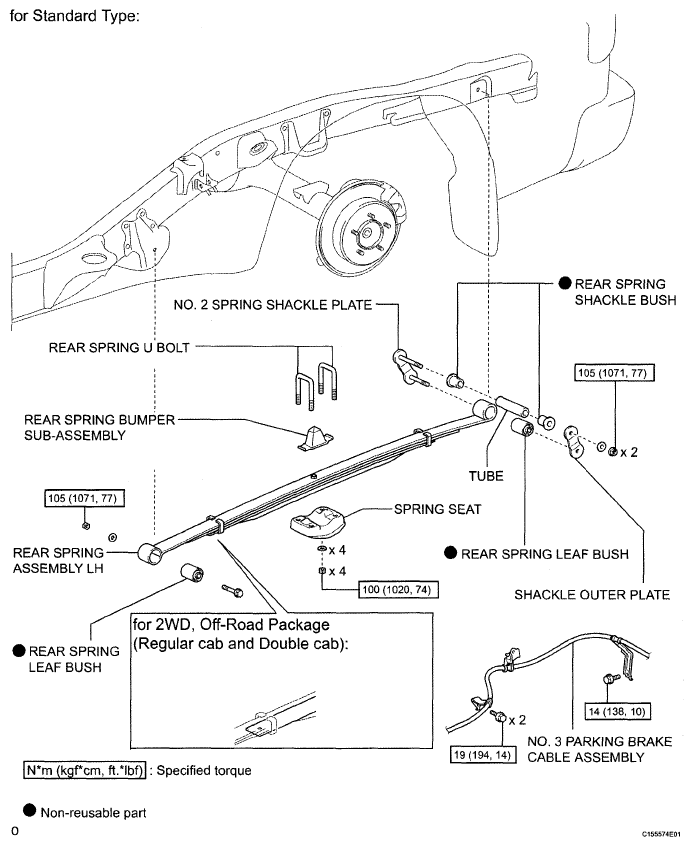

Fig 1: Identifying Rear Leaf Spring Replacement Components With Torque Specifications (1 Of 2)
G05159622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

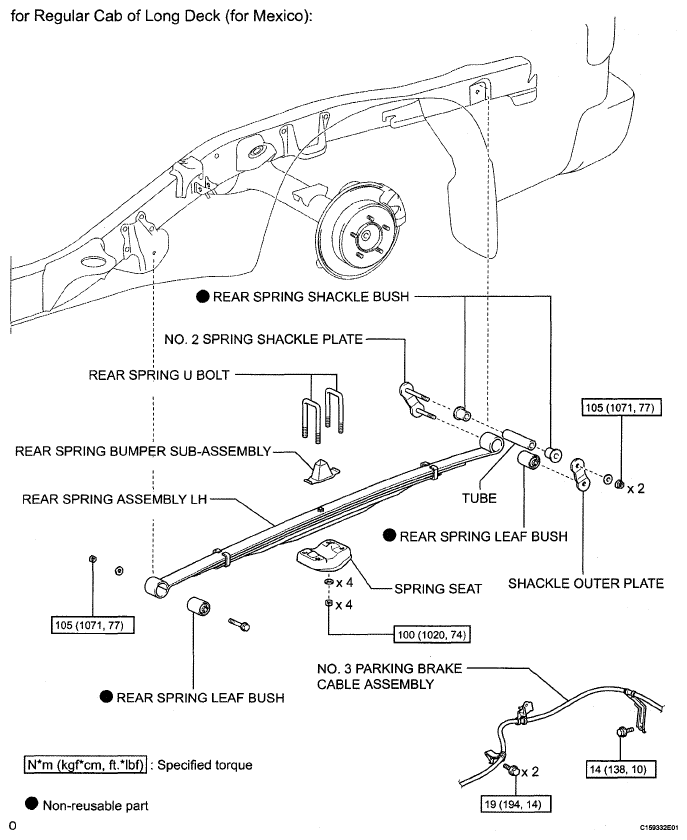

Fig 2: Identifying Rear Leaf Spring Replacement Components With Torque Specifications (2 Of 2)
G05159623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
