Front Wheel Alignment: Adjustment

NOTE: For vehicles equipped with VSC, if wheel alignment has been adjusted, and if suspension or underbody components have been removed/installed or replaced, be sure to perform the following initialization procedure in order for the system to function normally:
  1. Check that the steering wheel is in the centered position.
  2. Disconnect the negative battery terminal for more than 2 seconds.
  3. Reconnect the negative battery terminal.
  4. Perform zero point calibration of the yaw rate and deceleration sensor and test mode inspection (see CALIBRATION ).
  1. INSPECT TIRE
    1. Inspect the tires (see INSPECTION ).
  2. MEASURE VEHICLE HEIGHT
    NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specification.
    1. Press down on the vehicle several times to stabilize the suspension, and then measure the vehicle height.

      Standard vehicle height (unloaded vehicle): for Regular Cab of Standard Deck

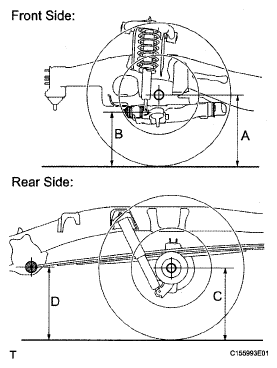

      Fig 1: Measuring Vehicle Height (Front And Rear Side)
      G05159561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      VEHICLE HEIGHT (FRONT AND REAR SIDE)

      Vehicle model Tire size Front A - B Rear C-D
      GSK50L-TRADKA P255/70R18 8J (STD) 112.0 mm (4.41 in.) -50.9 mm (-2.00 in.)
      P275/65R18 8J (OPT) -50.8 mm (-2.00 in.)
      UCK50L-TRADKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 109.7 mm (4.32 in.) -59.9 mm (-2.36 in.)
      P275/65R18 8J (OFF-ROAD) 111.0 mm (4.37 in.) -55.0 mm (-2.17 in.)
      UCK55L-TRADKA P255/70R18 8J (STD) 96.0 mm (3.78 in.) -67.3 mm (-2.65 in.)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 96.1 mm (3.78 in.)
      P275/65R18 8J (OFF-ROAD) 97.1 mm (3.82 in.) -65.5 mm (-2.58 in.)
      USK50L-TRTDKA P255/70R18 8J (STD) 112.9 mm (4.44 in.) -60.3 mm (-2.37 in.)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 -60.2 mm (-2.37 in.)
      P275/65R18 8J OFF-ROAD) 114.0 mm (4.49 in.) -55.6 mm (-2.19 in.)
      USK55L-TRTDKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 98.2 mm (3.87 in.) -67.1 mm (-2.64 in.)
      P275/55R20 8J (SPORT) 98.3 mm (3.87 in.) -67.0 mm (-2.64 in.)
      P275/65R18 8J (OFF-ROAD) 99.0 mm (3.90 in.) -65.3 mm (-2.57 in.)

      Standard vehicle height (unloaded vehicle):

      for Regular Cab of Long Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD VEHICLE HEIGHT - REGULAR CAB OF LONG DECK

      Vehicle model Tire size Front A - B Rear C - D
      GSK51L-THADKA P255/70R18 8J (STD) 106.1 mm (4.18 in.) -53.3 mm (-2.10 in.)
      P275/65R18 8J (OPT) 106.2 mm (4.18 in.)
      P255/70R18 8J (MEXICO) 87.5 mm (3.44 in.) -75.1 mm (-2.96 in.)
      UCK51L-THADKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 106.5 mm (4.19 in.) -62.5 mm (-2.46 in.)
      P255/70R18 8J (MEXICO) 89.3 mm (3.52 in.) -71.7 mm (-2.82 in.)
      UCK56L-THADKA P255/70R18 8J (STD) 92.6 mm (3.65 in.) -70.5 mm (-2.78 in.)
      P275/65R18 8J (OPT) -70.4 mm (-2.77 in.)
      P255/70R18 8J (MEXICO) 88.8 mm (3.50 in.) -70.6 mm (-2.78 in.)
      USK51L-THTDKA P255/70R18 8J (STD) 108.2 mm (4.25 in.) -61.9 mm (-2.44 in.)
      P275/65R18 8J (OPT) -61.8 mm (-2.43 in.)
      USK56L-THTDKA P255/70R18 8J (STD) 93.5 mm (3.68 in.) -70.3 mm (-2.77 in.)
      P275/65R18 8J (OPT) -70.2 mm (-2.76 in.)

      Standard vehicle height (unloaded vehicle):

      for Double Cab of Standard Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD VEHICLE HEIGHT - DOUBLE CAB OF STANDARD DECK

      Vehicle model Tire size Front A - B Rear C - D
      GSK51L-CRASKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 99.0 mm (3.90 in.) -55.4 mm (-2.18 in.)
      UCK51L-CRASKA P255/70R18 8J (STD) 99.9 mm (3.93 in.) -52.5 mm (-2.07 in.)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 100.0 mm (3.94 in.) -52.4 mm (-2.06 in.)
      P275/65R18 8J (OFF-ROAD) 101.8 mm (4.01 in.) -48.8 mm (-1.92 in.)
      UCK51L-CRALKA P275/65R18 8J (STD)
      P275/55R20 8J (OPT)      		 98.9 mm (3.89 in.) -51.3 mm (-2.02 in.)
      P275/65R18 8J (OFF-ROAD) 100.8 mm (3.97 in.) -47.6 mm (-1.87 in.)
      UCK56L-CRASKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 87.2 mm (3.43 in.) -60.5 mm (-2.38 in.)
      P275/65R18 8J (OFF-ROAD) 88.8 mm (3.50 in.) -59.1 mm (-2.33 in.)
      UCK56L-CRALKA P275/65R18 8J (STD)
      P275/55R20 8J (OPT)      		 86.2 mm (3.39 in.) -55.8 mm (-2.20 in.)
      P275/65R18 8J (OFF-ROAD) 88.1 mm (3.47 in.) -58.6 mm (-2.31 in.)
      USK51L-CRTSKA P255/70R18 8J (STD) 101.0 mm (3.98 in.) -53.8 mm (-2.12 in.)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 -53.7 mm (-2.11 in.)
      P275/65R18 8J (OFF-ROAD) 102.7 mm (4.04 in.) -48.8 mm (-1.92 in.)
      USK51L-CRTLKA P275/65R18 8J (STD) 100.4 mm (3.95 in.) -52.9 mm (-2.08 in.)
      P275/55R20 8J (OPT) 102.5 mm (4.04 in.) -52.5 mm (-2.07 in.)
      P275/65R18 8J (OFF-ROAD) 100.1 mm (3.94 in.) -48.4 mm (-1.91 in.)
      USK56L-CRTSKA P255/70R18 8J (STD) 87.0 mm (3.43 in.) -56.2 mm (-2.21 in.)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 -56.1 mm (-2.21 in.)
      P275/65R18 8J (OFF-ROAD) 88.9 mm (3.50 in.) -59.0 mm (-2.32 in.)
      USK56L-CRTLKA P275/65R18 8J (STD)
      P275/55R20 8J (OPT)      		 86.8 mm (3.42 in.) -55.4 mm (-2.18 in.)
      P275/65R18 8J (OFF-ROAD) 88.7 mm (3.49 in.) -58.2 mm (-2.29 in.)

      Standard vehicle height (unloaded vehicle):

      for Double Cab of Long Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD VEHICLE HEIGHT - DOUBLE CAB OF LONG DECK

      Vehicle model Tire size Front A - B Rear C - D
      UCK52L-CHASKA P255/70R18 8J (STD) 100.0 mm (3.94 in.) -53.2 mm (-2.09 in.)
      P275/65R18 8J (OPT) -53.1 mm (-2.09 in.)
      UCK57L-CHASKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 86.6 mm (3.41 in.) -61.7 mm (-2.43 in.)
      USK52L-CHTSKA P255/70R18 8J (STD) 100.3 mm (3.95 in.) -54.2 mm (-2.13 in.)
      P275/65R18 8J (OPT) -54.1 mm (-2.13 in.)
      USK57L-CHTSKA P255/70R18 8J (STD) 85.9 mm (3.38 in.) -57.4 mm (-2.26 in.)
      P275/65R18 8J (OPT) -57.3 mm (-2.26 in.)

      Standard vehicle height (unloaded vehicle): for CrewMax of standard deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD VEHICLE HEIGHT - CREWMAX OF STANDARD DECK

      Vehicle model Tire size Front A - B Rear C - D
      UCK51L-PSASKA P255/70R18 8J (STD)
      P255/70R18 8J (STD and MEXICO)
      P275/65R18 8J (STD)      		 101.2 mm (3.98 in.) -47.8 mm (-1.88 in.)
      P275/65R18 8J (OFF-ROAD) 102.2 mm (4.02 in.) -47.1 mm (-1.85 in.)
      P275/55R20 8J (SPORT) 101.2 mm (3.98 in.) -47.7 mm (-1.88 in.)
      UCK51L-PSALKA P275/65R18 8J (STD)
      P275/55R20 8J (STD)      		 100.5 mm (3.96 in.) -47.0 mm (-1.85 in.)
      P275/65R18 8J (OFF-ROAD) 101.6 mm (4.00 in.) -46.3 mm (-1.82 in.)
      UCK56L-PSASKA P255/70R18 8J (STD)
      P255/70R18 8J (STD and MEXICO)      		 88.5 mm (3.48 in.) -50.1 mm (-1.97 in.)
      P275/65R18 8J (STD)
      P275/55R20 8J (SPORT)      		 -50.0 mm (-1.97 in.)
      P275/65R18 8J (OFF-ROAD) 90.5 mm (3.56 in.) -56.7 mm (-2.23 in.)
      USK51L-PSTSKA P255/70R18 8J (STD)
      P275/65R18 8J (STD)
      P275/55R20 8J (SPORT)      		 101.2 mm (3.98 in.) -51.1 mm (-2.01 in.)
      P275/65R18 8J (OFF-ROAD) 102.8 mm (4.05 in.) -46.6 mm (-1.83 in.)
      USK51L-PSTLKA P275/65R18 8J (STD)
      P275/55R20 8J (STD)      		 101.8 mm (4.01 in.) -50.1 mm (-1.97 in.)
      P275/65R18 8J (OFF-ROAD) 102.5 mm (4.04 in.) -45.5 mm (-1.79 in.)

      Measuring points:

      A: Ground clearance of the front drive shaft center

      B: Ground clearance of the front adjusting cam bolt center

      C: Ground clearance of the rear axle shaft center

      D: Ground clearance of the leaf spring front side bushing center

      If the vehicle height is not as specified, adjust the height by pressing down on the vehicle several times to stabilize the suspension.

  3. INSPECT TOE-IN
      Fig 2: Inspecting Toe-In
      G05159562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Bounce the vehicle up and down at the corners to stabilize the suspension and inspect the toe-in.

      Standard toe-in (unloaded vehicle): for Regular Cab of Standard Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD TOE-IN - REGULAR CAB OF STANDARD DECK

      Vehicle Model Tire size Front A + B
      Rear C - D
      GSK50L-TRADKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 A + B: 0°08' +/-45' (0.14° +/-0.75°)
      C - D: 2.00 +/-2.0 mm (0.0787 +/-0.0787 in.)
      UCK50L-TRADKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 A + B: 0°12' +/-45' (0.20° +/-0.75°)
      C - D: 2.79 +/-2.0 mm (0.1100 +/-0.0787 in.)
      P275/65R18 8J (OFF-ROAD) A + B: 0°10' +/-45' (0.17° +/-0.75°)
      C - D: 2.36 +/-2.0 mm (0.0929 +/-0.0787 in.)
      UCK55L-TRADKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 A + B: 0°11' +/-45' (0.18° +/-0.75°)
      C - D: 2.55 +/-2.0 mm (0.1003 +/-0.0787 in.)
      P275/65R18 8J (OFF-ROAD) A + B: 0°10' +/-45' (0.16° +/-0.75°)
      C - D: 2.22 +/-2.0 mm (0.0874 +/-0.0787 in.)
      USK50L-TRTDKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 A + B: 0°09' +/-45' (0.14° +/-0.75°)
      C - D: 2.00 +/-2.0 mm (0.0787 +/-0.0787 in.)
      P275/65R18 8J (OFF-ROAD) A + B: 0°07' +/-45' (0.11° +/-0.75°)
      C - D: 1.63 +/-2.0 mm (0.0641 +/-0.0787 in.)
      USK55L-TRTDKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 A + B: 0°08' +/-45' (0.14° +/-0.75°)
      C - D: 1.93 +/-2.0 mm (0.0760 +/-0.0787 in.)
      P275/65R18 8J (OFF-ROAD) A + B: 0°07' +/-45' (0.12° +/-0.75°)
      C - D: 1.68 +/-2.0 mm (0.0661 +/-0.0787 in.)

      Standard toe-in (unloaded vehicle): for Regular Cab of Long Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD TOE-IN - REGULAR CAB OF LONG DECK

      Vehicle Model Tire size Front A + B
      Rear C - D
      GSK51L-THADKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 A + B: 0°14' +/-45' (0.23° +/-0.75°)
      C - D: 3.33 +/-2.0 mm (0.1311 +/-0.0787 in.)
      P255/70R18 8J (MEXICO) A + B: 0°21' +/-45' (0.35° +/-0.75°)
      C - D: 4.95 +/-2.0 mm (0.1949 +/-0.0787 in.)
      UCK51L-THADKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 A + B: 0°14' +/-45' (0.24° +/-0.75°)
      C - D: 3.41 +/-2.0 mm (0.1343 +/-0.0787 in.)
      P255/70R18 8J (MEXICO) A + B: 0°19' +/-45' (0.31° +/-0.75°)
      C - D: 4.34 +/-2.0 mm (0.1709 +/-0.0787 in.)
      UCK56L-THADKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 A + B: 0°14' +/-45' (0.24° +/-0.75°)
      C - D: 3.37 +/-2.0 mm (0.1327 +/-0.0787 in.)
      P255/70R18 8J (MEXICO) A + B: 0°19' +/-45' (0.32° +/-0.75°)
      C - D: 4.51 +/-2.0 mm (0.1776 +/-0.0787 in.)
      USK51L-THTDKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 A + B: 0°13' +/-45' (0.21° +/-0.75°)
      C - D: 2.97 +/-2.0 mm (0.1169 +/-0.0787 in.)
      USK56L-THTDKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 A + B: 0°13' +/-45' (0.22° +/-0.75°)
      C - D: 3.10 +/-2.0 mm (0.1220 +/-0.0787 in.)

      Standard toe-in (unloaded vehicle): for Double Cab of Standard Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD TOE-IN - DOUBLE CAB OF STANDARD DECK

      Vehicle Model Tire size Front A + B
      Rear C - D
      GSK51L-CRASKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 A + B: 0°22' +/-45' (0.37° +/-0.75°)
      C - D: 5.28 +/-2.0 mm (0.2079 +/-0.0787 in.)
      UCK51L-CRASKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 A + B: 0°21' +/-45' (0.35° +/-0.75°)
      C - D: 4.98 +/-2.0 mm (0.1961 +/-0.0787 in.)
      P275/65R18 8J (OFF-ROAD) A + B: 0°19' +/-45' (0.31° +/-0.75°)
      C - D: 4.40 +/-2.0 mm (0.1732 +/-0.0787 in.)
      UCK51L-CRALKA P275/65R18 8J (STD)
      P275/55R20 8J (OPT)      		 A + B: 0°22' +/-45' (0.37° +/-0.75°)
      C - D: 5.24 +/-2.0 mm (0.2063 +/-0.0787 in.)
      P275/65R18 8J (OFF-ROAD) A + B: 0°20' +/-45' (0.33° +/-0.75°)
      C - D: 4.64 +/-2.0 mm (0.1827 +/-0.0787 in.)
      UCK56L-CRASKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 A + B: 0°20' +/-45' (0.34° +/-0.75°)
      C - D: 4.79 +/-2.0 mm (0.1886 +/-0.0787 in.)
      P275/65R18 8J (OFF-ROAD) A + B: 0°18' +/-45' (0.30° +/-0.75°)
      C - D: 4.27 +/-2.0 mm (0.1681 +/-0.0787 in.)
      UCK56L-CRALKA P275/65R18 8J (STD)
      P275/55R20 8J (OPT)      		 A + B: 0°21' +/-45' (0.35° +/-0.75°)
      C - D: 4.99 +/-2.0 mm (0.1965 +/-0.0787 in.)
      P275/65R18 8J (OFF-ROAD) A + B: 0°19' +/-45' (0.31° +/-0.75°)
      C - D: 4.45 +/-2.0 mm (0.1752 +/-0.0787 in.)
      USK51L-CRTSKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 A + B: 0°22' +/-45' (0.33° +/-0.75°)
      C - D: 4.73 +/-2.0 mm (0.1862 +/-0.0787 in.)
      P275/65R18 8J (OFF-ROAD) A + B: 0°17' +/-45' (0.29° +/-0.75°)
      C - D: 4.17 +/-2.0 mm (0.1642 +/-0.0787 in.)
      USK51L-CRTLKA P275/65R18 8J (STD)
      P275/65R18 8J (OFF-ROAD)      		 A + B: 0°20' +/-45' (0.34° +/-0.75°)
      C - D: 4.85 +/-2.0 mm (0.1909 +/-0.0787 in.)
      P275/55R20 8J (OPT) A + B: 0°18' +/-45' (0.30° +/-0.75°)
      C - D: 4.29 +/-2.0 mm (0.1689 +/-0.0787 in.)
      USK56L-CRTSKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 A + B: 0°20' +/-45' (0.33° +/-0.75°)
      C - D: 4.72 +/-2.0 mm (0.1858 +/-0.0787 in.)
      P275/65R18 8J (OFF-ROAD) A + B: 0°18' +/-45' (0.30° +/-0.75°)
      C - D: 4.21 +/-2.0 mm (0.1657 +/-0.0787 in.)
      USK56L-CRTLKA P275/65R18 8J (STD)
      P275/55R20 8J (OPT)      		 A + B: 0°20' +/-45' (0.34° +/-0.75°)
      C - D: 4.79 +/-2.0 mm (0.1886 +/-0.0787 in.)
      P275/65R18 8J (OFF-ROAD) A + B: 0°18' +/-45' (0.30° +/-0.75°)
      C - D: 4.27 +/-2.0 mm (0.1681 +/-0.0787 in.)

      Standard toe-in (unloaded vehicle): for Double Cab of Long Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD TOE-IN - DOUBLE CAB OF LONG DECK

      Vehicle Model Tire size Front A + B
      Rear C-D
      UCK52L-CHASKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 A + B: 0°20' +/-45' (0.34° +/-0.75°)
      C - D: 4.84 +/-2.0 mm (0.1906 +/-0.0787 in.)
      UCK57L-CHASKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 A + B: 0°20' +/-45' (0.34° +/-0.75°)
      C - D: 4.85 +/-2.0 mm (0.1909 +/-0.0787 in.)
      USK52L-CHTSKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 A + B: 0°20' +/-45' (0.34° +/-0.75°)
      C - D: 4.78 +/-2.0 mm (0.1882 +/-0.0787 in.)
      USK57L-CHTSKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 A + B: 0°21' +/-45' (0.35° +/-0.75°)
      C - D: 4.98 +/-2.0 mm (0.1961 +/-0.0787 in.)

      Standard toe-in (unloaded vehicle): for CrewMax of standard deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD TOE-IN - CREWMAX OF STANDARD DECK

      Vehicle Model Tire size Front A + B
      Rear C-D
      UCK51L-PSASKA P255/70R18 8J (STD)
      P255/70R18 8J (STD and MEXICO)
      P27S/65R18 8J (STD)
      P275/55R20 8J (SPORT)      		 A + B: 0°19' +/-45' (0.32° +/-0.75°)
      C - D: 4.54 +/-2.0 mm (0.1787 +/-0.0787 in.)
      P275/65R18 8J (OFF-ROAD) A + B: 0°18' +/-45' (0.30° +/-0.75°)
      C - D: 4.25 +/-2.0 mm (0.1673 +/-0.0787 in.)
      UCK51L-PSALKA P275/65R18 8J (STD)
      P275/55R20 8J (STD)      		 A + B: 0°20' +/-45' (0.33° +/-0.75°)
      C - D: 4.71 +/-2.0 mm (0.1854 +/-0.0787 in.)
      P275/65R18 8J (OFF-ROAD) A + B: 0°19' +/-45' (0.31° +/-0.75°)
      C - D: 4.40 +/-2.0 mm (0.1732 +/-0.0787 in.)
      UCK56L-PSASKA P255/70R18 8J (STD)
      P255/70R18 8J (STD and MEXICO)
      P275/65R18 8J (STD)
      P275/55R20 8J (SPORT)      		 A + B: 0°17' +/-45' (0.29° +/-0.75°)
      C - D: 4.13 +/-2.0 mm (0.1626 +/-0.0787 in.)
      P275/65R18 8J (OFF-ROAD) A + B: 0°16' +/-45' (0.26° +/-0.75°)
      C - D: 3.69 +/-2.0 mm (0.1453 +/-0.0787 in.)
      UCK56L-PSALKA P275/65R18 8J (STD)
      P275/55R20 8J (STD)      		 A + B: 0°18' +/-45' (0.30° +/-0.75°)
      C - D: 4.25 +/-2.0 mm (0.1673 +/-0.0787 in.)
      P27S/65R18 8J (OFF-ROAD) A + B: 0°16' +/-45' (0.27° +/-0.75°)
      C - D: 3.79 +/-2.0 mm (0.1492 +/-0.0787 in.)
      USK51L-PSTSKA P255/70R18 8J (STD)
      P275/65R18 8J (STD)
      P275/55R20 8J (SPORT)      		 A + B: 0°19' +/-45' (0.31° +/-0.75°)
      C - D: 4.35 +/-2.0 mm (0.1713 +/-0.0787 in.)
      P275/65R18 8J (OFF-ROAD) A + B: 0°17' +/-45' (0.29° +/-0.75°)
      C - D: 4.07 +/-2.0 mm (0.1602 +/-0.0787 in.)
      USK51L-PSTLKA P275/65R18 8J (STD)
      P275/55R20 8J (STD)      		 A + B: 0°19' +/-45' (0.31° +/-0.75°)
      C - D: 4.40 +/-2.0 mm (0.1732 +/-0.0787 in.)
      P275/65R18 8J (OFF-ROAD) A + B: 0°17' +/-45' (0.29° +/-0.75°)
      C - D: 4.12 +/-2.0 mm (0.1622 +/-0.0787 in.)
      USK56L-PSTSKA P255/70R18 8J (STD)
      P275/65R18 8J (STD)
      P275/55R20 8J (SPORT)      		 A + B: 0°18' +/-45' (0.30° +/-0.75°)
      C - D: 4.25 +/-2.0 mm (0.1673 +/-0.0787 in.)
      P275/65R18 8J (OFF-ROAD) A + B: 0°16' +/-45' (0.27° +/-0.75°)
      C - D: 3.79 +/-2.0 mm (0.1492 +/-0.0787 in.)
      USK56L-PSTLKA P275/65R18 8J (STD) A + B: 0°18' +/-45' (0.30° +/-0.75°)
      C - D: 4.33 +/-2.0 mm (0.1705 +/-0.0787 in.)
      P275/55R20 8J (STD) A + B: 0°19' +/-45' (0.31° +/-0.75°)
      C - D: 4.33 +/-2.0 mm (0.1705 +/-0.0787 in.)
      P275/65R18 8J (OFF-ROAD) A + B: 0°16' +/-45' (0.27° +/-0.75°)
      C - D: 3.87 +/-2.0 mm (0.1524 +/-0.0787 in.)

      If the toe-in is not as specified, adjust it at the rack ends.

  4. ADJUST TOE-IN
    Fig 3: Adjusting Toe-In
    G05159563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Release the rack boot set clips.
    2. Loosen the tie rod end lock nuts.
    3. Turn the right and left rack ends by an equal amount to adjust the toe-in to the center value.
    4. Check that the length of the right and left rack ends are approximately the same.

      Standard difference: 0 +/-1 mm (0 +/-0.0394 in.) or less

    5. Tighten the tie rod end lock nuts.

      Torque: 69 N*m (704 kgf*cm, 51 ft.*lbf)

    6. Place the boots on the seats and install the clips.

      HINT:

      Make sure that the boots are not twisted.

  5. INSPECT WHEEL ANGLE
    1. Turn the steering wheel to the left and right full lock positions, and measure the turning angle.

      Standard wheel angle (unloaded vehicle): for Regular Cab of Standard Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD WHEEL ANGLE - REGULAR CAB OF STANDARD DECK

      Vehicle Model Tire size Inside wheel angle Outside wheel angle (reference)
      GSK50L-TRADKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 -38° to -41°59' (-38.99° to -41.99°) 36°21' (36.35°)
      UCK50L-TRADKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 -39°02' to -42°02' (-39.03° to -42.03°) 36°26' (36.44°)
      P275/65R18 8J (OFF-ROAD) -39°01' to -42°01' (-39.01° to -42.01°) 36°23' (36.39°)
      UCK55L-TRADKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P27S/55R20 8J (SPORT)      		 -39°25' to -42°25' (-39.41° to -42.41°) 36°41' (36.69°)
      P275/65R18 8J (OFF-ROAD) -39°23' to -42°23' (-39.39° to -42.39°) 36°40' (36.66°)
      USK50L-TRTDKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 -38°59' to -41°59' (-38.99° to -41.99°) 36°21' (36.35°)
      P275/65R18 8J (OFF-ROAD) -38°58' to -41°58' (-38.96° to -41.96°) 36°19'(36.31°)
      USK55L-TRTDKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 -39°23' to -42°23' (-39.38° to -42.38°) 36°38' (36.63°)
      P275/65R18 8J (OFF-ROAD) -39°22' to -42°22' (-39.37° to -42.37°) 36°36' (36.60°)

      Standard wheel angle (unloaded vehicle): for Regular Cab of Long Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD WHEEL ANGLE - REGULAR CAB OF LONG DECK

      Vehicle Model Tire size Inside wheel angle Outside wheel angle (reference)
      GSK51L-THADKA P25S/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 -39°04' to -42°04' (-39.06° to -42.06°) 36°29' (36.49°)
      P255/70R18 8J (MEXICO) -39°30' to -42°30' (-39.50° to -42.50°) 36°56' (36.93°)
      UCK51L-THADKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 -39°04' to -42°04' (-39.06° to -42.06°) 36°30' (36.50°)
      P255/70R18 8J (MEXICO) -39°28' to -42°28' (-39.47° to -42.47°) 36°52' (36.87°)
      UCK56L-THADKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 -39°26' to -42°26' (-39.44° to -42.44°) 36°46' (36.77°)
      P255/70R18 8J (MEXICO) -39°29' to -42°29' (-39.48° to -42.48°) 36°53' (36.88°)
      USK51L-THTDKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 -39°02' to -42°02' (-39.04° to -42.04°) 36°27' (36.45°)
      USK56L-THTDKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 -39°26' to -42°26' (-39.43° to -42.43°) 36°45' (36.75°)

      Standard wheel angle (unloaded vehicle): for Double Cab of Standard Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD WHEEL ANGLE - DOUBLE CAB OF STANDARD DECK

      Vehicle Model Tire size Inside wheel angle Outside wheel angle (reference)
      GSK51L-CRASKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 -39°09' to -42°09' (-39.15° to -42.15°) 36°42' (36.70°)
      UCK51L-CRASKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 -39°08' to -42°08' (-39.14° to -42.14°) 36°40' (36.67°)
      P275/65R18 8J (OFF-ROAD) -39°07' to -42°07' (-39.11° to -42.11°) 36°37' (36.61°)
      UCK51L-CRALKA P275/70R18 8J (STD)
      P275/55R20 8J (OPT)      		 -39°09' to -42°09' (-39.15° to -42.15°) 36°42' (36.70°)
      P275/65R18 8J (OFF-ROAD) -39°07' to -42°07' (-39.12° to -42.12°) 36°38' (36.63°)
      UCK56L-CRASKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 -39°29' to -42°29' (-39.49° to -42.49°) 36°55' (36.91°)
      P275/65R18 8J (OFF-ROAD) -39°28' to -42°28' (-39.47° to -42.47°) 36°52' (36.86°)
      UCK56L-CRALKA P275/65R18 8J (STD)
      P275/55R20 8J (OPT)      		 -39°30' to -42°30' (-39.50° to -42.50°) 36°56' (36.93°)
      P275/65R18 8J (OFF-ROAD) -39°29' to -42°29' (-39.48° to -42.48°) 36°53' (36.88°)
      USK51L-CRTSKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 -39°08' to -42°08' (-39.13° to -42.13°) 36°38' (36.64°)
      P275/65R18 8J (OFF-ROAD) -39°06' to -42°06' (-39.10° to -42.10°) 36°35' (36.58°)
      USK51L-CRTLKA P275/65R18 8J (STD)
      P275/65R18 8J (OFF-ROAD)      		 -39°08' to -42°08' (-39.13° to -42.13°) 36°40' (36.66°)
      P275/55R20 8J (OPT) -39°01' to -42°07' (-39.11° to -42.11°) 36°36' (36.60°)
      USK56L-CRTSKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 -39°29' to -42°29' (-39.49° to -42.49°) 36°54' (36.90°)
      P275/65R18 8J (OFF-ROAD) -39°28' to -42°28' (-39.47° to -42.47°) 36°52' (36.86°)
      USK56L-CRTLKA P275/65R18 8J (STD)
      P275/55R20 8J (OPT)      		 -39°29' to -42°291 (-39.49° to -42.49°) 36°55' (36.91°)
      P275/65R18 8J (OFF-ROAD) -39°28' to -42°28' (-39.47° to -42.47°) 36°52' (36.86°)

      Standard wheel angle (unloaded vehicle): for Double Cab of Long Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD WHEEL ANGLE - DOUBLE CAB OF LONG DECK

      Vehicle Model Tire size Inside wheel angle Outside wheel angle (reference)
      UCK52L-CHASKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 -39°08' to -42°08' (-39.13° to -42.13°) 36°39' (36.65°)
      UCK57L-CHASKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 -39°29' to -42°29' (-39.49° to -42.49°) 36°55' (36.92°)
      USK52L-CHTSKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 -39°08' to -42°08' (-39.13° to -42.13°) 36°39' (36.65°)
      USK57L-CHTSKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)      		 -39°29' to -42°29' (-39.50° to -42.50°) 36°56' (36.93°)

      Standard wheel angle (unloaded vehicle): for CrewMax of standard deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD WHEEL ANGLE - CREWMAX OF STANDARD DECK

      Vehicle Model Tire size Inside wheel angle Outside wheel angle (reference)
      UCK51L-PSASKA P255/70R18 8J (STD)
      P255/70R18 8J (STD and MEXICO)
      P275/65R18 8J (STD)
      P275/55R20 8J (SPORT)      		 -39°07' to -42°07' (-39.12° to -42.12°) 36°37' (36.62°)
      P275/65R18 8J (OFF-ROAD) -39°06' to -42°06' (-39.10° to -42.10°) 36°35' (36.59°)
      UCK51L-PSALKA P275/65R18 8J (STD)
      P275/55R20 8J (STD)      		 -39°08' to -42°08' (-39.13° to -42.13°) 36°38' (36.64°)
      P275/65R18 8J (OFF-ROAD) -39°07' to -42°07' (-39.11° to -42.11°) 36°37' (36.61°)
      UCK56L-PSASKA P255/70R18 8J (STD)
      P255/70R18 8J (STD and MEXICO)
      P275/65R18 8J (STD)
      P275/55R20 8J (SPORT)      		 -39°28' to -42°28' (-39.47° to -42.47°) 36°51' (36.85°)
      P275/65R18 8J (OFF-ROAD) -39°27' to -42°27' (-39.45° to -42.45°) 36°48' (36.80°)
      UCK56L-PSALKA P275/65R18 8J (STD)
      P275/55R20 8J (STD)      		 -39°28' to -42°28' (-39.47° to -42.47°) 36°52' (36.86°)
      P275/65R18 8J (OFF-ROAD) -39°27' to -42°27' (-39.45° to -42.45°) 36°49' (36.81°)
      USK51L-PSTSKA P255/70R18 8J (STD)
      P275/65R18 8J (STD)
      P275/55R20 8J (SPORT)      		 -39°07' to -42°07' (-39.11° to -42.11°) 36°36' (36.60°)
      P275/65R18 8J (OFF-ROAD) -39°06' to -42°06' (-39.10° to -42.10°) 36°34' (36.57°)
      USK51L-PSTLKA P275/65R18 8J (STD)
      P275/55R20 8J (STD)      		 -39°07' to -42°07' (-39.11° to -42.11°) 36°37' (36.61°)
      P275/65R18 8J (OFF-ROAD) -39°06' to -42°06' (-39.10° to -42.10°) 36°35' (36.58°)
      USK56L-PSTSKA P255/70R18 8J (STD)
      P275/65R18 8J (STD)
      P275/55R20 8J (SPORT)      		 -39°28' to -42°28' (-39.47° to -42.47°) 36°52' (36.86°)
      P275/65R18 8J (OFF-ROAD) -39°27' to -42°27' (-39.45° to -42.45°) 36°49' (36.81°)
      USK56L-PSTLKA P275/65R18 8J (STD)
      P275/55R20 8J (STD)      		 -39°28' to -42°28' (-39.47° to -42.47°) 36°52' (36.87°)
      P275/65R18 8J (OFF-ROAD) -39°28' to -42°28' (-39.46° to -42.46°) 36°49' (36.82°)
  6. INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION
    1. Install the camber-caster-kingpin gauge or place the front wheels on the center of the wheel alignment tester.
    2. Inspect the camber, caster and steering axis inclination.

      Standard camber inclination (unloaded vehicle): for Regular Cab of Standard Deck

      Fig 4: Identifying Camber-Caster-Kingpin Gauge On Wheel Alignment Tester
      G04964553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      TIRE SIZE SPECIFICATION

      Vehicle Model Tire Size Camber Inclination
      GSK50L-TRADKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 -0°11' +/-45' (-0.18° +/-0.75°) 30' (0.50°) or less
      UCK50L-TRADKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)
      P275/55R20 8J (SPORT)      		 -0°07' +/-45' (-0.11° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) -0°09' +/-45' (-0.15° +/-0.75°) 30' (0.50°) or less
      UCK55L-TRADKA P255/70R18 8J(STD)
      P275/65R18 8J (OPT)      		 0°10' +/-45'(0.17° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 0°09' +/-45' (0.15° +/-0.75°) 30' (0.50°) or less
      P275/55R20 8J (SPORT) -0°04' +/-45' (-0.07° +/-0.75°) 30' (0.50°) or less
      USK50L-TRTDKA P255/70R18 8J(STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 -0°11' +/-45' (-0.18° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) -0°13' +/-45'(-0.21° +/-0.75°) 30' (0.50°) or less
      USK55L-TRTDKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 0°08' +/-45'(0.13° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 0°07' +/-45' (0.12° +/-0.75°) 30' (0.50°) or less
      P275/55R20 8J (SPORT) -0°02' +/-45' (-0.04° +/-0.75°) 30' (0.50°) or less

      Standard camber inclination (unloaded vehicle): for Regular Cab of Long Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD CAMBER INCLINATION - REGULAR CAB OF LONG DECK

      Vehicle Model Tire Size Camber Inclination
      GSK51L-THADKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 -0°04' +/-45' (-0.07° +/-0.75°) 30' (0.50°) or less
      P255/70R18 8J (MEXICO) 0°19' +/-45'(0.32° +/-0.75°) 30' (0.50°) or less
      UCK51L-THADKA P255/70R18 8J (STD)
      P275/65R18 8J(OPT)      		 -0°04' +/-45' (-0.07° +/-0.75°) 30' (0.50°) or less
      P255/70R18 8J (MEXICO) 0°17' +/-45' (0.28° +/-0.75°) 30' (0.50°) or less
      UCK56L-THADKA P255/70R18 8J(STD)
      P275/65R18 8J (OPT)      		 0°13' +/-45'(0.22° +/-0.75°) 30' (0.50°) or less
      P255/70R18 8J (MEXICO) 0°17' +/-45'(0.29° +/-0.75°) 30' (0.50°) or less
      USK51L-THTDKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 -0°06' +/-45' (-0.10° +/-0.75°) 30' (0.50°) or less
      USK56L-THTDKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 0°13' +/-45' (0.21° +/-0.75°) 30' (0.50°) or less

      Standard camber inclination (unloaded vehicle): for Double Cab of Standard Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD CAMBER INCLINATION - DOUBLE CAB OF STANDARD DECK

      Vehicle Model Tire Size Camber Inclination
      GSK51L-CRASKA P255/70R18 8J (STD)
      P275/65R18 8J(OPT)      		 0°04' +/-45' (0.07° +/-0.75°) 30' (0.50°) or less
      UCK51L-CRASKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)
      P275/55R20 8J (SPORT)      		 0°03' +/-45' (0.05° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 0°01' +/-45' (0.01° +/-0.75°) 30' (0.50°) or less
      UCK51L-CRALKA P275/65R18 8J (STD)
      P275/55R20 8J (OPT)      		 0°04' +/-45' (0.07° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 0°01' +/-45' (0.02° +/-0.75°) 30' (0.50°) or less
      UCK56L-CRASKA P255/70R18 8J (STD)
      P275/65R18 8J(OPT)      		 0°19' +/-45' (0.31° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 0°17' +/-45'(0.28° +/-0.75°) 30' (0.50°) or less
      P275/55R20 8J (SPORT) -0°14' +/-45' (-0.23° +/-0.75°) 30' (0.50°) or less
      UCK56L-CRALKA P275/65R18 8J (STD) 0°19' +/-45' (0.32° +/-0.75°) 30' (0.50°) or less
      P275/55R20 8J (OPT) -0°15' +/-45' (-0.25° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 0°17' +/-45'(0.29° +/-0.75°) 30' (0.50°) or less
      USK51L-CRTSKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)
      P275/55R20 8J (SPORT)      		 0°02' +/-45' (0.03° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) -0°01' +/-45' (-0.01° +/-0.75°) 30' (0.50°) or less
      USK51L-CRTLKA P275/65R18 8J(STD)
      P275/65R18 8J (OFF-ROAD)      		 0°02' +/-45' (0.04° +/-0.75°) 30' (0.50°) or less
      P275/55R20 8J (OPT) 0°00' +/-45' (0.00° +/-0.75°) 30' (0.50°) or less
      USK56L-CRTSKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 0°18' +/-45'(0.30° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 0°17' +/-45' (0.28° +/-0.75°) 30' (0.50°) or less
      P275/55R20 8J (SPORT) -0°14' +/-45' (-0.23° +/-0.75°) 30' (0.50°) or less
      USK56L-CRTLKA P275/65R18 8J(STD) 0°19' +/-45'(0.31° +/-0.75°) 30' (0.50°) or less
      P275/55R20 8J (OPT) -0°14' +/-45' (-0.23° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 0°17' +/-45' (0.28° +/-0.75°) 30' (0.50°) or less

      Standard camber inclination (unloaded vehicle): for Double Cab of Long Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD CAMBER INCLINATION - DOUBLE CAB OF LONG DECK

      Vehicle Model Tire Size Camber Inclination
      UCK52L-CHASKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 0°02' +/-45' (0.04° +/-0.75°) 30' (0.50°) or less
      UCK57L-CHASKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 0°19' +/-45'(0.31° +/-0.75°) 30' (0.50°) or less
      USK52L-CHTSKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 0°02' +/-45' (0.03° +/-0.75°) 30' (0.50°) or less
      USK57L-CHTSKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 0°19' +/-45' (0.32° +/-0.75°) 30' (0.50°) or less

      Standard camber inclination (unloaded vehicle): for CrewMax of standard deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD CAMBER INCLINATION - CREWMAX OF STANDARD DECK

      Vehicle Model Tire Size Camber Inclination
      UCK51L-PSASKA P255/70R18 8J(STD)
      P255/70R18 8J(STD and MEXICO)
      P275/65R18 8J(STD)
      P275/55R20 8J (SPORT)      		 0°01' +/-45' (0.02° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 0°00' +/-45' (0.00° +/-0.75°) 30' (0.50°) or less
      UCK51L-PSALKA P275/65R18 8J(STD)
      P275/55R20 8J (STD)      		 0°02' +/-45' (0.03° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 0°01' +/-45' (0.01° +/-0.75°) 30' (0.50°) or less
      UCK56L-PSASKA P255/70R18 8J(STD)
      P255/70R18 8J(STD and MEXICO)
      P275/65R18 8J (STD)
      P275/55R20 8J (SPORT)      		 0°16' +/-45' (0.27° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 0°14' +/-45'(0.24° +/-0.75°) 30' (0.50°) or less
      P275/55R20 8J (SPORT) -0°10' +/-45' (-0.17° +/-0.75°) 30' (0.50°) or less
      UCK56L-PSALKA P275/65R18 8J(STD) 0°17' +/- 45'(0.28° +/-0.75°) 30' (0.50°) or less
      P275/55R20 8J (STD) -0°11' +/-45' (-0.18° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 0°15' +/-45'(0.25° +/-0.75°) 30' (0.50°) or less
      USK51L-PSTSKA P255/70R18 8J (STD)
      P275/65R18 8J (STD)
      P275/55R20 8J (SPORT)      		 0°00' +/-45' (0.00° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) -0°01' +/-45' (-0.02° +/-0.75°) 30' (0.50°) or less
      USK51L-PSTLKA P275/65R18 8J(STD)
      P275/55R20 8J (STD)      		 0°01' +/-45'(0.01° +/-0.75) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) -0°01' +/-45' (-0.01° +/-0.75°) 30' (0.50°) or less
      USK56L-PSTSKA P255/70R18 8J (STD)
      P275/65R18 8J(STD)      		 0°17' +/-45' (0.28° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 0°15' +/-45'(0.25° +/-0.75°) 30' (0.50°) or less
      P275/55R20 8J (SPORT) -0°11' +/-45' (-0.18° +/-0.75°) 30' (0.50°) or less
      USK56L-PSTLKA P275/65R18 8J(STD) 0°17' +/-45' (0.28° +/-0.75°) 30' (0.50°) or less
      P275/55R20 8J (STD) 0°15' +/-45' (0.25° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) -0°11' +/-455'(-0.19° +/-0.75°) 30' (0.50°) or less

      Standard caster inclination (unloaded vehicle): for Regular Cab of Standard Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD CASTER INCLINATION - FOR REGULAR CAB OF STANDARD DECK

      Vehicle Model Tire Size Caster Inclination
      GSK50L-TRADKA P255/70R18 8J (STD)
      P275/65R18 8J(OPT)      		 2°45' +/-45' (2.75° +/-0.75°) 30' (0.50°) or less
      UCK50L-TRADKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)
      P275/55R20 8J (SPORT)      		 2°31' +/-45' (2.52° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 2°38' +/-45' (2.64° +/-0.75°) 30' (0.50°) or less
      UCK55L-TRADKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)
      P275/55R20 8J (SPORT)      		 2°16' +/-45' (2.26° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 2°19' +/-45'(2.31° +/-0.75°) 30' (0.50°) or less
      USK50L-TRTDKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)
      P275/55R20 8J (SPORT)      		 2°31' +/-45'(2.51° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 2°37' +/-45' (2.62° +/-0.75°) 30' (0.50°) or less
      USK55L-TRTDKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)
      P275/55R20 8J (SPORT)      		 2°16' +/-45' (2.27° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 2°19' +/-45'(2.31° +/-0.75°) 30' (0.50°) or less

      Standard caster inclination (unloaded vehicle): for Regular Cab of Long Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD CASTER INCLINATION - FOR REGULAR CAB OF LONG DECK

      Vehicle Model Tire Size Caster Inclination
      GSK51L-THADKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 2°54' +/-45' (2.90° +/-0.75°) 30' (0.50°) or less
      P255/70R18 8J (MEXICO) 2°20' +/-45' (2.34° +/-0.75°) 30' (0.50°) or less
      UCK51L-THADKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 2°43' +/-45' (2.71° +/-0.75°) 30' (0.50°) or less
      P255/70R18 8J (MEXICO) 2°25' +/-45' (2.41° +/-0.75°) 30' (0.50°) or less
      UCK56L-THADKA P255/70R18 8J(STD) 2°25' +/-45' (2.42° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J(OPT) 2°25' +/-45' (2.41° +/-0.75°) 30' (0.50°) or less
      P255/70R18 8J (MEXICO) 2°23' +/-45' (2.39° +/-0.75°) 30' (0.50°) or less
      USK51L-THTDKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 2°44' +/-45' (2.73° +/-0.75°) 30' (0.50°) or less
      USK56L-THTDKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 2°26' +/-45' (2.43° +/-0.75°) 30' (0.50°) or less

      Standard caster inclination (unloaded vehicle): for Double Cab of Standard Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD CASTER INCLINATION - DOUBLE CAB OF STANDARD DECK

      Vehicle Model Tire Size Caster Inclination
      GSK51L-CRASKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 2°49' +/-45' (2.82° +/-0.75°) 30' (0.50°) or less
      UCK51L-CRASKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)
      P275/55R20 8J (SPORT)      		 2°52' +/-45' (2.87° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 2°57' +/-45' (2.95° +/-0.75°) 30' (0.50°) or less
      UCK51L-CRALKA P275/65R18 8J(STD)
      P275/55R20 8J (OPT)      		 2°53' +/-45' (2.89° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 2°59' +/-45' (2.98° +/-0.75°) 30' (0.50°) or less
      UCK56L-CRASKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)
      P275/55R20 8J (SPORT)      		 2°35' +/-45' (2.58° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 2°37' +/-45' (2.62° +/-0.75°) 30' (0.50°) or less
      UCK56L-CRALKA P275/65R18 8J (STD)
      P275/55R20 8J (OPT)      		 2°40' +/-45' (2.67° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 2°38' +/-45' (2.63° +/-0.75°) 30' (0.50°) or less
      USK51L-CRTSKA P255/70R18 8J (STD)
      P275/65R18 8J(OPT)
      P275/55R20 8J (SPORT)      		 2°51' +/-45'(2.85° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 2°58' +/-45' (2.96° +/-0.75°) 30' (0.50°) or less
      USK51L-CRTLKA P275/65R18 8J(STD) 2°52' +/-45' (2.87° +/-0.75°) 30' (0.50°) or less
      P275/55R20 8J (OPT) 2°53' +/-45' (2.89° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 2°58' +/-45' (2.96° +/-0.75°) 30' (0.50°) or less
      USK56L-CRTSKA P255/70R18 8J(STD) 2°41' +/-45' (2.68° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J(OPT)
      P275/55R20 8J (SPORT)      		 2°40' +/-45' (2.67° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 2°38' +/-45' (2.63° +/-0.75°) 30' (0.50°) or less
      USK56L-CRTLKA P275/65R18 8J (STD)
      P275/55R20 8J (OPT)      		 2°41' +/-45' (2.69° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 2°39' +/-45' (2.65° +/-0.75°) 30' (0.50°) or less

      Standard caster inclination (unloaded vehicle): for Double Cab of Long Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD CASTER INCLINATION - FOR DOUBLE CAB OF LONG DECK

      Vehicle Model Tire Size Caster Inclination
      UCK52L-CHASKA P255/70R18 8J (STD) 3°00' +/-45' (3.00° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J(OPT) 2°59' +/-45' (2.99° +/-0.75°) 30' (0.50°) or less
      UCK57L-CHASKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 2°41' +/-45' (2.68° +/-0.75°) 30' (0.50°) or less
      USK52L-CHTSKA P255/70R18 8J (STD) 2°59' +/-45' (2.99° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OPT) 2°59' +/-45' (2.98° +/-0.75°) 30' (0.50°) or less
      USK57L-CHTSKA P255/70R18 8J (STD) 2°46' +/-45' (2.76° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J(OPT) 2°45' +/-45' (2.75° +/-0.75°) 30' (0.50°) or less

      Standard caster inclination (unloaded vehicle): for CrewMax of standard deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD CASTER INCLINATION - FOR CREWMAX OF STANDARD DECK

      Vehicle Model Tire Size Caster Inclination
      UCK51L-PSASKA P255/70R18 8J (STD)
      P255/70R18 8J (STD and MEXICO)      		 2°59' +/-45' (2.99° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J(STD)
      P275/55R20 8J (SPORT)      		 2°59' +/-45' (2.98° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 3°01' +/-45'(3.01° +/-0.75°) 30' (0.50°) or less
      UCK51L-PSALKA P275/65R18 8J(STD)
      P275/55R20 8J (STD)      		 3°00' +/-45' (3.00° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 3°01' +/-45' (3.02° +/-0.75°) 30' (0.50°) or less
      UCK56L-PSASKA P255/70R18 8J(STD)
      P255/70R18 8J (STD and MEXICO)      		 2°49' +/-45' (2.82° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J(STD)
      P275/55R20 8J (SPORT)      		 2°49' +/-45' (2.81° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 2°41' +/-45' (2.69° +/-0.75°) 30' (0.50°) or less
      UCK56L-PSALKA P275/65R18 8J(STD) 2°49' +/-45' (2.82° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 2°42' +/-45' (2.70° +/-0.75°) 30' (0.50°) or less
      P275/55R20 8J (STD) 2°50' +/-45' (2.83° +/-0.75°) 30' (0.50°) or less
      USK51L-PSTSKA P255/70R18 8J(STD)
      P275/65R18 8J (STD)
      P275/55R20 8J (SPORT)      		 2°56' +/-45' (2.93° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 3°02' +/-45' (3.03° +/-0.75°) 30' (0.50°) or less
      USK51L-PSTLKA P275/65R18 8J(STD)
      P275/55R20 8J (STD)      		 2°57' +/-45' (2.95° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 3°03' +/-45' (3.05° +/-0.75°) 30' (0.50°) or less
      USK56L-PSTSKA P255/70R18 8J(STD)
      P275/65R18 8J (STD)
      P275/55R20 8J (SPORT)      		 2°40' +/-45' (2.67° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 2°41' +/-45' (2.68° +/-0.75°) 30' (0.50°) or less
      USK56L-PSTLKA P275/65R18 8J(STD)
      P275/55R20 8J (STD)
      P275/65R18 8J (OFF-ROAD)      		 2°41' +/-45' (2.69° +/-0.75°) 30' (0.50°) or less

      Standard steering axis inclination (unloaded vehicle): for Regular Cab of Standard Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD STEERING AXIS INCLINATION - REGULAR CAB OF STANDARD DECK

      Vehicle Model Tire Size Steering Axis Inclination
      GSK50L-TRADKA P255/70R18 8J(STD)
      P275/65R18 8J (OPT)      		 13°12' +/-45' (13.20° +/-0.75°) 30' (0.50°) or less
      UCK50L-TRADKA P255/70R18 8J (STD)
      P275/65R18 8J(OPT)
      P275/55R20 8J (SPORT)      		 13°08' +/-45' (13.13° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 13°10' +/-45' (13.17° +/-0.75°) 30' (0.50°) or less
      UCK55L-TRADKA P255/70R18 8J (STD)
      P275/65R18 8J(OPT)
      P275/55R20 8J (SPORT)      		 12°51' +/-45' (12.85° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 12°52' +/-45' (12.87° +/-0.75°) 30' (0.50°) or less
      USK50L-TRTDKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)
      P275/55R20 8J (SPORT)      		 13°12' +/-45' (13.20° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 13°14' +/-45' (13.23° +/-0.75°) 30' (0.50°) or less
      USK55L-TRTDKA P255/70R18 8J (STD)
      P275/65R18 8J(OPT)
      P275/55R20 8J (SPORT)      		 12°53' +/-45' (12.89° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 12°55' +/-45' (12.91° +/-0.75°) 30' (0.50°) or less

      Standard steering axis inclination (unloaded vehicle):

      for Regular Cab of Long Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD STEERING AXIS INCLINATION - REGULAR CAB OF LONG DECK

      Vehicle Model Tire Size Steering Axis Inclination
      GSK51L-THADKA P255/70R18 8J (STD)
      P275/65R18 8J(OPT)      		 13°05' +/-45' (13.09° +/-0.75°) 30' (0.50°) or less
      P255/70R18 8J (MEXICO) 12°42' +/-45' (12.70° +/-0.75°) 30' (0.50°) or less
      UCK51L-THADKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 13°05' +/-45' (13.08° +/-0.75°) 30' (0.50°) or less
      P255/70R18 8J (MEXICO) 12°44' +/-45' (12.73° +/-0.75°) 30' (0.50°) or less
      UCK56L-THADKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 12°47' +/-45' (12.79° +/-0.75°) 30' (0.50°) or less
      P255/70R18 8J (MEXICO) 12°43' +/-45' (12.72° +/-0.75°) 30' (0.50°) or less
      USK51L-THTDKA P255/70R18 8J (STD)
      P275/65R18 8J(OPT)      		 13°07' +/-45' (13.12° +/-0.75°) 30' (0.50°) or less
      USK56L-THTDKA P255/70R18 8J(STD)
      P275/65R18 8J (OPT)      		 12°49' +/-45' (12.81° +/-0.75°) 30' (0.50°) or less

      Standard steering axis inclination (unloaded vehicle):

      for Double Cab of Standard Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD STEERING AXIS INCLINATION - DOUBLE CAB OF STANDARD DECK

      Vehicle Model Tire Size Steering Axis Inclination
      GSK51L-CRASKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 12°56' +/-45' (12.94° +/-0.75°) 30' (0.50°) or less
      UCK51L-CRASKA P255/70R18 8J (STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 12°58' +/-45' (12.96° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 13°01' +/-45' (13.01° +/-0.75°) 30' (0.50°) or less
      UCK51L-CRALKA P275/65R18 8J (STD)
      P275/55R20 8J (OPT)      		 12°57' +/-45' (12.95° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 12°59' +/-45' (12.99° +/-0.75°) 30' (0.50°) or less
      UCK56L-CRASKA P255/70R18 8J(STD)
      P275/65R18 8J (OPT)
      P275/55R20 8J (SPORT)      		 12°43' +/-45' (12.71° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 12°44' +/-45' (12.74° +/-0.75°) 30' (0.50°) or less
      UCK56L-CRALKA P275/65R18 8J (STD)
      P275/55R20 8J (OPT)      		 12°41' +/-45' (12.69° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 12°44' +/-45' (12.73° +/-0.75°) 30' (0.50°) or less
      USK51L-CRTSKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)
      P275/55R20 8J (SPORT)      		 12°59' +/-45' (12.98° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 13°01' +/-45' (13.02° +/-0.75°) 30' (0.50°) or less
      USK51L-CRTLKA P275/65R18 8J(STD)
      P275/65R18 8J (OFF-ROAD)      		 12°58' +/-45' (12.97° +/-0.75°) 30' (0.50°) or less
      P275/55R20 8J (OPT) 13°01' +/-45' (13.02° +/-0.75°) 30' (0.50°) or less
      USK56L-CRTSKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)
      P275/55R20 8J (SPORT)      		 12°43' +/-45' (12.71° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 12°44' +/-45' (12.74° +/-0.75°) 30' (0.50°) or less
      USK56L-CRTLKA P275/65R18 8J(STD)
      P275/55R20 8J (OPT)      		 12°43' +/-45' (12.71° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 12°44' +/-45' (12.74° +/-0.75°) 30' (0.50°) or less

      Standard steering axis inclination (unloaded vehicle):

      for Double Cab of Long Deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD STEERING AXIS INCLINATION - DOUBLE CAB OF LONG DECK

      Vehicle Model Tire Size Steering Axis Inclination
      UCK52L-CHASKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 12°58' +/-45' (12.97° +/-0.75°) 30' (0.50°) or less
      UCK57L-CHASKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 12°42' +/-45' (12.70° +/-0.75°) 30' (0.50°) or less
      USK52L-CHTSKA P255/70R18 8J(STD)
      P275/65R18 8J (OPT)      		 12°59' +/-45' (12.98° +/-0.75°) 30' (0.50°) or less
      USK57L-CHTSKA P255/70R18 8J(STD)
      P275/65R18 8J(OPT)      		 12°41' +/-45' (12.69° +/-0.75°) 30' (0.50°) or less

      Standard steering axis inclination (unloaded vehicle):

      for CrewMax of standard deck

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      STANDARD STEERING AXIS INCLINATION - CREWMAX OF STANDARD DECK

      Vehicle Model Tire Size Steering Axis Inclination
      UCK51L-PSASKA P255/70R18 8J(STD)
      P255/70R18 8J(STD and MEXICO)
      P275/65R18 8J(STD)
      P275/55R20 8J (SPORT)      		 13°00' +/-45' (13.00° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 13°01' +/-45' (13.02° +/-0.75°) 30' (0.50°) or less
      UCK51L-PSALKA P275/65R18 8J(STD)
      P275/55R20 8J (STD)      		 12°59' +/-45' (12.98° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 13°01' +/-45' (13.01° +/-0.75°) 30' (0.50°) or less
      UCK56L-PSASKA P255/70R18 8J (STD)
      P255/70R18 8J(STD and MEXICO)
      P275/65R18 8J (STD)
      P275/55R20 8J (SPORT)      		 12°45' +/-45' (12.75° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 12°46' +/-45' (12.77° +/-0.75°) 30' (0.50°) or less
      UCK56L-PSALKA P275/65R18 8J(STD)
      P275/55R20 8J (STD)      		 12°44' +/-45' (12.74° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 12°46' +/-45' (12.77° +/-0.75°) 30' (0.50°) or less
      USK51L-PSTSKA P255/70R18 8J(STD)
      P275/65R18 8J (STD)
      P275/55R20 8J (SPORT)      		 13°01' +/-45' (13.01° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 13°02' +/-45' (13.03° +/-0.75°) 30' (0.50°) or less
      USK51L-PSTLKA P275/65R18 8J(STD)
      P275/55R20 8J (STD)      		 13°01' +/-45' (13.01° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 13°02' +/-45' (13.03° +/-0.75°) 30' (0.50°) or less
      USK56L-PSTSKA P255/70R18 8J(STD)
      P275/65R18 8J(STD)
      P275/55R20 8J (SPORT)      		 12°44' +/-45' (12.74° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 12°46' +/-45' (12.77° +/-0.75°) 30' (0.50°) or less
      USK56L-PSTLKA P275/65R18 8J (STD)
      P275/55R20 8J (STD)      		 12°44' +/-45' (12.73° +/-0.75°) 30' (0.50°) or less
      P275/65R18 8J (OFF-ROAD) 12°46' +/-45' (12.76° +/-0.75°) 30' (0.50°) or less
  7. ADJUST CAMBER AND CASTER

    HINT:

    After the camber has been adjusted, inspect the toe-in.

    1. Loosen the toe adjusting cam bolt and camber adjusting cam nut.
    2. Turn the toe adjusting cam and camber adjusting cam in both directions, and adjust the camber and caster to the center value.

      HINT:

      The camber and caster should be as close as possible to the center value.

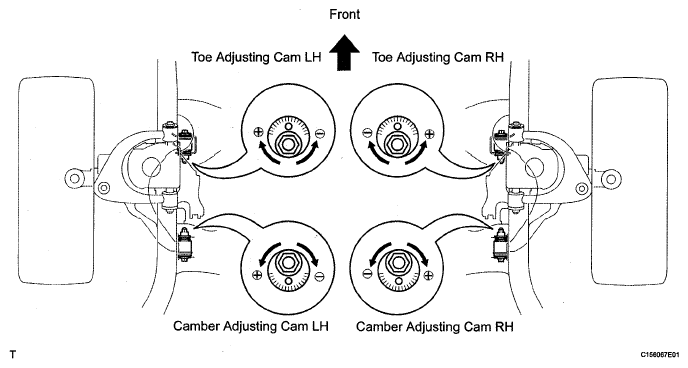

      Fig 5: Turning Toe Adjusting Cam And Camber Adjusting Cam In Both Directions
      G05159565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Read the adjustment chart (example).

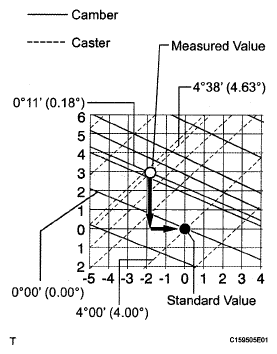

      Fig 6: Adjusting Front and/ or Rear Adjusting Cams
      G05159566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Find the wheel alignment standard value applicable for the particular model.
      2. Mark the selected standard value on the adjustment chart.

        Standard value (reference)

        STANDARD VALUE CAMBER CASTER REFERENCE

        Camber Caster
        0°00' (0.00°) 4°00' (4.00°)
      3. Mark the alignment value measured when the vehicle is unloaded on the adjustment chart.

        Measured value (reference)

        MEASURED VALUE CAMBER CASTER REFERENCE

        Camber Caster
        0°11'(0.18°) 4°38' (4.63°)
      4. As shown in the chart, read the distance from the marked point to 0, and adjust the front and/ or rear adjusting cams accordingly.

        Amount to turn adjusting cams (by gradation)

        TOE ADJUSTING CAM

        Toe adjusting cam Camber adjusting cam
        -3.0 +2.0

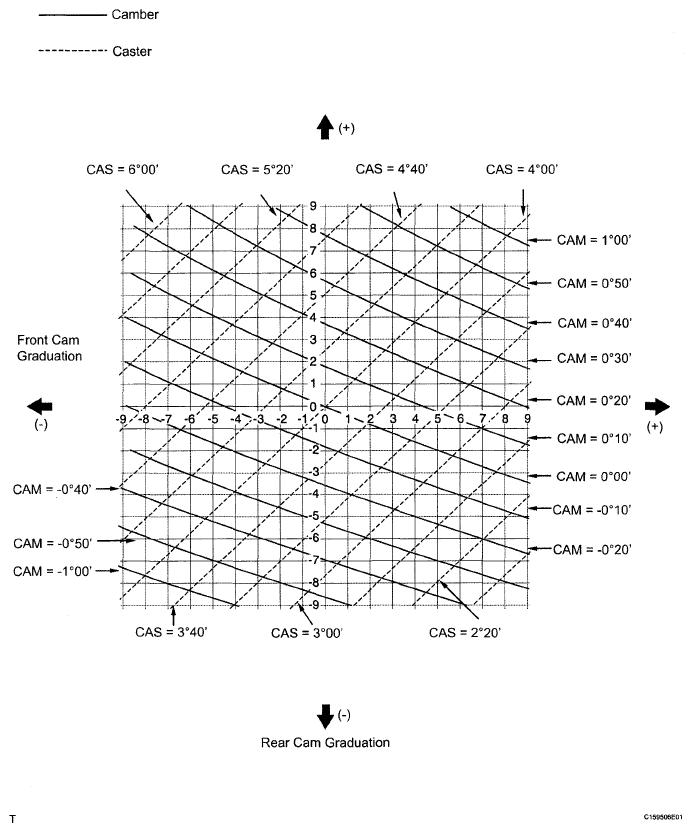

        Fig 7: Adjusting Front and/ or Rear Adjusting Cams
        G05159567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
