Front Shock Absorber: Components

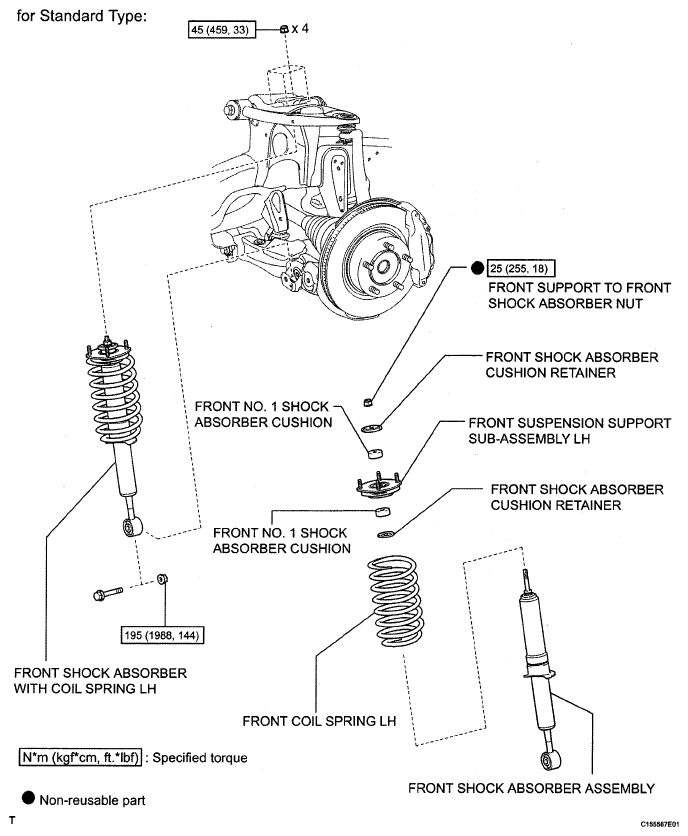

Fig 1: Identifying Front Shock Absorber Replacement Components With Torque Specifications (1 Of 2)
G05159568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

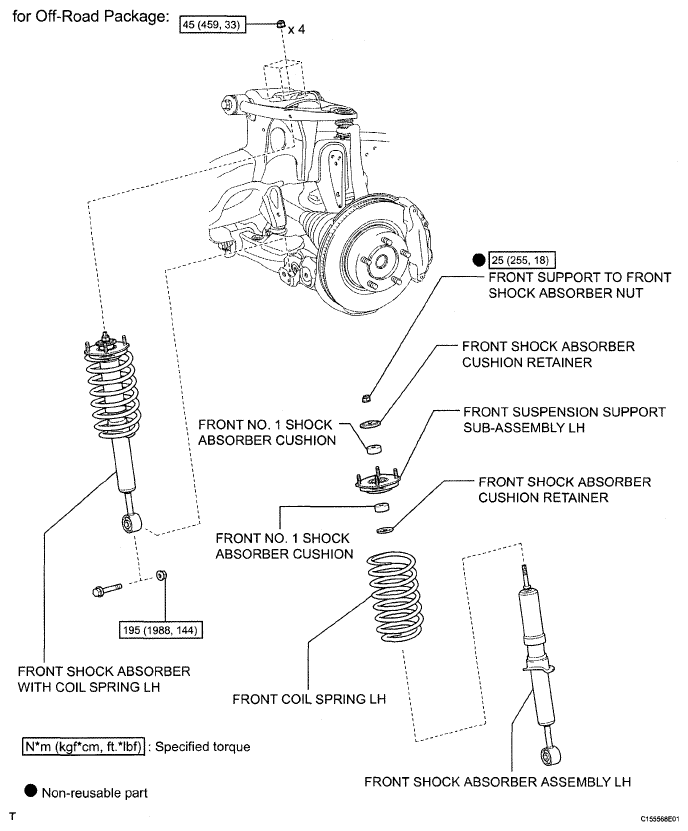

Fig 2: Identifying Front Shock Absorber Replacement Components With Torque Specifications (2 Of 2)
G05159569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
