Front Seat Inner Belt Assembly: Inspection

  1. INSPECT FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      FRONT SEAT INNER BELT ASSEMBLY (FOR DRIVER SIDE) TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      A1 - B2 Always Below 1 Ω
      A2-B4

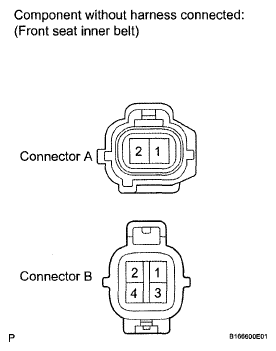

      Fig 1: Identifying Front Seat Inner Belt Connector Terminals
      G05160425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the result is not as specified, replace the inner belt assembly.
