Ignition Coil And Spark Plug: Components

Fig 1: Ignition Coil And Spark Plug Component Replacement And Torque Specification (1 Of 2)
G05157885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

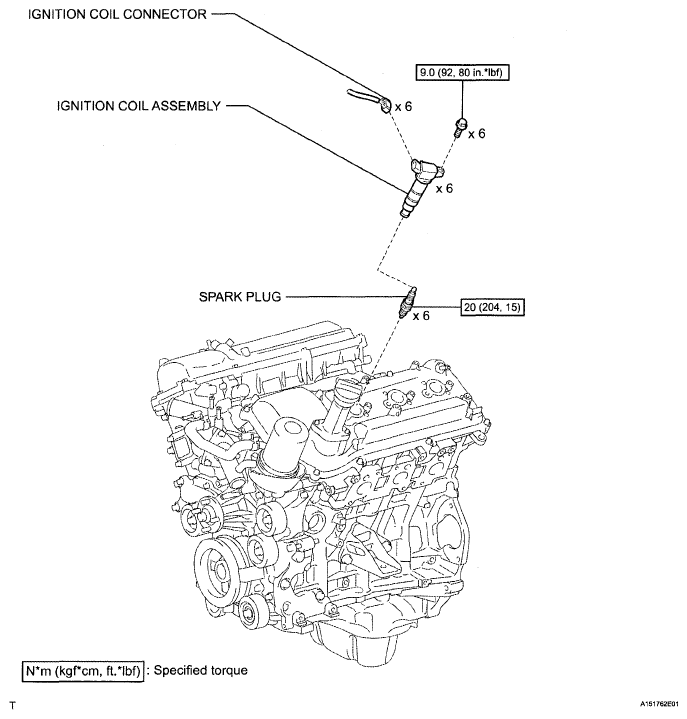

Fig 2: Ignition Coil And Spark Plug Component Replacement And Torque Specification (2 Of 2)
G05157886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
