Fuel Tank: Components

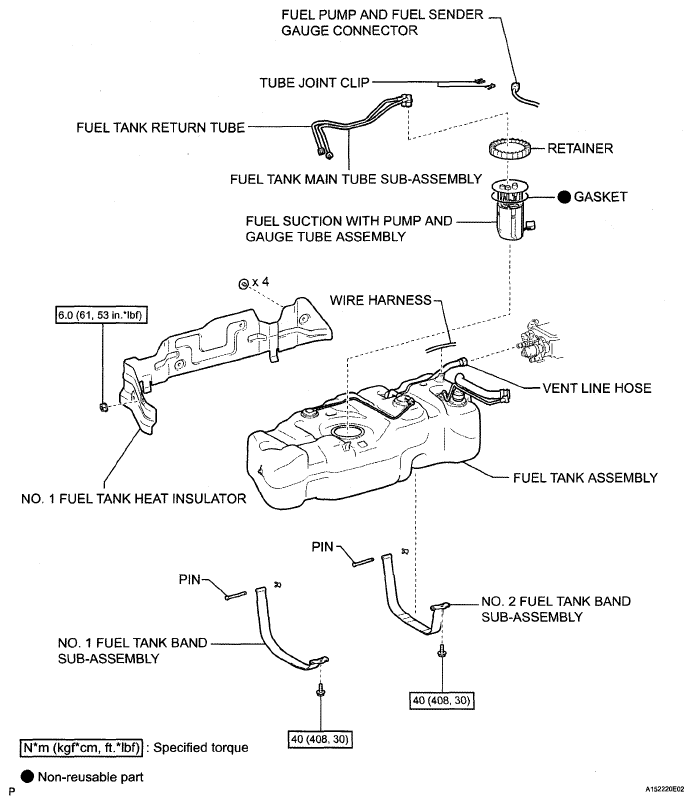

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (1 Of 2)
G05151947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Fuel Tank Replacement Components With Torque Specification (2 Of 2)
G05151922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
