System Diagram

  1. FUEL FLOW DIAGRAM

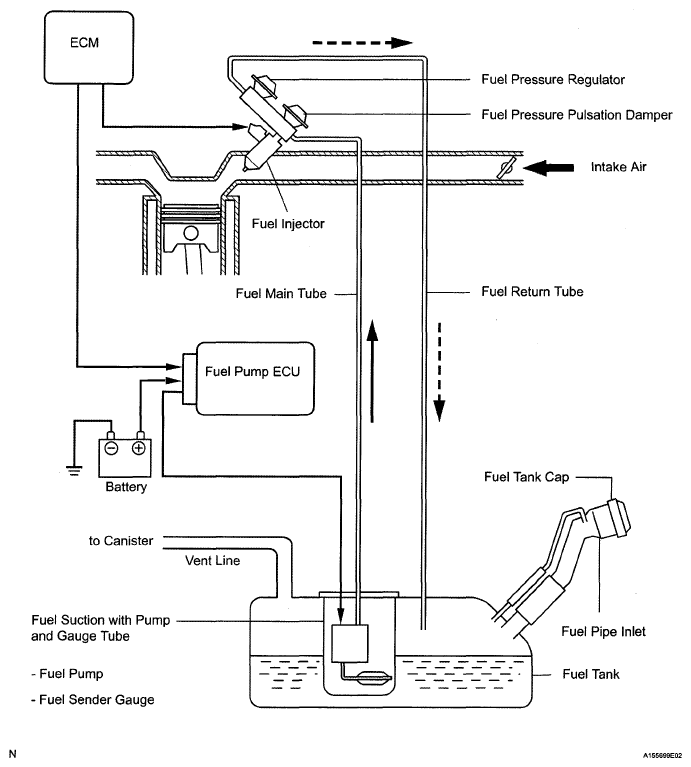

    Fig 1: Fuel Flow Diagram
    G05151883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ELECTRICAL CONTROL DIAGRAM

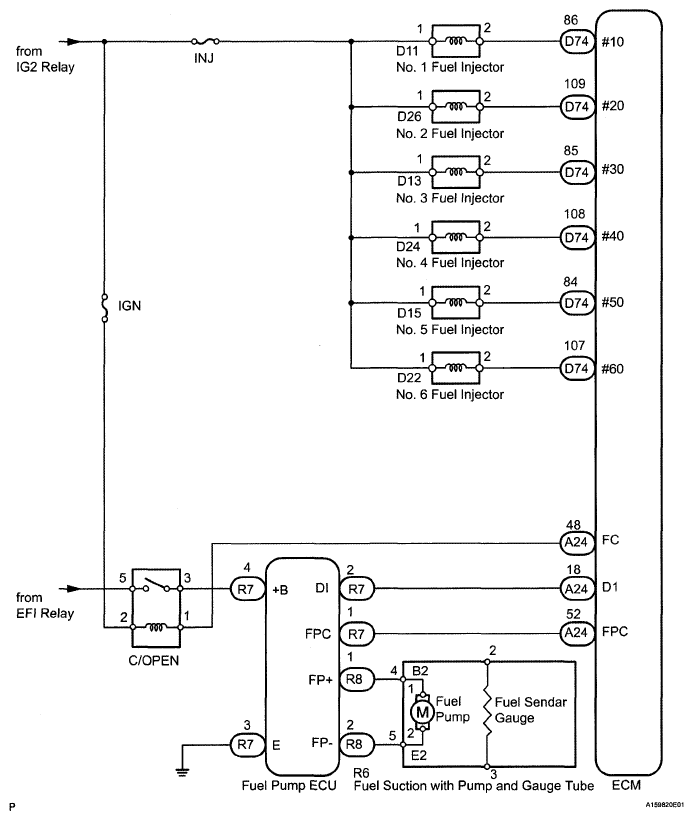

    Fig 2: Fuel System Electrical Control Diagram
    G05151884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
