Fuel Pump: Components

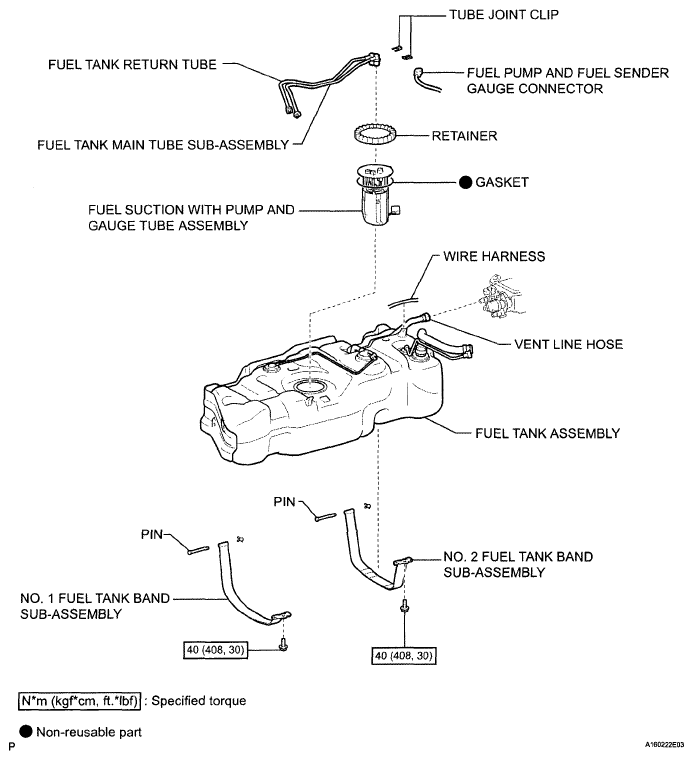

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specifications (1 Of 3)
G05151921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

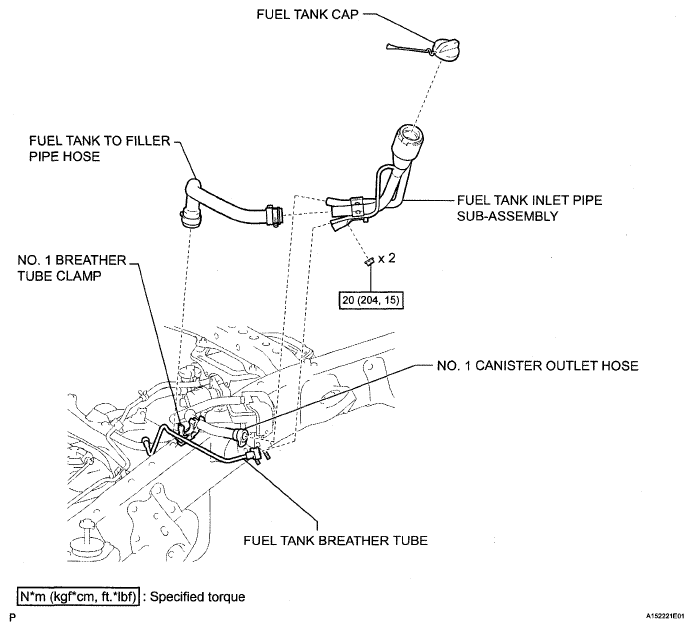

Fig 2: Identifying Fuel Pump Replacement Components With Torque Specification (2 Of 3)
G05151922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

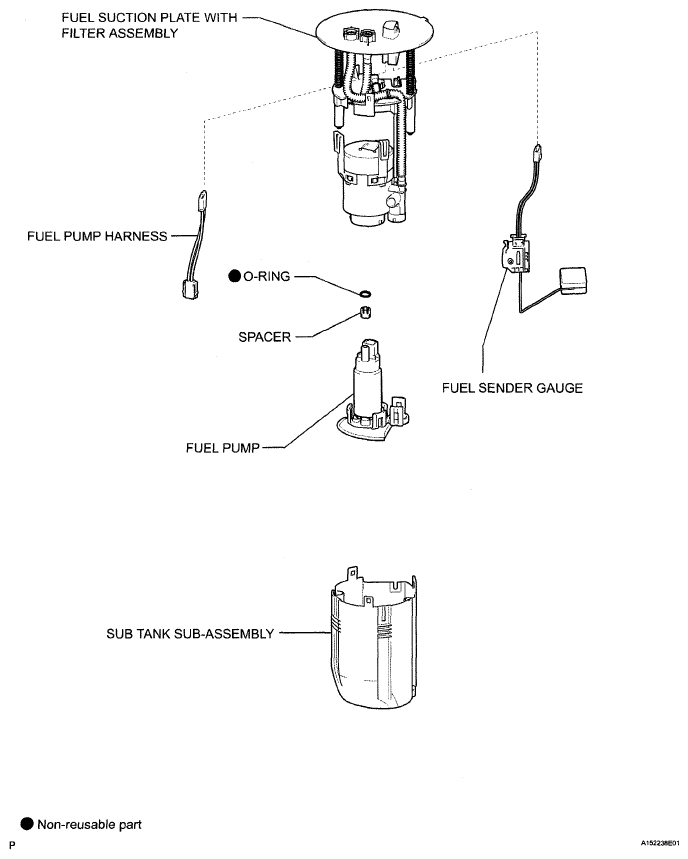

Fig 3: Identifying Fuel Pump Replacement Components (3 Of 3)
G05151923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
