Fuel Pressure Regulator: Components

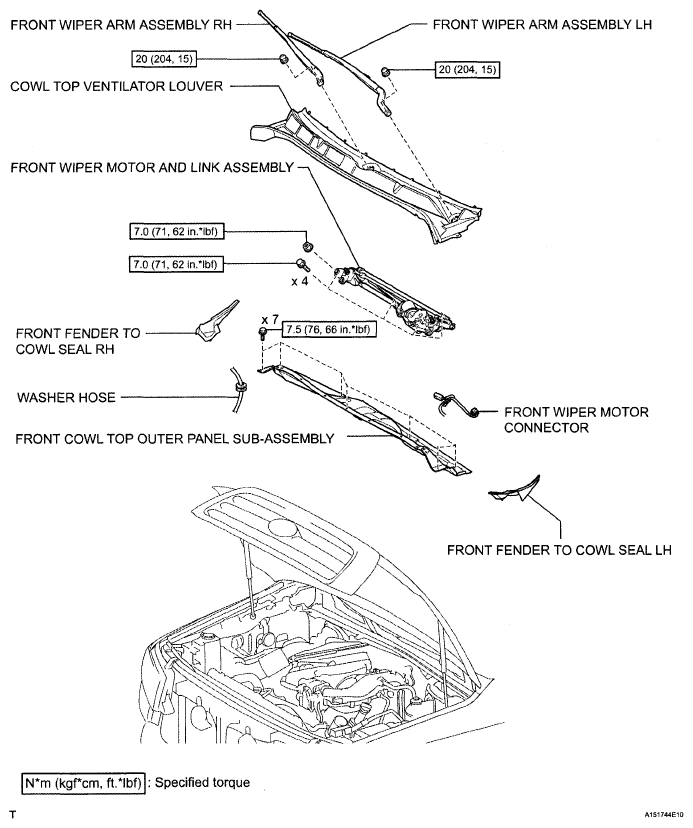

Fig 1: Identifying Fuel Pressure Regulator Replacement Components With Torque Specifications (1 Of 4)
G05151909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

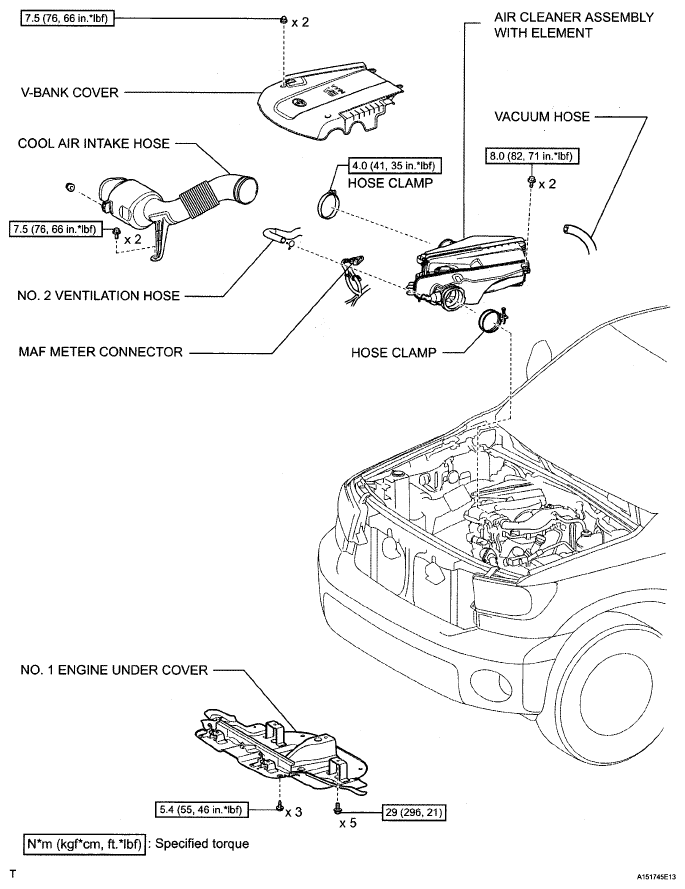

Fig 2: Identifying Fuel Pressure Regulator Replacement Components With Torque Specifications (2 Of 4)
G05151910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

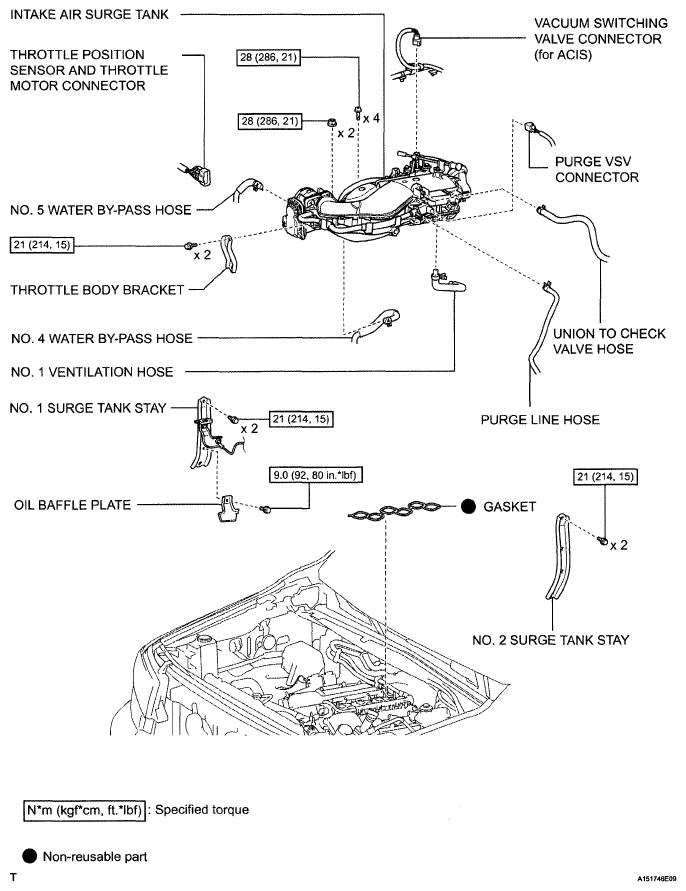

Fig 3: Identifying Fuel Pressure Regulator Replacement Components With Torque Specifications (3 Of 4)
G05151911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

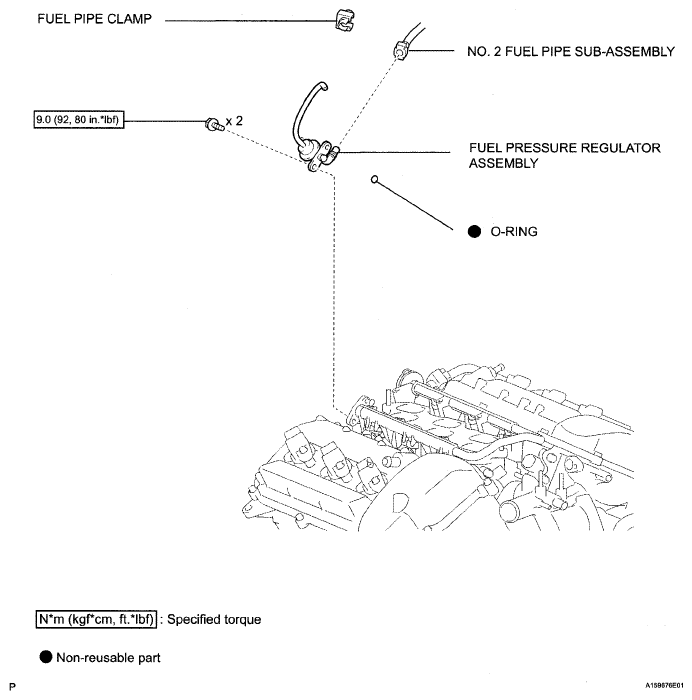

Fig 4: Identifying Fuel Pressure Regulator Replacement Components With Torque Specification (4 Of 4)
G05151912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
